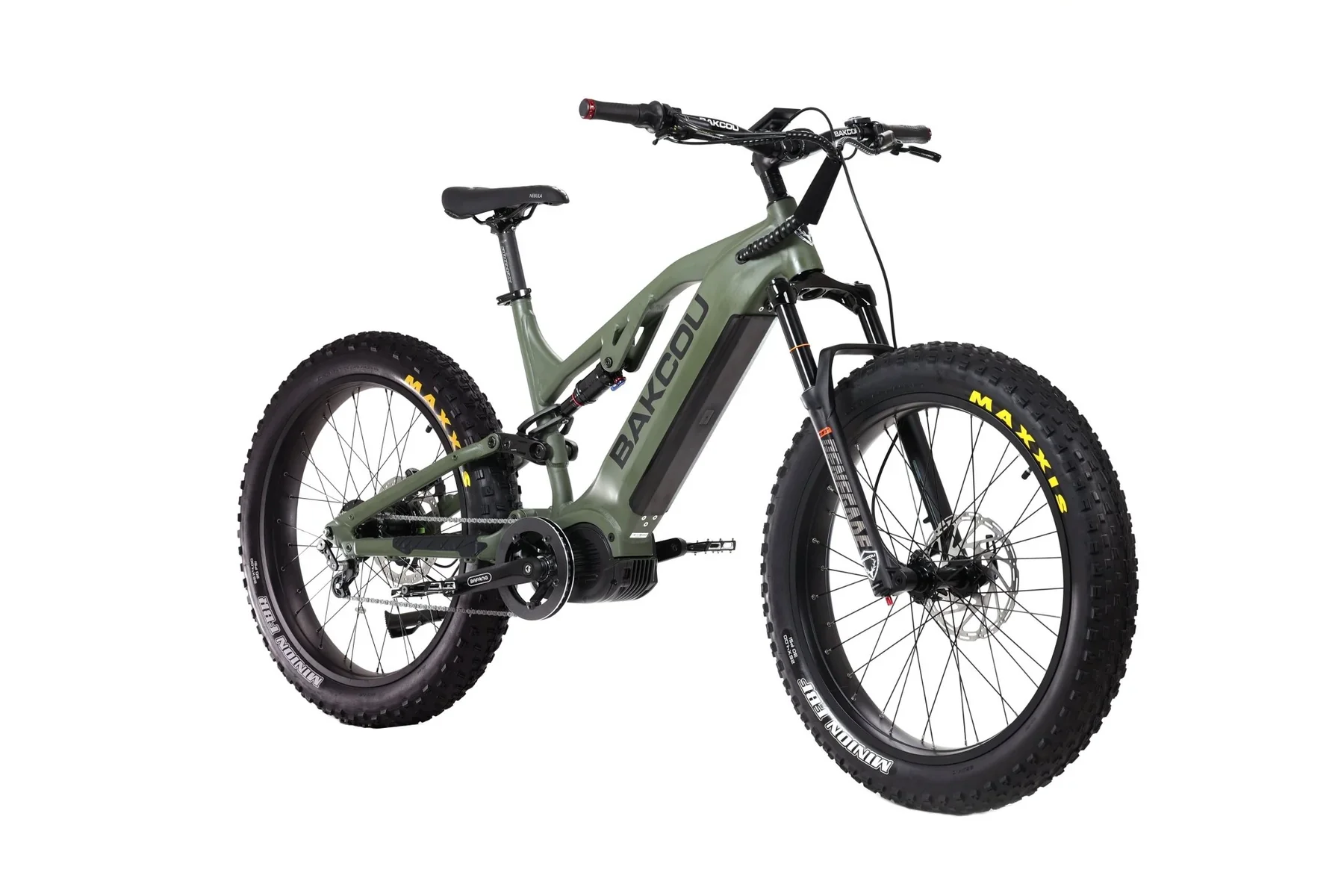

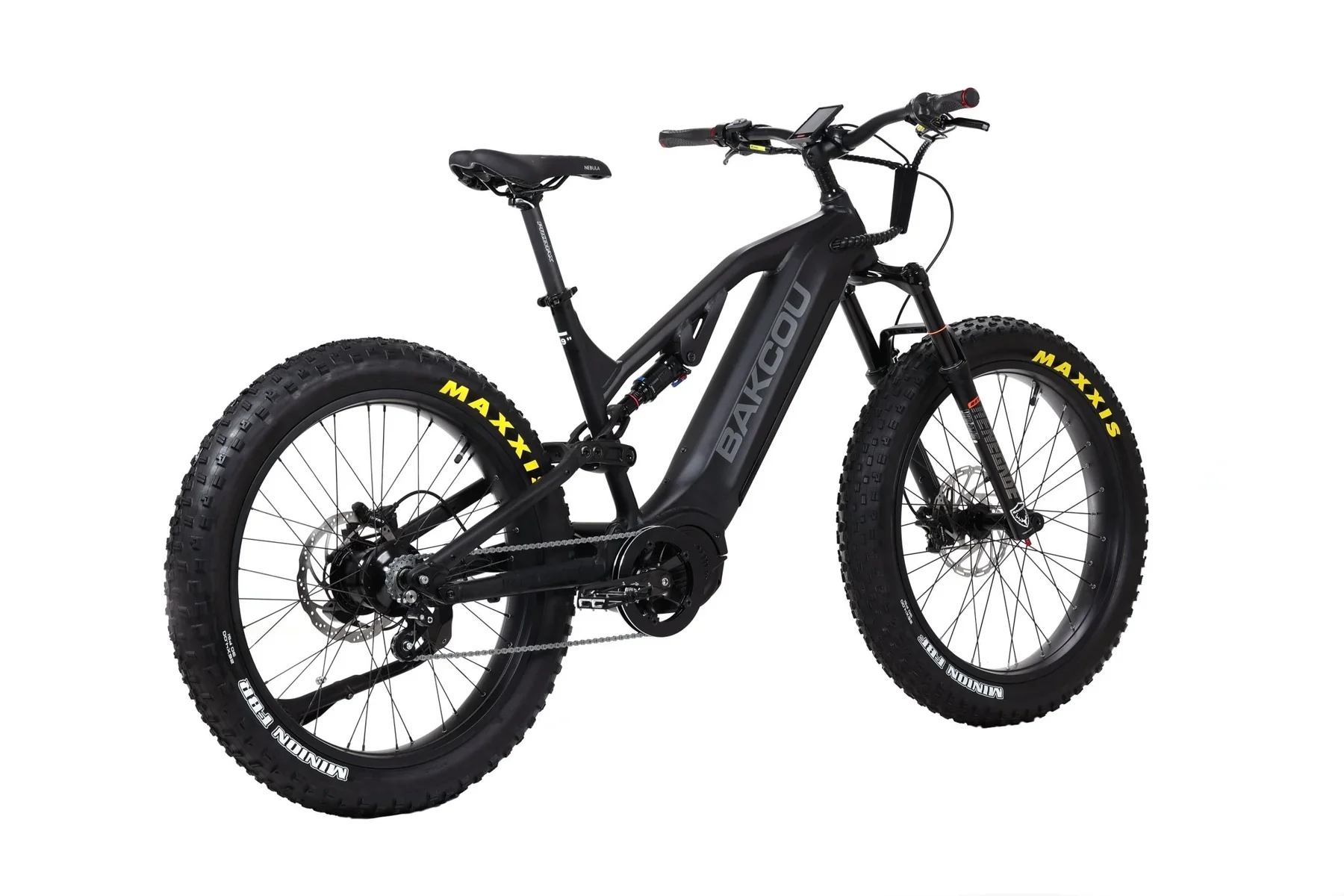

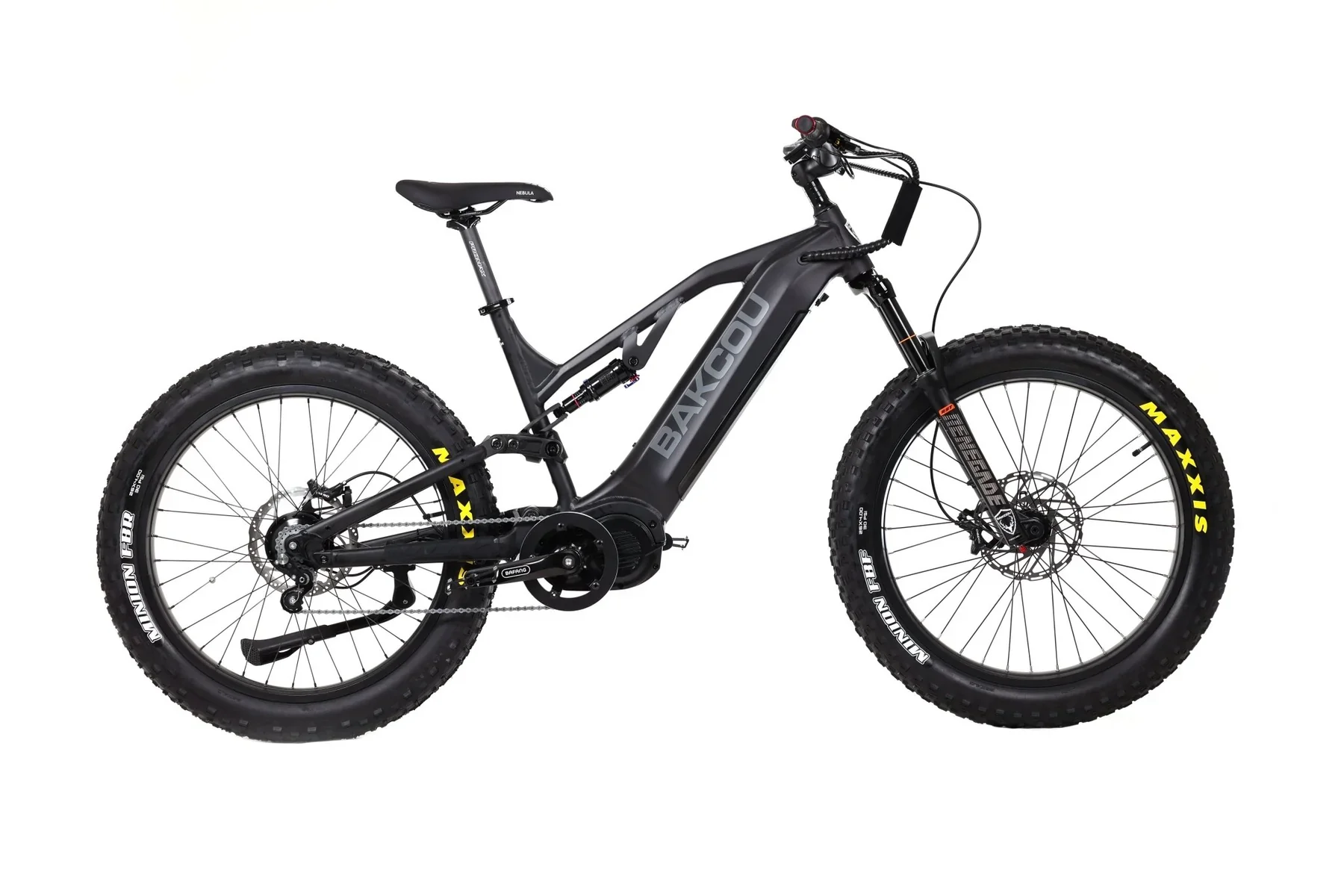

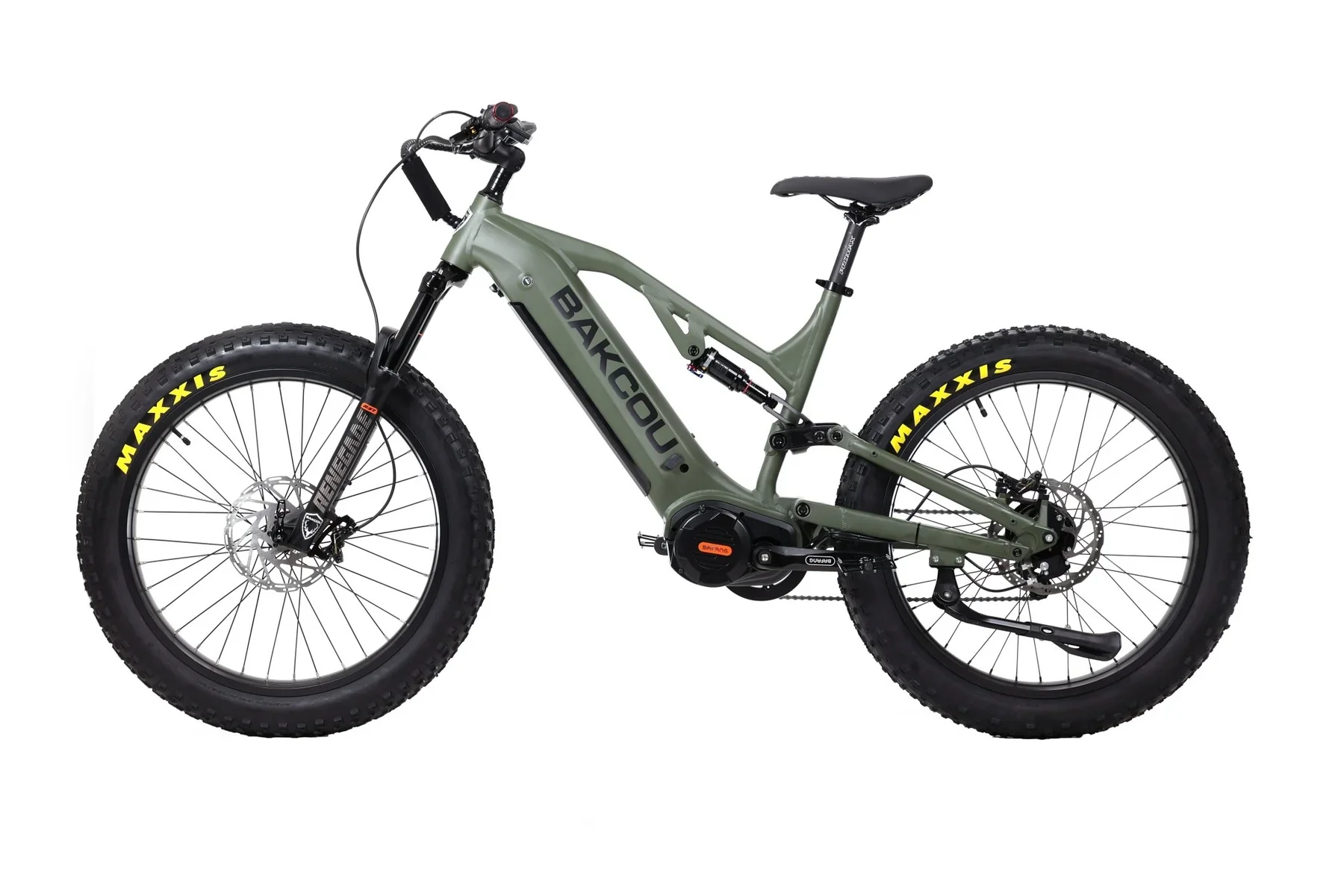

Bakcou Scout Jager

Bakcou's first full-suspension fat-tire eBike built for sport riding, redefined. The Scout Jäger is built around a Rohloff internal speed hub, offering all the capabilities of a Scout PLUS an increased gear ratio for enhanced climbing and the comfort of an internalized gearing system.

With its unique geometry and top-of-the-line suspension, the Scout Jäger stands out as the perfect crossover sport trail bike. The fat tires provide superior traction, allowing the Scout Jäger to tackle mountain terrain with ease.

The Scout Jäger features an integrated 21ah battery and improved cable housing, amplifying your ride. It boasts a remarkable 14-speed gear ratio within the Rohloff hub, protected from rugged, rocky terrain elements, ensuring you can go wherever your trail leads.

Designed around the unparalleled power and performance of Bafang's ULTRA mid-drive motor, the full-suspension Scout Jäger is built to handle the torque and power without causing frame flex under intense loads. The all-metal, heavy-duty gearing of the ULTRA motor, combined with the intelligence of an integrated torque sensor, makes it the most capable, durable, and efficient fat-tire eBike motor on the planet. Finally, there's a full-suspension fat tire electric bike that can handle it.

The ULTRA motor is considered a smart motor, with speed, cadence, shift, brake, and torque sensors working together to provide continuous feedback from the rider to the motor, delivering exactly what you ask for. The result is a natural-feeling ride with immense torque and power output.

Built for trail riding in steep, rugged terrain, the all-new Scout Jäger from Bakcou takes your adventures to the next level. Be among the first to ride the all-new Bakcou Scout Jäger today!



Features

TOP FEATURES

Class Mode
1,2, or 3

Mid-Drive
Motor

Up To
65 Miles

Battery
21 Ah





Specifications

Specs

FRAME SET

• FRAME
  High Grade Aluminum Alloy 6061
• FORK
  RST Renegade Air Fork (120mm of travel)
• SIZE
  19” (Large - 5'10 & taller)



DRIVE TRAIN

• SHIFTER
  Sram NX
• REAR DERAILLEUR
  Sram NX 11 Speed
• CRANK
  Lasco EB11
• CASSETTE
  Sram NX Cassette
• CHAIN
  KMC eBike Heavy Duty
• CHAIN RING
  130mm 40t with Aluminum Chain Guard



WHEELS

• WHEELS
  150mm Thru Axle Front Hub/ Rear Hub 3/8x 26 tpi 190mm
• TIRES
  Maxxis Minion 26” X 4.0



E SYSTEM

• BATTERY
  48 Volt Lithium-Ion
  - 21 Amp Hours / 1008 Watt Hours



COMPONENTS

• SADDLE
  SR Selle Royal Saddle
• SEAT POST
  30.9mm Promax Large Frame
  31.6mm Promax Medium Frame
• HANDLEBAR
  Bakcou Aluminum
• STEM
  ProMax 90mm
• BRAKE
  Tektro HD E750 Quad Piston Hydraulic
• ROTOR
  203mm Front & 203mm Rear



WEIGHT

• WITHOUT BATTERY
  71 lbs
• BATTERIES
  21Ah= 10lbs 11oz



Manual

User Manual & Assembly Instructions

2024 Bakcou Owner's Manual

Scout Assembly Instructions
