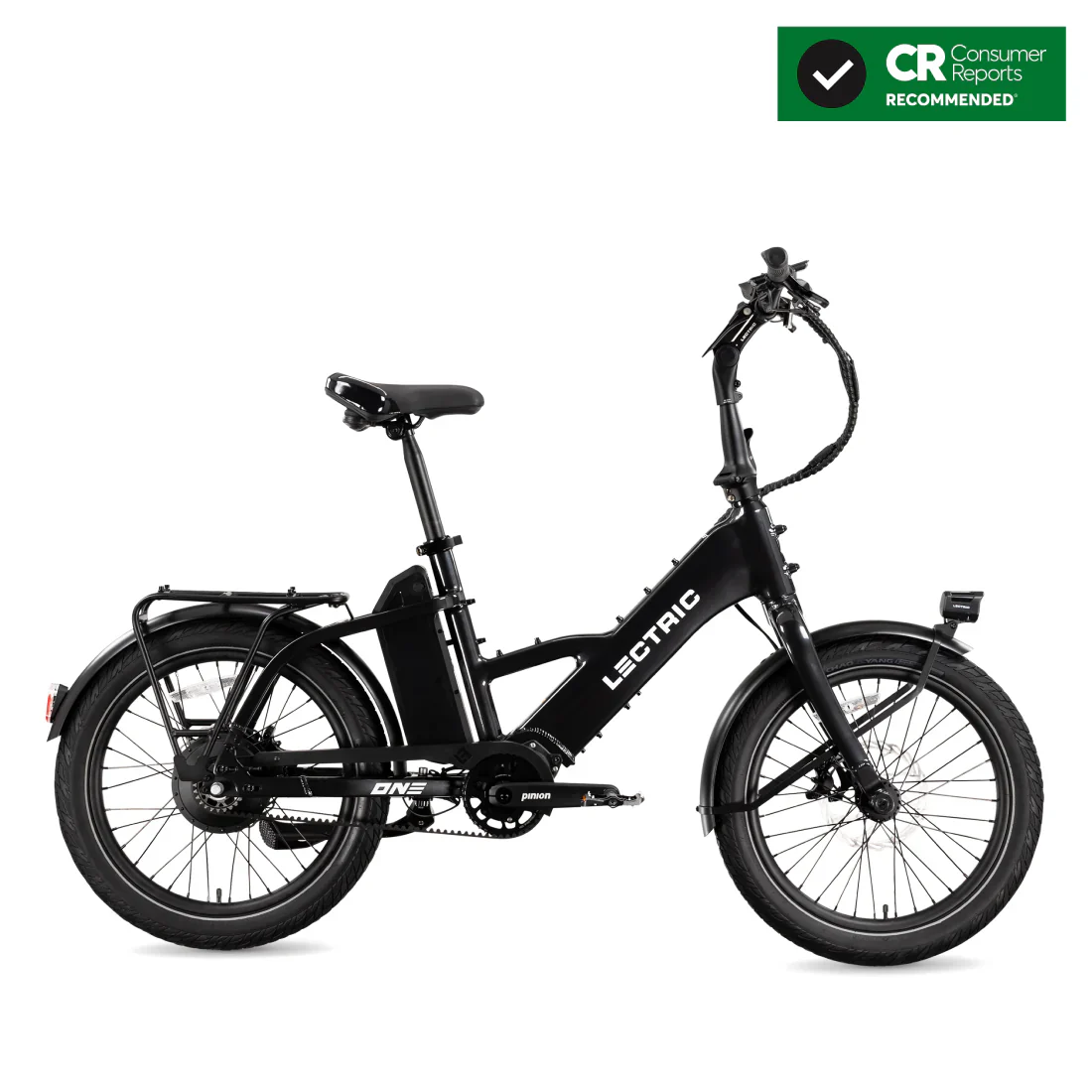

Lectric ONE Long-Range eBike
Lectric ONE Long-Range eBike
Electric Belt Drive Commuter Bike
For Lectric eBikes products, we are no longer able to sell them online. They are only available for purchase in person at our warehouse.
eBike Overview
The Lectric ONE is the pinnacle of innovation, blending cutting-edge design with premium automotive-grade technology to redefine what a commuter eBike can be. At its core, the precision-engineered Pinion smart gearbox pairs seamlessly with the virtually maintenance-free Gates Carbon Drive Belt, delivering effortless, automatic shifting and an ultra-smooth ride.
Its sleek aerodynamic frame, color LCD display, and high-efficiency city tires elevate performance, while hydraulic disc brakes, brake-responsive taillights, and reflective detailing maximize safety. Proudly named 2024’s Best Value Commuter by Bicycling Magazine.
Behind the Design: Lectric ONE
The Lectric ONE is built for those who seek simplicity and award-winning design, featuring high end components from industry-leading automotive companies that allow you to commute with ease. Join us as we cover the comprehensive design process on our new eBike and see why Bicycling Magazine selected the Lectric ONE as 2024's Best Value Commuter.
TOP SPEED
28 mph
RANGE
up to 60 miles
PAYLOAD CAPACITY
330 lbs
MOTOR POWER
1310W peak
PINION GEARBOX
Semi-Automatic Shifting
TOOL-FREE ASSEMBLY
Yes
⚠ Disclaimer: Must be 16 years of age or older to ride.
Features
Features

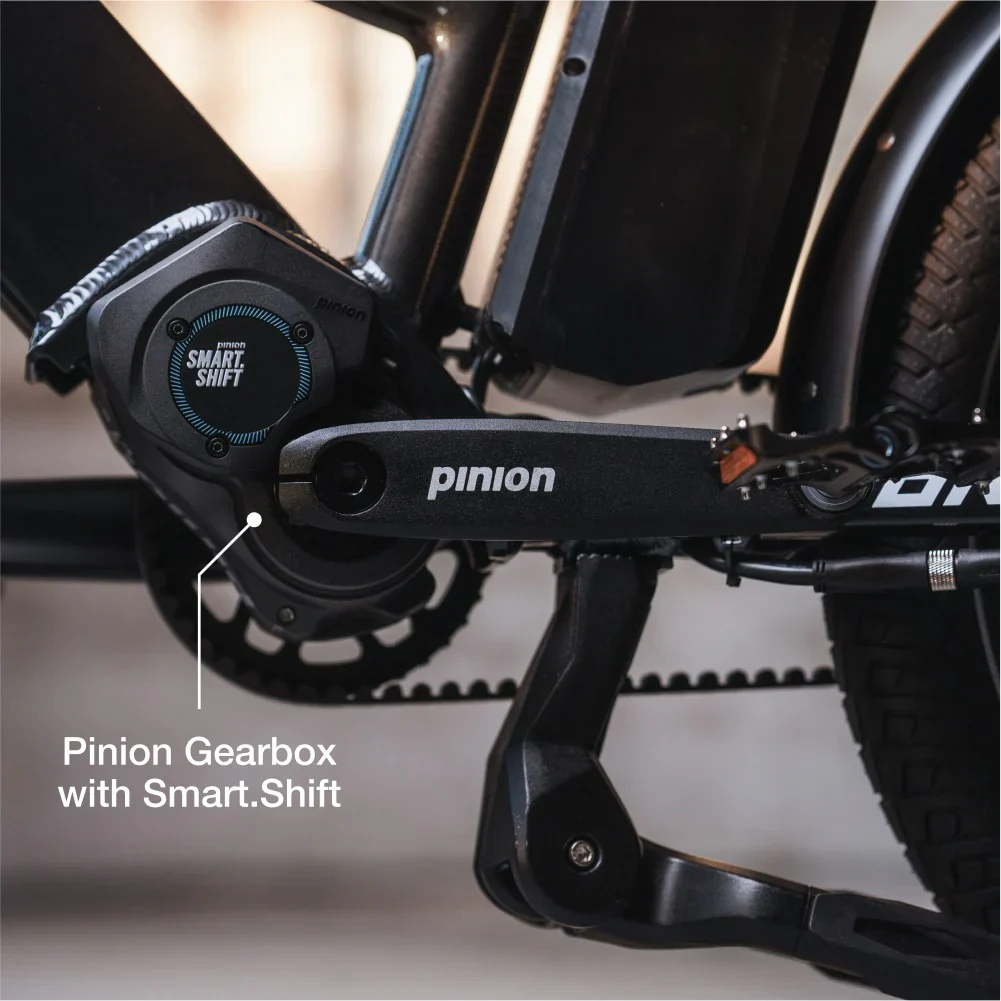

Pinion Gearbox with Smart.Shift
The enclosed gearbox is weather-sealed and easily paired with the Pinion Smart.Shift app, allowing riders to pre-select gears for effortless auto-shifts.
Gates Carbon Drive Belt System
This automotive-grade belt is carbon fiber-reinforced and nearly maintenance-free providing a chainless drivetrain that's clean, quiet, smooth, and strong.

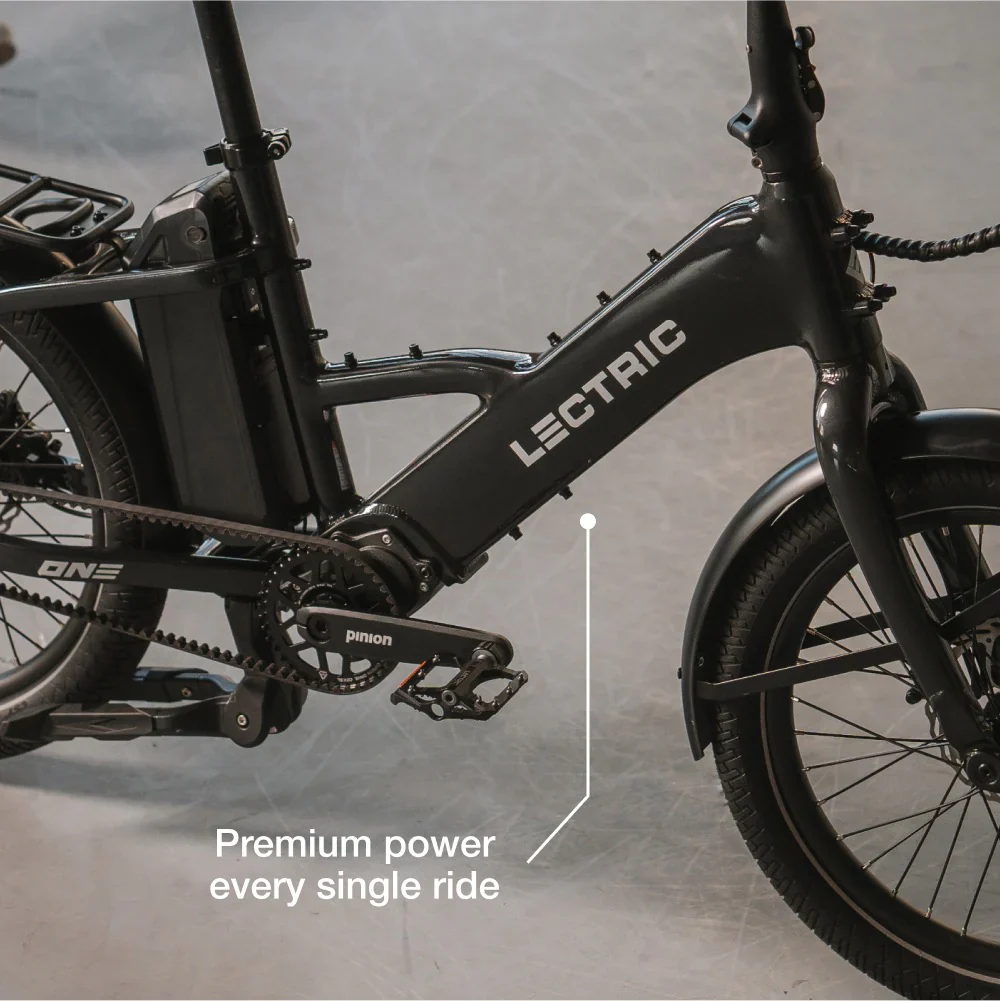

Impressive Power
Sutto motor with 1310W of peak power combined with our new Stealth M24 technology delivers a 400% quieter motor* built for the long haul with a 48V, 14Ah (672 Wh) Lithium-Ion battery certified to UL 2271. The Lectric ONE is also certified to UL 2849.
New Color LCD Display
An all-new color display featuring a USB-A port adds an aesthetic look while offering clear and concise information.
Size Guide
Size Guide
Bike Dimensions 63"L x 16"W x 44"H
Bike Dimensions with Front Tire removed 58"L x 16"W x 34"H
Stand Over Height 18.5"
Handlebar Height 40"
Bike Weight 48 lbs w/o battery.
Bike Weight with Front Tire removed 50 lbs.
Payload Capacity Max: 330 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Rack Weight 20 lbs, Max Rear Rack Weight 30 lbs.
Rider Payload Capacity Max: 330 lbs.
Seat to Ground Min: 31” / Max: 39.5”
Handlebar Width 26"
Rider Height 5’2” - 6’4”
Handlebar Reach 20” - 24”
Specifications
Specifications
Pedal-Assist
Five levels of pedal-assist and an ergonomic thumb throttle deliver the speed and power to own the road as a Class 1, 2, or 3 eBike.**

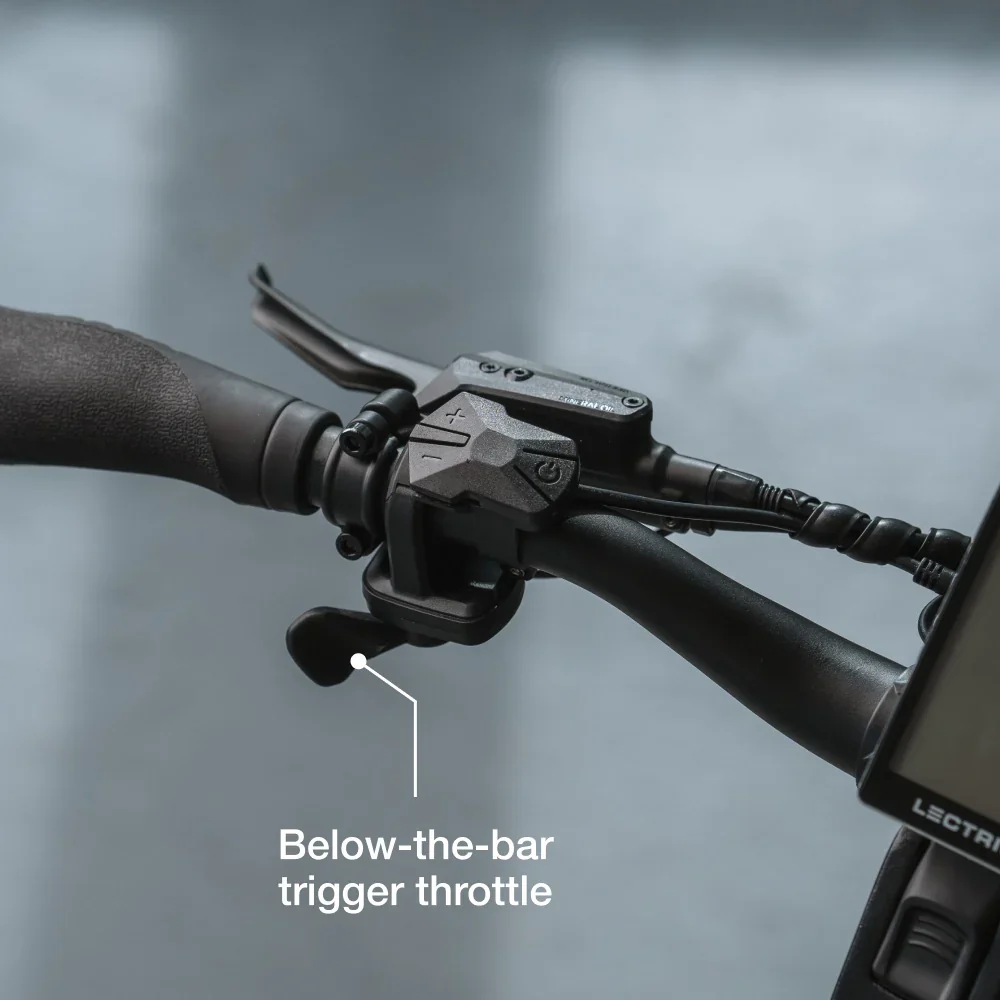

Thumb Throttle
An ergonomic below-the-bar trigger throttle on the left hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue.
Color LCD Display
A backlit, heads-up color LCD display with a USB-A port provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.
Motor Controller
24 amp controller is IP-65 rated and potted for weather proofing and thermal management.
Motor
A Sutto 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before. New Stealth M24 technology is 400% quieter*, delivering a hushed motor experience without sacrificing power.
Battery
Available with a Long-Range 48V 14ah (672 Wh) lithium-ion battery certified to UL 2271 to power your ride for up to 60 miles, respectively.†‡ The Lectric ONE is also certified to UL 2849.
Bike Weight
Total bike weight is 48lbs with the 7lb battery removed.
City Tires
20x2.5'' city tires featuring a reflective strip are equipped with 3mm Hippo Skin with an Aramid Floc Breaker. Shark Skin Protection on the sidewall offers pinch flat protection and all-weather reliability. Slime is installed to prevent flat tires at no additional cost.
Front Fork
This rigid fork is fully aluminum and ultra lightweight, featuring a thru axle dropout.
Thru Axle
The front wheel features a Thru Axle wheel attachment system for tool-free installation. This feature ensures a straight wheel, consistent brake rotor alignment, and handling stability. Remove the wheel in minutes for an easy and light-weight transport.
Pinion Gearbox
With the Pinion C1.6i six-speed sealed weatherproof gearbox, shifting is done at the touch of a button – quickly, ergonomically, and intuitively. The system shifts while riding, while stationary, and while under load.

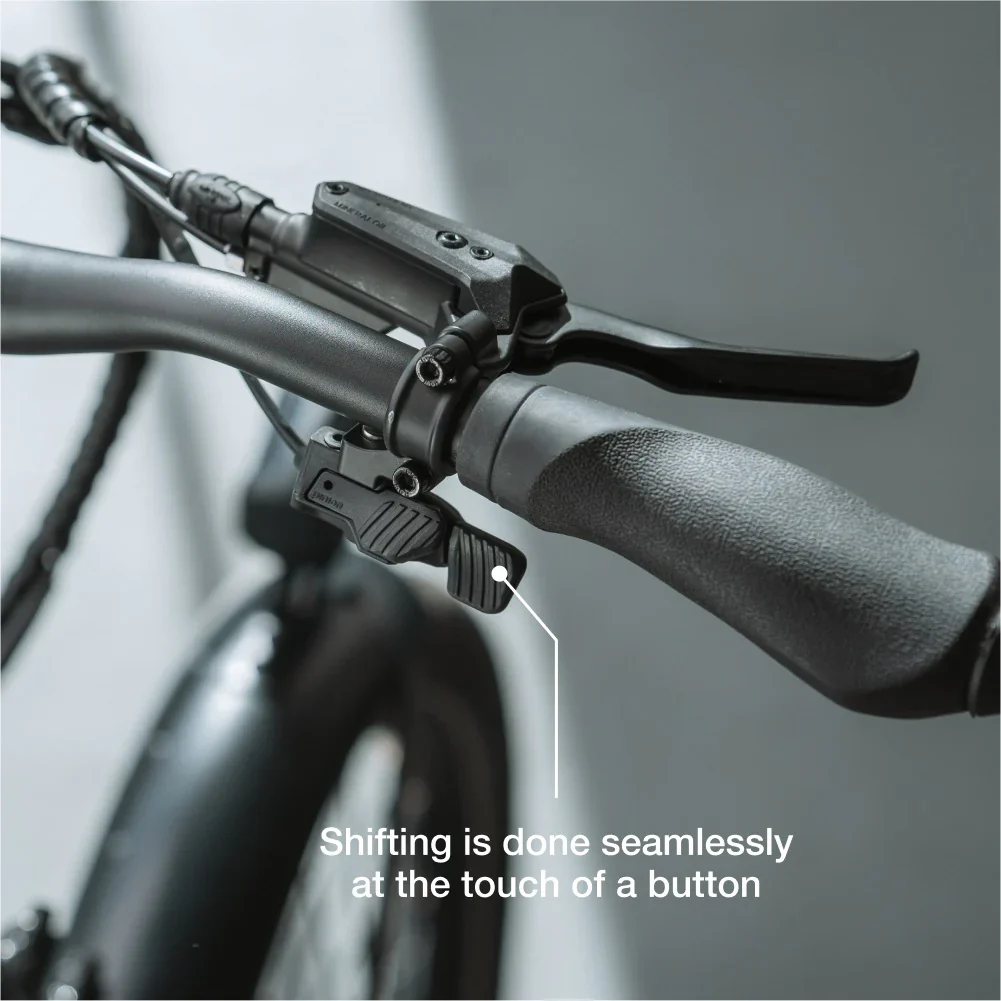

Pinion Smart.Shift App
All gearbox functions are combined in the Pinion Smart.Shift App, which can be easily paired and customized to suit your preferences. A pre-select feature automatically sets the rider's gears, allowing effortless auto-shifts, while a convenient start-select feature lets riders dictate their starting gear ahead of time, allowing for split-second starts.
Cranks
Pinion aluminum cranks are 165mm in length.

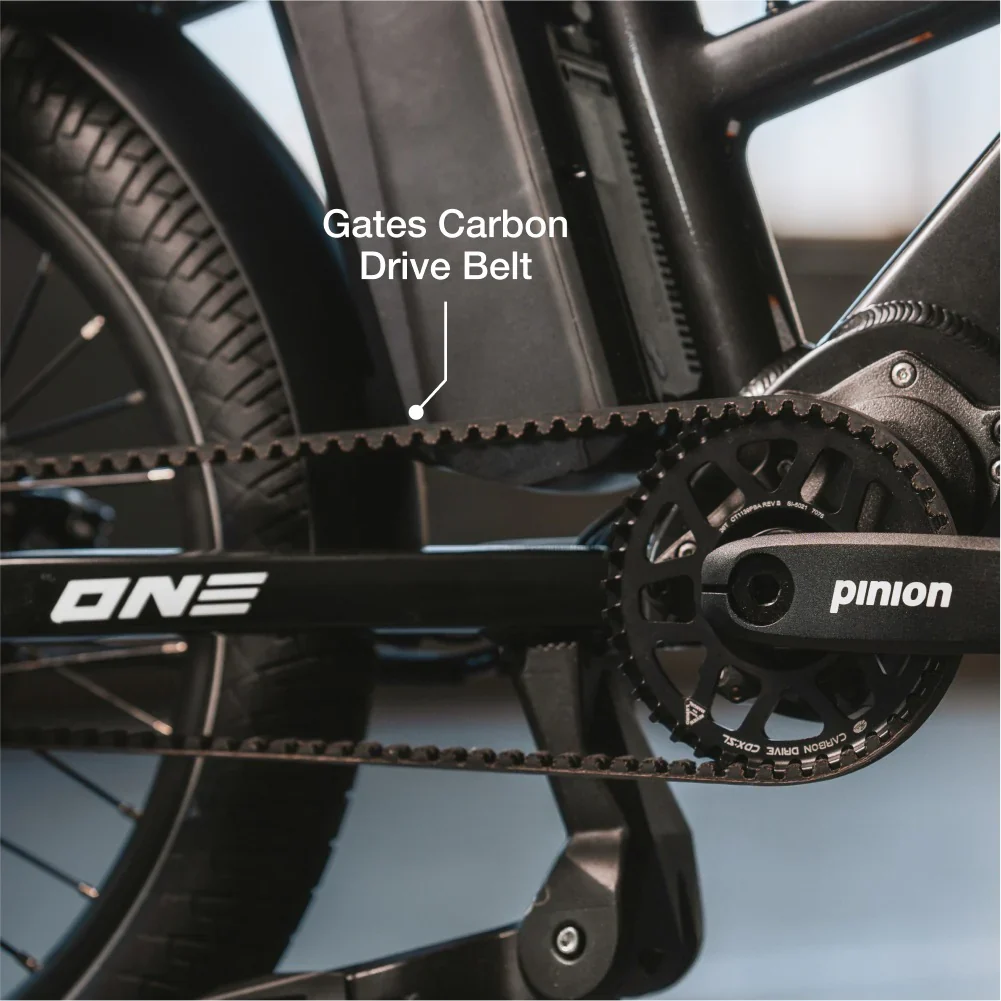

Belt Drive
Gates CDC 113-tooth Carbon Drive Belt System is lightweight and carbon fiber-reinforced. The belt’s performance is nearly maintenance-free while providing a chainless drivetrain that’s clean, quiet, smooth, and strong.
Gates Carbon Drive App
The Gates app is used to measure belt tension sonically. The belt can be plucked like a guitar string while the app uses the microphone on a mobile device to read the vibration frequency and compares it to a chart to determine if any adjustments are needed.
Belt Cogs
A Gates CDC 24-tooth steel rear belt cog is paired with an aluminum CDX 39-tooth front cog providing a ratio-optimized performance to accommodate a wide range of speeds.
Brakes
Hydraulic mineral oil brakes and 180mm rotors (1.8mm thick) offer ultimate stopping power and peace of mind in wet or dry conditions.
Lectric PWR™
Lectric's Pedal Assist Wattage Regulation (PWR) programming allows for an improved Pedal Assist experience by assisting the rider up to a certain power level for each PAS setting, instead of limiting the assistance by speed alone.
PAS Sensor
Lectric's PWR™ allows the rider to control the eBike's output with no additional effort so that a torque sensor is not necessary for smooth rides. Instead, the Lectric ONE has a simply designed and affordable cadence sensor with 96 magnets simulated so you can reach high speeds with ease.

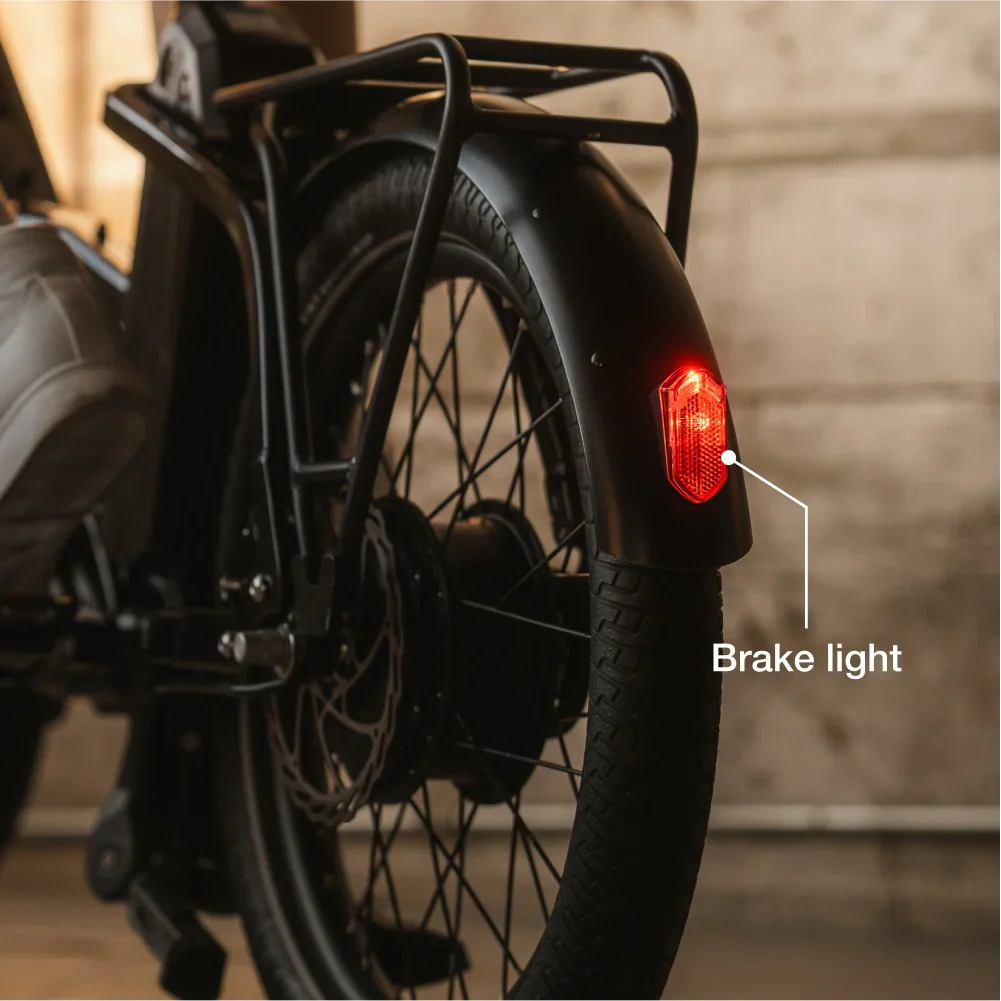

Safety Lights
An integrated safety system, featuring a headlamp and a brake-activated taillight powered by the battery allows you to be seen at any time of day.
Charging
An external charging port provides riders with the option to charge the eBike without removing the battery. The Lectric ONE comes standard with a 2amp charger for 5-7 hour charging.
Telescoping Seat Post
An adjustable and removable seat post allows riders to reach a range of heights while maintaining comfort and stability.
Adjustable Handlebar Stem
Easily adjustable handlebar stem riser includes a quick-release lever to comfortably adjust your handlebar reach to your liking; bring your handlebars toward you or push them further back.
Removable Pedals
Quick-release pedals easily detach from the bike for compact transport.
Lock-on Grips
Ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.
Saddle
A custom-designed saddle compliments a sportier look while adding comfort so you can ride longer.
Kickstand
A heavy-duty side-sweeping kickstand located near the chain stay keeps the eBike upright.
Accessory Mounting Points
The frame features multiple mounting points throughout the eBike for various accessory combinations.
Hidden Cable Routing
The down tube of the frame houses the main cables for a premium experience at no extra cost.
Frame
6000-series-aluminum frame is sturdy yet lightweight. The chainstays feature vertical dropouts and speciality designed splits on each side for easy access to the belt drive.
Green Packaging
Packaging components are biodegradable and easily recyclable.
One Minute, Tool-Free Assembly
Simply attach the quick-release pedals, unfold the handlebar stem, and install the front wheel via the thru axle.
Safety Certified
The Lectric ONE is certified to UL 2849. Additionally, the ONE's lithium-ion battery is certified to UL 2271.
* As compared to previous 750W Lectric motors. ** Where permitted by state law. † Range can vary due to weight load, terrain, weather and other conditions. ‡ Click here for information on battery safety.
What’s in the Box
What’s in the Box
- City tires with 3mm Hippo Skin
- Battery and Charger
- Integrated Color LCD Display
- Integrated Front Light and Rear Brake Light
- Special Offer: FREE Rear Rack
- Special Offer: FREE Fenders
Manuals & Videos
Manuals & Videos
Your First Ride
The first time riding your new eBike can be a little daunting, which is why we have helpful step-by-step instructions that walk you through opening, unboxing, setting up, and an overview of all of the features so you can ride with confidence!
It is important to read the entirety of the user manual before taking your first ride.
Here is our 'First Ride' YouTube video(s) that will walk you through how to set up your new eBike:
Click Here to watch on our Youtube Channel
Below are some key points and steps from the User Manual that apply to all bikes!
Unboxing
Congratulations on your purchase of a new Lectric eBike!
Inside the box, you will find your new bike, a charger, keys, and a digital user manual. Before removing the packaging material from the bike, remove all items from the box and make sure everything listed above is present. If anything is missing or damaged contact Lectric eBikes immediately for assistance.
The bike may require adjustments upon being received and unboxed, as shipping can sometimes be bumpy. When doing your first adjustment and inspecting the bike before riding, we recommend seeking professional help from a reputable, certified bicycle mechanic.
Follow the instructions in your user manual to set up your bike and insert the handlebars, seat post, or other unassembled components depending on the model of the bike. For more information please refer to the 'Getting Started' section in the user manual.
Inspection
1. Check that the tire and the tire bead are seated just inside the rim. Inflate your bike tires to a pressure that is within the recommended range printed on the side of the bike tire sidewalls. When inflating, gradually inflate in 5-10PSI increments while checking to make sure the tire bead is fully seated on the rim. If you notice the tire bead is not fully seated at any point during inflation, deflate the tire completely and reseat the tire bead before reinflating.
2. Check your seat post clamp and, if featured on your model, the handlebar stem quick-releases. Unlatch the quick releases and tighten by turning the bolt clockwise. Make sure all quick releases are tightened to the torque listed in the Recommended Torque Values section of the manual. The page number of this section can be found by referring to the table of contents at the beginning of the manual.
3. Ensure your seat post and handlebar stem are inserted past their minimum insertion points as indicated by the markings on them. Reference the 'Preparing to Ride' section of the manual for photos and complete instructions. Failure to insert past the minimum insertion point will place undue stress on these components increasing the risk of sudden failure potentially resulting in harm, injury, or death.
4. If you have a folding eBike, check to make sure your frame folding latch and handlebar folding latch are locked. Reference the 'Folding and Unfolding the Bike' section of the manual for photos and complete instructions. The page number of this section can be found by referring to the table of contents at the beginning of the manual. Double-check to make sure both latches are secure and locked before riding. Failure to do so may result in the bike folding while in use potentially causing serious harm to the rider.
Turn the bike on
5. Ensure your battery is fully charged before your first ride.
7. If the battery is not already inside the bike or on the mount, slide it inside of the frame or on the mount and lock it in position. Once the battery is secured, insert the key into the battery via the port (for the XP Lite & XP 1.0, 2.0, and 3.0s, the key port will be on the underbelly of the frame). See the Battery section of the manual for further information on the operation of the battery.
8. Push the key in firmly. Turn the key to lock the battery to the bike, and turn it to the ON position. You will not be able to remove the keys on certain models of Lectric eBikes.
9. Hold down the power button on the button pad located on the left side of the handlebars until the display comes on.
Operating your bike
10. Select a level of pedal assist using the plus and minus buttons on the button pad. Pedal assist level 1 is the lowest level of assist and pedal assist level 5 is the highest level of assist. Level zero will provide no assistance.
11. The handlebar features a throttle. To operate the throttle, ensure the pedal assist level is set above 0, then engage the throttle slowly according to how much speed and acceleration you want to achieve. The farther you twist or push on the throttle from its resting position, the more power propels the bike forward. When the bike is at a complete stop, turn the display off. This will ensure that the motor will not activate until the display is turned back on and the rider is ready to go.
Note: Exercise extreme caution using the throttle. When at a complete stop with the bike turned on, be careful not to engage the throttle unknowingly or the bike could throw you off balance and cause serious harm, injury, or death.
12. To turn on the headlight and tail light, press and hold the plus button on the button pad. The battery must be on in order for the headlight to work.
Now you're ready to ride! Happy trails!
Product Manual
User Manuals
Before operating your Lectric eBike, please read the User Manual, Universal Electric Bicycle Owner’s Manual, and Lithium-Ion Battery Safety Manual for essential usage and safety guidelines.
To ensure each customer gets the most relevant and updated information at all times, we have transitioned to online user manuals that are kept up to date by our team. We also help save a few trees along the way!
Download the Manual(s) for our bikes below:
Click to download > Lectric ONE User Manual
Click to download > Universal Electric Bicycle Owner's Manual
Click to download > Pinion C-Line Gearbox User Manual
Click to download > Pinion Smart.Shift User Manual
Click to download > Gates Belt Drive User Manual
Service Videos & Tutorials
Click to watch > Lectric eBike Service Center
If you have any questions, please don't hesitate to contact our support team at [email protected] or 412-567-4390.
FAQ
Lectric ONE FAQ
What luxury features make the Lectric ONE ideal for commuting?
The Lectric ONE is equipped with a Pinion gearbox and Gates Carbon Drive belt system, offering a luxury ride that combines durability with low maintenance. The seamless shifting and quiet operation of this ebike improves the commuting experience.
How fast does the Lectric ONE go?
The Lectric ONE eBike reaches a top speed of 28 mph when using pedal assist, although the throttle mode is limited to 20 mph. This makes it a Class 3 eBike, offering a combination of speed and power for commuting.
What advantages does the automotive-grade technology provide to Lectric ONE riders?
Automotive-grade technology in the Lectric ONE provides unmatched performance, durability, and ease of use, making it a top choice for commuters who demand the best when it comes to efficiency and comfort.
What exactly is an eBike?
An ebike, short for electric bike, is a bicycle equipped with an electric motor that provides propulsion assistance to the rider. Unlike traditional bicycles that rely solely on human pedaling power, ebikes feature an integrated electric motor that assists the rider's pedaling efforts, making it easier to pedal and allowing for greater speed and distance with less exertion. The level of assistance provided by the electric motor can typically be adjusted by the rider, allowing for customizable riding experiences tailored to individual preferences and riding conditions. Ebikes are increasingly popular for commuting, recreation, and fitness, offering an eco-friendly and efficient mode of transportation.
How do eBikes work?
Ebikes, short for electric bikes, work by combining traditional pedal power with an electric motor to provide assistance to the rider. Here's how they typically work:
- Pedal Assistance: Most ebikes are equipped with a pedal-assist system (PAS) that detects when the rider is pedaling and provides additional power from the electric motor to assist the rider's effort. The level of assistance can usually be adjusted using a control panel or display on the handlebars.
- Electric Motor: Ebikes are powered by an electric motor, which is usually located either in the hub of one of the wheels (hub motor) or near the crankset (mid-drive motor). When activated, the motor provides assistance to the pedals, making it easier for the rider to pedal and maintain speed, especially when going uphill or against strong winds.
- Battery: The electric motor is powered by a rechargeable battery, typically mounted on the frame of the bike. The battery's capacity determines the range and duration of assistance provided by the motor. Riders can usually choose from different power levels or modes to adjust the amount of assistance based on their preferences and riding conditions.
- Control and Display: Many ebikes feature a control panel or display on the handlebars, allowing riders to monitor and adjust settings such as power level, battery status, and speed. Some ebikes also come with additional features like built-in lights, USB charging ports, and smartphone connectivity.
Overall, ebikes offer a versatile and efficient mode of transportation, combining the benefits of traditional cycling with the convenience and assistance of electric power. They're suitable for a wide range of riders, from commuters looking to navigate city streets to outdoor enthusiasts exploring off-road trails.
How do I ride? Do I have to pedal?
All Lectric eBikes can be ridden in three different ways:
- Pedaling without any motor assist (as a regular bicycle)
- Pedaling with motor assist (five levels of assist)
- Pure throttle
How fast does an eBike go?
The speed of an ebike can vary depending on several factors, including the type of motor, battery power, and local regulations. Most ebikes are designed to assist riders up to a certain speed, typically between 20 to 28 miles per hour, known as the pedal-assist speed limit. However, some ebikes can reach higher speeds, especially those designed for off-road or performance-oriented riding. It's important to check local regulations regarding ebike speed limits, as they may vary depending on the region.
What are the different classifications of ebikes?
There are generally three classifications of ebikes based on their power assistance levels:
- Class 1: Pedal Assist (Pedelec) - These ebikes provide assistance only when the rider is pedaling and typically have a maximum assisted speed of 20 mph (32 km/h). They are equipped with a motor that provides assistance proportional to the rider's pedaling effort.
- Class 2: Throttle Assist - These ebikes feature a throttle that allows the rider to engage the motor without pedaling. They also have a maximum assisted speed of 20 mph (32 km/h), but the motor can be activated independently of pedaling.
- Class 3: Speed Pedelec- Similar to Class 1 ebikes, these models provide pedal assistance but with a higher maximum assisted speed of 28 mph (45 km/h). They are designed for faster commuting and recreational riding but may be subject to specific regulations and restrictions in some areas.
These classifications may vary slightly depending on local regulations and laws governing ebike use in different regions. It's essential to familiarize yourself with the specific classifications and regulations applicable to your location when choosing an ebike
Do you need a license to drive an ebike?
In many regions, you do not need a license to ride an ebike, especially if it meets certain criteria regarding power and speed. However, regulations vary depending on the country, state/province, and local jurisdiction. Generally, low-speed ebikes that have a maximum assisted speed of around 20 mph and a motor power output below a certain threshold may not require a license. It's important to check the specific laws and regulations in your area to determine whether a license is required for riding an ebike. Additionally, some regions may have age restrictions or other requirements for operating an ebike on public roads or trails.
Do eBikes need insurance?
Whether ebikes require insurance depends on various factors, including local laws, the type of ebike, and how it's used. In many places, ebikes are treated similarly to traditional bicycles, which typically do not require insurance for personal use. However, certain circumstances may warrant insurance coverage:
- Riding on public roads: If you ride your ebike on public roads, some jurisdictions may require liability insurance, especially if the ebike is capable of higher speeds or is classified as a motor vehicle.
- Ebikes with higher power or speed: In some regions, ebikes that exceed certain power or speed limits may be classified as mopeds or motorcycles, requiring insurance coverage similar to motor vehicles.
- Accidents and liability: While insurance may not be legally required, having coverage can provide financial protection in case of accidents, damage, or liability claims involving your ebike.
- Theft and damage: Insurance coverage can also help protect against theft, vandalism, or damage to your ebike, similar to coverage for other valuable possessions.
Before purchasing insurance for your ebike, it's essential to research and understand the specific requirements and options available in your area. Consulting with insurance providers knowledgeable about ebike coverage can help you determine the appropriate level of protection based on your needs and usage patterns.
How waterproof are Lectric eBikes?
All Lectric eBike's electrical components have an IP rating of 65! This means it is dust-tight and can withstand jetting water. See the IP code for more details.
Use caution when riding in wet conditions as it will take longer to use the brakes to slow down, and also when turning as the tires may slip. The electrical components on the bike are not waterproof.
The warranty for all Lectric eBikes does not cover water damage.
What is the maximum rider weight for Lectric eBikes?
Check out the list below to see the rider weight for each Lectric eBike model:
XPress: 330 lbs
XPeak: 330 lbs
XPedition: 330 lbs
XP Lite: 220 lbs
XP Trike: 330 lbs
XP 3.0: 255 lbs
Lectric ONE: 330 lbs
How much do Lectric eBikes weigh?
Check out the list below to see the weight of each Lectric eBike model:
XPress: 58 lbs
XPeak: 67 lbs
XPedition: 68 lbs
XP Lite: 46 lbs
XP Trike: 69.5 lbs
XP 3.0: 64 lbs
Lectric ONE: 55 lbs
What is the top speed for all Lectric eBikes?
Check out the list below to see the top speed for each Lectric eBike model:
XPress: 28mph (45km)
XPeak: 28mph (45km)
XPedition: 28mph (45km)
XP Lite: 20mph (32km)
XP Trike: 14mph (23km)
XP 3.0: 28mph (45km)
Lectric ONE: 28mph (45km)
What are the recommended rider heights for Lectric eBikes?
Check out the list below to see the rider height range for each Lectric eBike model:
XPress High-Step: 5'4 - 6'4
XPress Step-Thru: 5'2 - 6'3
XPeak High-Step: 5'7 - 6'5
XPeak Step-Thru: 5'2 - 6'3
XPedition: 4'11 - 6'5
XP Lite: 4'8 - 6'2
XP Trike: 4'10 - 6'4
XP 3.0: 5'0 - 6'4
XP Step-Thru 3.0: 4'10 - 6'3
Lectric ONE: 5'2 - 6'4
Riders within these height ranges may comfortably ride the bikes by simply adjusting the seat and handlebars to their height preference.
What is the classification of Lectric eBikes?
All Lectric eBikes ship as a class 2 electric bike, meaning it has a throttle capable of propelling the bike at speeds of up to 20mph. Pedal assist will also be limited to 14 or 20mph in this setting depending on the model.
If you would like to go faster, the XP, XPedition, XPeak, XPress, and the Lectric ONE bikes can be unlocked to achieve class 3 settings. This will allow you to reach pedal-assist speeds of up to 28mph!
It is just a simple change of the settings on the display to increase the max speed. For instructions on how to change the top speed of the bike please check your user manual, or click here for an article explaining the process.
Please note that due to federal eBike laws, the throttle will remain limited to 20mph regardless. You must check your local regulations before unlocking your bike as laws vary by state, municipality, and in some cases trail.
Can the Lectric eBikes handle extreme temperatures?
All Lectric eBikes are designed to handle extreme temperatures to a point. Mechanical and electrical components on the bikes react differently to various temperatures and weather conditions.
Cold Weather:
When riding in cold temperatures, be sure to keep your bike running until you reach your destination to prevent your motor from freezing up on you. Please note that colder temperatures can impact your battery's range and you may notice it fades quicker than in warmer months. As always, we highly recommend storing your battery inside at moderate temperatures when possible!
Hot Weather:
Our eBikes are designed to handle extreme temperatures to a point. Our headquarters is located in Phoenix, AZ, so we understand heat! Extreme temperatures can impact your battery's performance, so you may see your battery drain faster in excessive heat. As always, we recommend storing your battery inside at moderate temperatures whenever possible.
How do I store my ebike battery for the winter?
Storing your ebike battery properly during the winter is essential to maintain its performance and longevity. Here are some tips for winter storage:
- Charge the Battery: Before storing your ebike battery, make sure it's fully charged. This helps prevent it from self-discharging completely during storage, which can lead to irreversible damage.
- Store in a Cool, Dry Place: Find a cool, dry location to store your ebike battery during the winter months. Avoid areas with extreme temperatures, such as unheated garages or sheds, as freezing temperatures can harm the battery.
- Check Charge Periodically: It's a good idea to check the battery's charge periodically during storage, approximately every 1-2 months. If the charge level drops significantly, recharge the battery to around 50% capacity to maintain its health.
- Avoid Extreme Temperatures: Protect the battery from exposure to extreme cold or heat. Extreme temperatures can affect the battery's performance and lifespan. If possible, store the battery indoors at room temperature.
- Disconnect the Battery: If your ebike allows it, disconnect the battery from the bike during storage. This prevents any potential drain on the battery from the bike's electrical systems.
- Store Upright: Store the battery in an upright position to prevent any leaks or spills. Avoid placing heavy objects on top of the battery during storage.
- Refer to Manufacturer's Guidelines: Follow any specific storage recommendations provided by the ebike manufacturer. They may have additional guidelines tailored to your particular battery model.
By following these tips, you can ensure that your ebike battery remains in good condition throughout the winter and is ready for use when the riding season resumes.
What is a torque sensor on an ebike?
A torque sensor on an ebike is a component that measures the force or pressure applied to the pedals by the rider. It detects the amount of torque or rotational force exerted on the pedal crank and translates this information into signals that control the assistance provided by the electric motor. Essentially, the torque sensor determines how much power the motor should deliver based on the rider's pedaling effort.
Product Information
Product Information
Shipping & Returns
Shipping & Returns

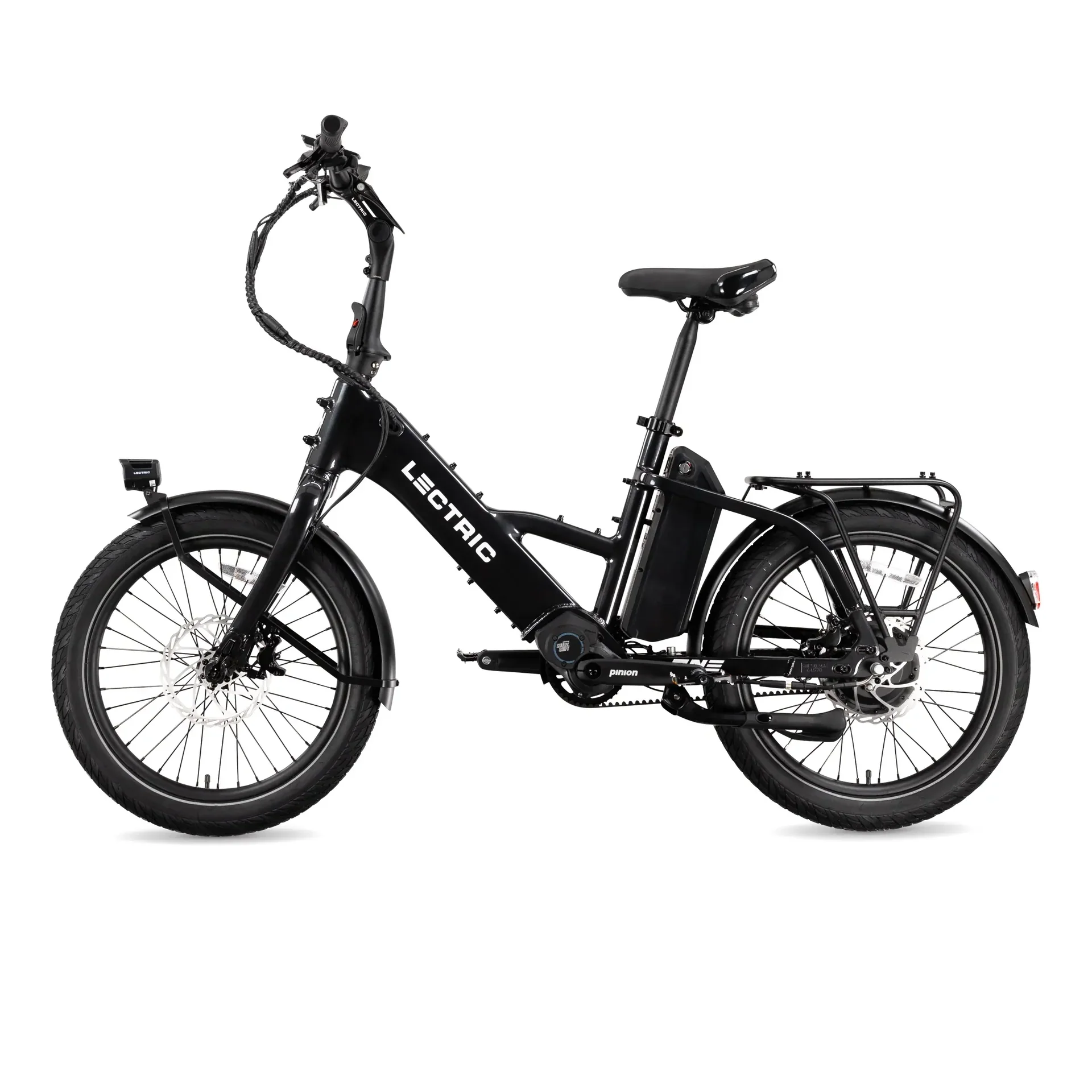

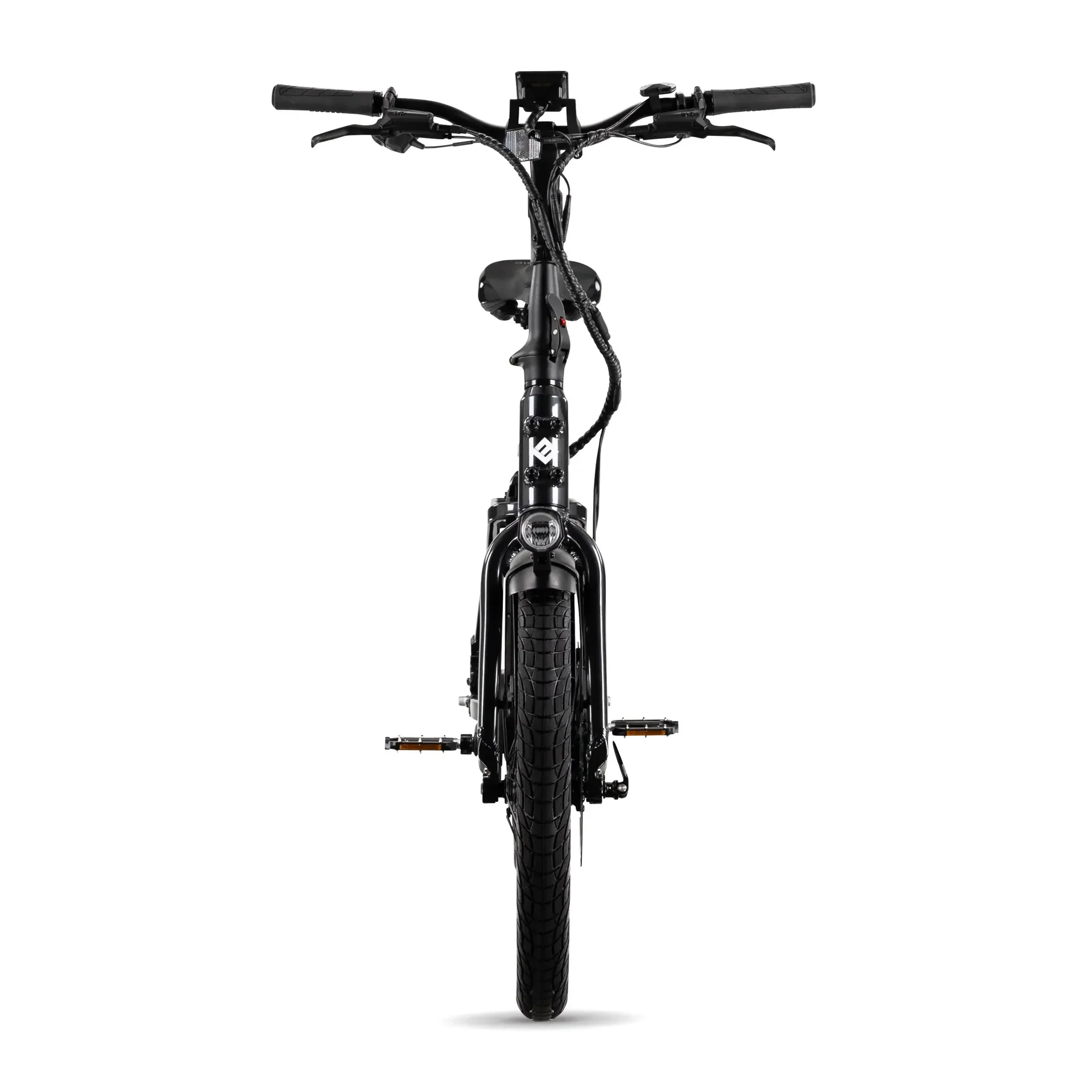

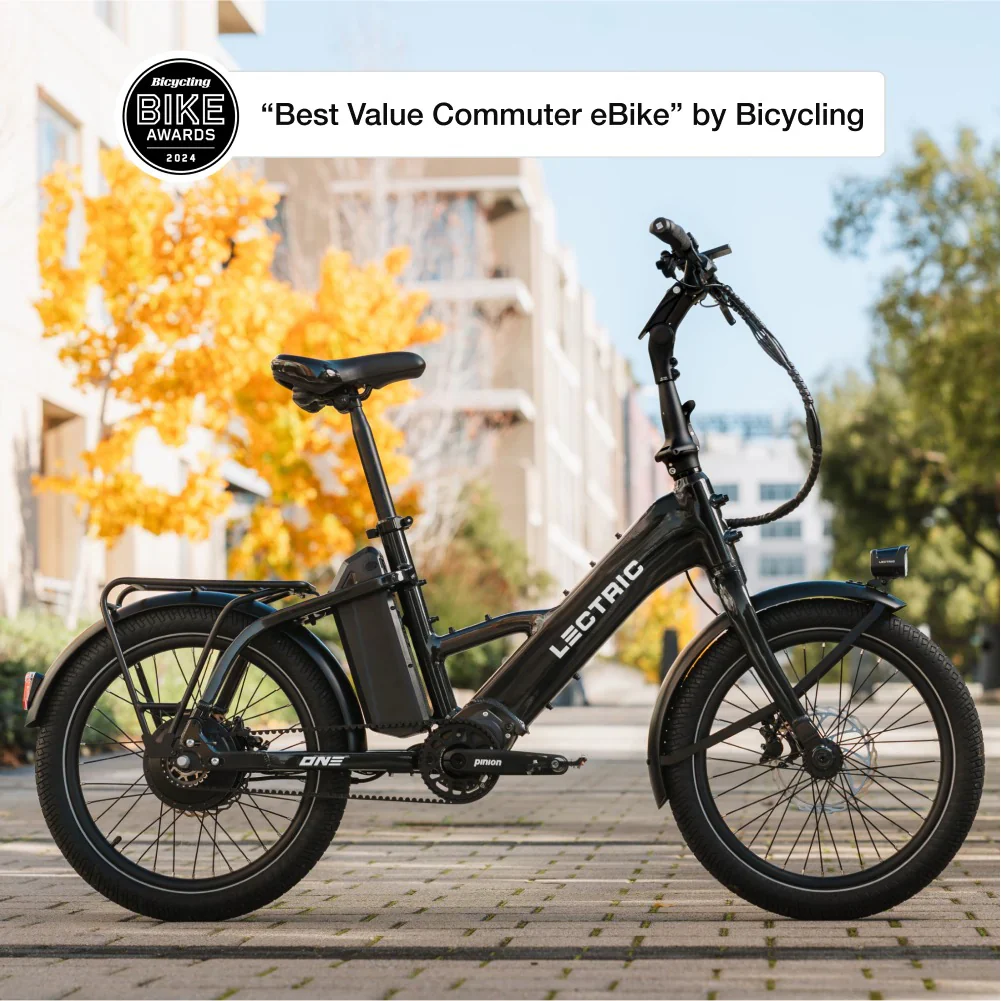

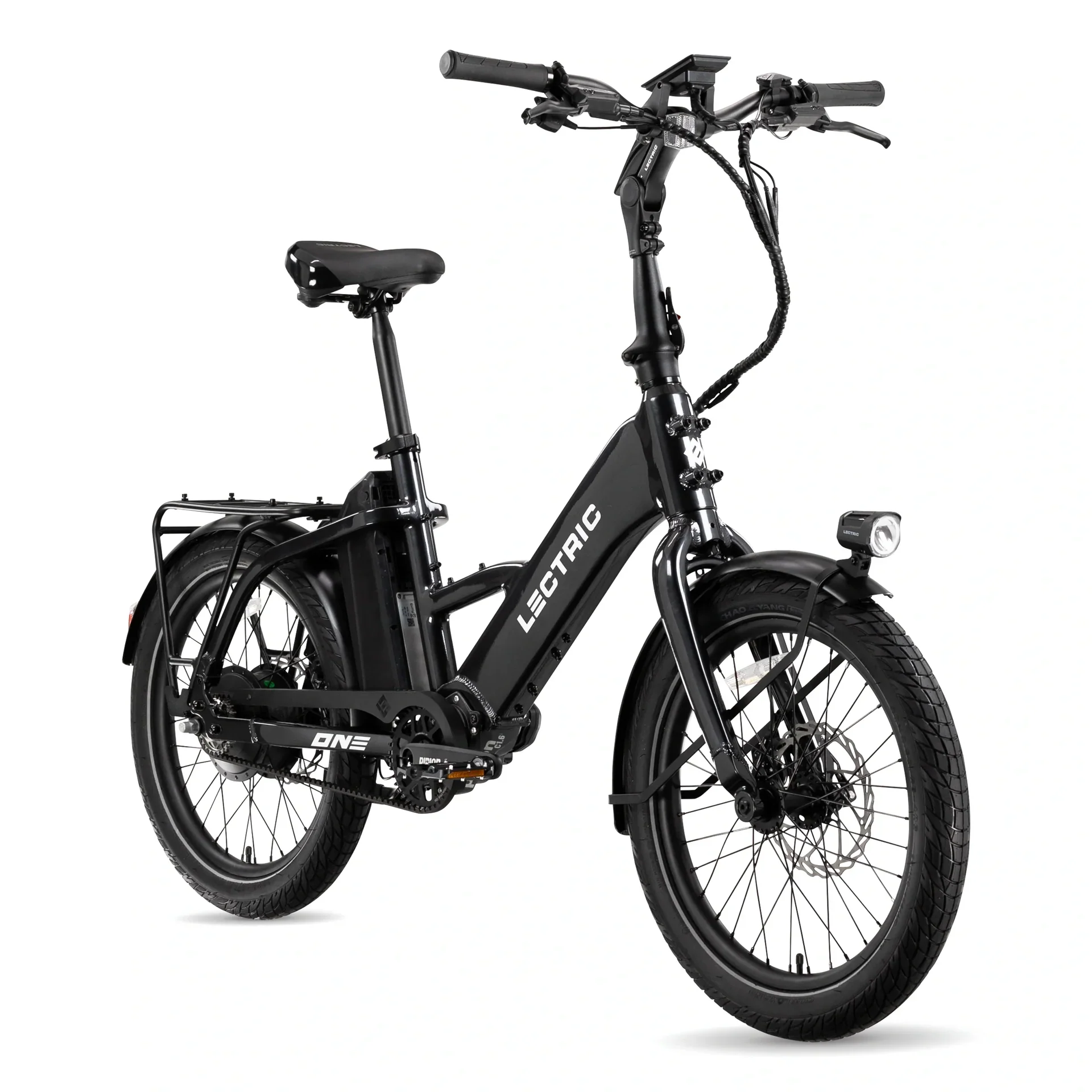

Lectric ONE Long-Range eBike
Lectric ONE Long-Range eBike
Lectric ONE Long-Range eBike
Electric Belt Drive Commuter Bike
For Lectric eBikes products, we are no longer able to sell them online. They are only available for purchase in person at our warehouse.
eBike Overview
The Lectric ONE is the pinnacle of innovation, blending cutting-edge design with premium automotive-grade technology to redefine what a commuter eBike can be. At its core, the precision-engineered Pinion smart gearbox pairs seamlessly with the virtually maintenance-free Gates Carbon Drive Belt, delivering effortless, automatic shifting and an ultra-smooth ride.
Its sleek aerodynamic frame, color LCD display, and high-efficiency city tires elevate performance, while hydraulic disc brakes, brake-responsive taillights, and reflective detailing maximize safety. Proudly named 2024’s Best Value Commuter by Bicycling Magazine.
Behind the Design: Lectric ONE
The Lectric ONE is built for those who seek simplicity and award-winning design, featuring high end components from industry-leading automotive companies that allow you to commute with ease. Join us as we cover the comprehensive design process on our new eBike and see why Bicycling Magazine selected the Lectric ONE as 2024's Best Value Commuter.
TOP SPEED
28 mph
RANGE
up to 60 miles
PAYLOAD CAPACITY
330 lbs
MOTOR POWER
1310W peak
PINION GEARBOX
Semi-Automatic Shifting
TOOL-FREE ASSEMBLY
Yes
⚠ Disclaimer: Must be 16 years of age or older to ride.
Features
Features
Pinion Gearbox with Smart.Shift
The enclosed gearbox is weather-sealed and easily paired with the Pinion Smart.Shift app, allowing riders to pre-select gears for effortless auto-shifts.
Gates Carbon Drive Belt System
This automotive-grade belt is carbon fiber-reinforced and nearly maintenance-free providing a chainless drivetrain that's clean, quiet, smooth, and strong.
Impressive Power
Sutto motor with 1310W of peak power combined with our new Stealth M24 technology delivers a 400% quieter motor* built for the long haul with a 48V, 14Ah (672 Wh) Lithium-Ion battery certified to UL 2271. The Lectric ONE is also certified to UL 2849.
New Color LCD Display
An all-new color display featuring a USB-A port adds an aesthetic look while offering clear and concise information.
Size Guide
Size Guide
Bike Dimensions 63"L x 16"W x 44"H
Bike Dimensions with Front Tire removed 58"L x 16"W x 34"H
Stand Over Height 18.5"
Handlebar Height 40"
Bike Weight 48 lbs w/o battery.
Bike Weight with Front Tire removed 50 lbs.
Payload Capacity Max: 330 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Rack Weight 20 lbs, Max Rear Rack Weight 30 lbs.
Rider Payload Capacity Max: 330 lbs.
Seat to Ground Min: 31” / Max: 39.5”
Handlebar Width 26"
Rider Height 5’2” - 6’4”
Handlebar Reach 20” - 24”
Specifications
Specifications
Pedal-Assist
Five levels of pedal-assist and an ergonomic thumb throttle deliver the speed and power to own the road as a Class 1, 2, or 3 eBike.**
Thumb Throttle
An ergonomic below-the-bar trigger throttle on the left hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue.
Color LCD Display
A backlit, heads-up color LCD display with a USB-A port provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.
Motor Controller
24 amp controller is IP-65 rated and potted for weather proofing and thermal management.
Motor
A Sutto 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before. New Stealth M24 technology is 400% quieter*, delivering a hushed motor experience without sacrificing power.
Battery
Available with a Long-Range 48V 14ah (672 Wh) lithium-ion battery certified to UL 2271 to power your ride for up to 60 miles, respectively.†‡ The Lectric ONE is also certified to UL 2849.
Bike Weight
Total bike weight is 48lbs with the 7lb battery removed.
City Tires
20x2.5'' city tires featuring a reflective strip are equipped with 3mm Hippo Skin with an Aramid Floc Breaker. Shark Skin Protection on the sidewall offers pinch flat protection and all-weather reliability. Slime is installed to prevent flat tires at no additional cost.
Front Fork
This rigid fork is fully aluminum and ultra lightweight, featuring a thru axle dropout.
Thru Axle
The front wheel features a Thru Axle wheel attachment system for tool-free installation. This feature ensures a straight wheel, consistent brake rotor alignment, and handling stability. Remove the wheel in minutes for an easy and light-weight transport.
Pinion Gearbox
With the Pinion C1.6i six-speed sealed weatherproof gearbox, shifting is done at the touch of a button – quickly, ergonomically, and intuitively. The system shifts while riding, while stationary, and while under load.
Pinion Smart.Shift App
All gearbox functions are combined in the Pinion Smart.Shift App, which can be easily paired and customized to suit your preferences. A pre-select feature automatically sets the rider's gears, allowing effortless auto-shifts, while a convenient start-select feature lets riders dictate their starting gear ahead of time, allowing for split-second starts.
Cranks
Pinion aluminum cranks are 165mm in length.
Belt Drive
Gates CDC 113-tooth Carbon Drive Belt System is lightweight and carbon fiber-reinforced. The belt’s performance is nearly maintenance-free while providing a chainless drivetrain that’s clean, quiet, smooth, and strong.
Gates Carbon Drive App
The Gates app is used to measure belt tension sonically. The belt can be plucked like a guitar string while the app uses the microphone on a mobile device to read the vibration frequency and compares it to a chart to determine if any adjustments are needed.
Belt Cogs
A Gates CDC 24-tooth steel rear belt cog is paired with an aluminum CDX 39-tooth front cog providing a ratio-optimized performance to accommodate a wide range of speeds.
Brakes
Hydraulic mineral oil brakes and 180mm rotors (1.8mm thick) offer ultimate stopping power and peace of mind in wet or dry conditions.
Lectric PWR™
Lectric's Pedal Assist Wattage Regulation (PWR) programming allows for an improved Pedal Assist experience by assisting the rider up to a certain power level for each PAS setting, instead of limiting the assistance by speed alone.
PAS Sensor
Lectric's PWR™ allows the rider to control the eBike's output with no additional effort so that a torque sensor is not necessary for smooth rides. Instead, the Lectric ONE has a simply designed and affordable cadence sensor with 96 magnets simulated so you can reach high speeds with ease.
Safety Lights
An integrated safety system, featuring a headlamp and a brake-activated taillight powered by the battery allows you to be seen at any time of day.
Charging
An external charging port provides riders with the option to charge the eBike without removing the battery. The Lectric ONE comes standard with a 2amp charger for 5-7 hour charging.
Telescoping Seat Post
An adjustable and removable seat post allows riders to reach a range of heights while maintaining comfort and stability.
Adjustable Handlebar Stem
Easily adjustable handlebar stem riser includes a quick-release lever to comfortably adjust your handlebar reach to your liking; bring your handlebars toward you or push them further back.
Removable Pedals
Quick-release pedals easily detach from the bike for compact transport.
Lock-on Grips
Ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.
Saddle
A custom-designed saddle compliments a sportier look while adding comfort so you can ride longer.
Kickstand
A heavy-duty side-sweeping kickstand located near the chain stay keeps the eBike upright.
Accessory Mounting Points
The frame features multiple mounting points throughout the eBike for various accessory combinations.
Hidden Cable Routing
The down tube of the frame houses the main cables for a premium experience at no extra cost.
Frame
6000-series-aluminum frame is sturdy yet lightweight. The chainstays feature vertical dropouts and speciality designed splits on each side for easy access to the belt drive.
Green Packaging
Packaging components are biodegradable and easily recyclable.
One Minute, Tool-Free Assembly
Simply attach the quick-release pedals, unfold the handlebar stem, and install the front wheel via the thru axle.
Safety Certified
The Lectric ONE is certified to UL 2849. Additionally, the ONE's lithium-ion battery is certified to UL 2271.
* As compared to previous 750W Lectric motors. ** Where permitted by state law. † Range can vary due to weight load, terrain, weather and other conditions. ‡ Click here for information on battery safety.
What’s in the Box
What’s in the Box
- City tires with 3mm Hippo Skin
- Battery and Charger
- Integrated Color LCD Display
- Integrated Front Light and Rear Brake Light
- Special Offer: FREE Rear Rack
- Special Offer: FREE Fenders
Manuals & Videos
Manuals & Videos
Your First Ride
The first time riding your new eBike can be a little daunting, which is why we have helpful step-by-step instructions that walk you through opening, unboxing, setting up, and an overview of all of the features so you can ride with confidence!
It is important to read the entirety of the user manual before taking your first ride.
Here is our 'First Ride' YouTube video(s) that will walk you through how to set up your new eBike:
Click Here to watch on our Youtube Channel
Below are some key points and steps from the User Manual that apply to all bikes!
Unboxing
Congratulations on your purchase of a new Lectric eBike!
Inside the box, you will find your new bike, a charger, keys, and a digital user manual. Before removing the packaging material from the bike, remove all items from the box and make sure everything listed above is present. If anything is missing or damaged contact Lectric eBikes immediately for assistance.
The bike may require adjustments upon being received and unboxed, as shipping can sometimes be bumpy. When doing your first adjustment and inspecting the bike before riding, we recommend seeking professional help from a reputable, certified bicycle mechanic.
Follow the instructions in your user manual to set up your bike and insert the handlebars, seat post, or other unassembled components depending on the model of the bike. For more information please refer to the 'Getting Started' section in the user manual.
Inspection
1. Check that the tire and the tire bead are seated just inside the rim. Inflate your bike tires to a pressure that is within the recommended range printed on the side of the bike tire sidewalls. When inflating, gradually inflate in 5-10PSI increments while checking to make sure the tire bead is fully seated on the rim. If you notice the tire bead is not fully seated at any point during inflation, deflate the tire completely and reseat the tire bead before reinflating.
2. Check your seat post clamp and, if featured on your model, the handlebar stem quick-releases. Unlatch the quick releases and tighten by turning the bolt clockwise. Make sure all quick releases are tightened to the torque listed in the Recommended Torque Values section of the manual. The page number of this section can be found by referring to the table of contents at the beginning of the manual.
3. Ensure your seat post and handlebar stem are inserted past their minimum insertion points as indicated by the markings on them. Reference the 'Preparing to Ride' section of the manual for photos and complete instructions. Failure to insert past the minimum insertion point will place undue stress on these components increasing the risk of sudden failure potentially resulting in harm, injury, or death.
4. If you have a folding eBike, check to make sure your frame folding latch and handlebar folding latch are locked. Reference the 'Folding and Unfolding the Bike' section of the manual for photos and complete instructions. The page number of this section can be found by referring to the table of contents at the beginning of the manual. Double-check to make sure both latches are secure and locked before riding. Failure to do so may result in the bike folding while in use potentially causing serious harm to the rider.
Turn the bike on
5. Ensure your battery is fully charged before your first ride.
7. If the battery is not already inside the bike or on the mount, slide it inside of the frame or on the mount and lock it in position. Once the battery is secured, insert the key into the battery via the port (for the XP Lite & XP 1.0, 2.0, and 3.0s, the key port will be on the underbelly of the frame). See the Battery section of the manual for further information on the operation of the battery.
8. Push the key in firmly. Turn the key to lock the battery to the bike, and turn it to the ON position. You will not be able to remove the keys on certain models of Lectric eBikes.
9. Hold down the power button on the button pad located on the left side of the handlebars until the display comes on.
Operating your bike
10. Select a level of pedal assist using the plus and minus buttons on the button pad. Pedal assist level 1 is the lowest level of assist and pedal assist level 5 is the highest level of assist. Level zero will provide no assistance.
11. The handlebar features a throttle. To operate the throttle, ensure the pedal assist level is set above 0, then engage the throttle slowly according to how much speed and acceleration you want to achieve. The farther you twist or push on the throttle from its resting position, the more power propels the bike forward. When the bike is at a complete stop, turn the display off. This will ensure that the motor will not activate until the display is turned back on and the rider is ready to go.
Note: Exercise extreme caution using the throttle. When at a complete stop with the bike turned on, be careful not to engage the throttle unknowingly or the bike could throw you off balance and cause serious harm, injury, or death.
12. To turn on the headlight and tail light, press and hold the plus button on the button pad. The battery must be on in order for the headlight to work.
Now you're ready to ride! Happy trails!
Product Manual
User Manuals
Before operating your Lectric eBike, please read the User Manual, Universal Electric Bicycle Owner’s Manual, and Lithium-Ion Battery Safety Manual for essential usage and safety guidelines.
To ensure each customer gets the most relevant and updated information at all times, we have transitioned to online user manuals that are kept up to date by our team. We also help save a few trees along the way!
Download the Manual(s) for our bikes below:
Click to download > Lectric ONE User Manual
Click to download > Universal Electric Bicycle Owner's Manual
Click to download > Pinion C-Line Gearbox User Manual
Click to download > Pinion Smart.Shift User Manual
Click to download > Gates Belt Drive User Manual
Service Videos & Tutorials
Click to watch > Lectric eBike Service Center
If you have any questions, please don't hesitate to contact our support team at [email protected] or 412-567-4390.
FAQ
Lectric ONE FAQ
What luxury features make the Lectric ONE ideal for commuting?
The Lectric ONE is equipped with a Pinion gearbox and Gates Carbon Drive belt system, offering a luxury ride that combines durability with low maintenance. The seamless shifting and quiet operation of this ebike improves the commuting experience.
How fast does the Lectric ONE go?
The Lectric ONE eBike reaches a top speed of 28 mph when using pedal assist, although the throttle mode is limited to 20 mph. This makes it a Class 3 eBike, offering a combination of speed and power for commuting.
What advantages does the automotive-grade technology provide to Lectric ONE riders?
Automotive-grade technology in the Lectric ONE provides unmatched performance, durability, and ease of use, making it a top choice for commuters who demand the best when it comes to efficiency and comfort.
What exactly is an eBike?
An ebike, short for electric bike, is a bicycle equipped with an electric motor that provides propulsion assistance to the rider. Unlike traditional bicycles that rely solely on human pedaling power, ebikes feature an integrated electric motor that assists the rider's pedaling efforts, making it easier to pedal and allowing for greater speed and distance with less exertion. The level of assistance provided by the electric motor can typically be adjusted by the rider, allowing for customizable riding experiences tailored to individual preferences and riding conditions. Ebikes are increasingly popular for commuting, recreation, and fitness, offering an eco-friendly and efficient mode of transportation.
How do eBikes work?
Ebikes, short for electric bikes, work by combining traditional pedal power with an electric motor to provide assistance to the rider. Here's how they typically work:
- Pedal Assistance: Most ebikes are equipped with a pedal-assist system (PAS) that detects when the rider is pedaling and provides additional power from the electric motor to assist the rider's effort. The level of assistance can usually be adjusted using a control panel or display on the handlebars.
- Electric Motor: Ebikes are powered by an electric motor, which is usually located either in the hub of one of the wheels (hub motor) or near the crankset (mid-drive motor). When activated, the motor provides assistance to the pedals, making it easier for the rider to pedal and maintain speed, especially when going uphill or against strong winds.
- Battery: The electric motor is powered by a rechargeable battery, typically mounted on the frame of the bike. The battery's capacity determines the range and duration of assistance provided by the motor. Riders can usually choose from different power levels or modes to adjust the amount of assistance based on their preferences and riding conditions.
- Control and Display: Many ebikes feature a control panel or display on the handlebars, allowing riders to monitor and adjust settings such as power level, battery status, and speed. Some ebikes also come with additional features like built-in lights, USB charging ports, and smartphone connectivity.
Overall, ebikes offer a versatile and efficient mode of transportation, combining the benefits of traditional cycling with the convenience and assistance of electric power. They're suitable for a wide range of riders, from commuters looking to navigate city streets to outdoor enthusiasts exploring off-road trails.
How do I ride? Do I have to pedal?
All Lectric eBikes can be ridden in three different ways:
- Pedaling without any motor assist (as a regular bicycle)
- Pedaling with motor assist (five levels of assist)
- Pure throttle
How fast does an eBike go?
The speed of an ebike can vary depending on several factors, including the type of motor, battery power, and local regulations. Most ebikes are designed to assist riders up to a certain speed, typically between 20 to 28 miles per hour, known as the pedal-assist speed limit. However, some ebikes can reach higher speeds, especially those designed for off-road or performance-oriented riding. It's important to check local regulations regarding ebike speed limits, as they may vary depending on the region.
What are the different classifications of ebikes?
There are generally three classifications of ebikes based on their power assistance levels:
- Class 1: Pedal Assist (Pedelec) - These ebikes provide assistance only when the rider is pedaling and typically have a maximum assisted speed of 20 mph (32 km/h). They are equipped with a motor that provides assistance proportional to the rider's pedaling effort.
- Class 2: Throttle Assist - These ebikes feature a throttle that allows the rider to engage the motor without pedaling. They also have a maximum assisted speed of 20 mph (32 km/h), but the motor can be activated independently of pedaling.
- Class 3: Speed Pedelec- Similar to Class 1 ebikes, these models provide pedal assistance but with a higher maximum assisted speed of 28 mph (45 km/h). They are designed for faster commuting and recreational riding but may be subject to specific regulations and restrictions in some areas.
These classifications may vary slightly depending on local regulations and laws governing ebike use in different regions. It's essential to familiarize yourself with the specific classifications and regulations applicable to your location when choosing an ebike
Do you need a license to drive an ebike?
In many regions, you do not need a license to ride an ebike, especially if it meets certain criteria regarding power and speed. However, regulations vary depending on the country, state/province, and local jurisdiction. Generally, low-speed ebikes that have a maximum assisted speed of around 20 mph and a motor power output below a certain threshold may not require a license. It's important to check the specific laws and regulations in your area to determine whether a license is required for riding an ebike. Additionally, some regions may have age restrictions or other requirements for operating an ebike on public roads or trails.
Do eBikes need insurance?
Whether ebikes require insurance depends on various factors, including local laws, the type of ebike, and how it's used. In many places, ebikes are treated similarly to traditional bicycles, which typically do not require insurance for personal use. However, certain circumstances may warrant insurance coverage:
- Riding on public roads: If you ride your ebike on public roads, some jurisdictions may require liability insurance, especially if the ebike is capable of higher speeds or is classified as a motor vehicle.
- Ebikes with higher power or speed: In some regions, ebikes that exceed certain power or speed limits may be classified as mopeds or motorcycles, requiring insurance coverage similar to motor vehicles.
- Accidents and liability: While insurance may not be legally required, having coverage can provide financial protection in case of accidents, damage, or liability claims involving your ebike.
- Theft and damage: Insurance coverage can also help protect against theft, vandalism, or damage to your ebike, similar to coverage for other valuable possessions.
Before purchasing insurance for your ebike, it's essential to research and understand the specific requirements and options available in your area. Consulting with insurance providers knowledgeable about ebike coverage can help you determine the appropriate level of protection based on your needs and usage patterns.
How waterproof are Lectric eBikes?
All Lectric eBike's electrical components have an IP rating of 65! This means it is dust-tight and can withstand jetting water. See the IP code for more details.
Use caution when riding in wet conditions as it will take longer to use the brakes to slow down, and also when turning as the tires may slip. The electrical components on the bike are not waterproof.
The warranty for all Lectric eBikes does not cover water damage.
What is the maximum rider weight for Lectric eBikes?
Check out the list below to see the rider weight for each Lectric eBike model:
XPress: 330 lbs
XPeak: 330 lbs
XPedition: 330 lbs
XP Lite: 220 lbs
XP Trike: 330 lbs
XP 3.0: 255 lbs
Lectric ONE: 330 lbs
How much do Lectric eBikes weigh?
Check out the list below to see the weight of each Lectric eBike model:
XPress: 58 lbs
XPeak: 67 lbs
XPedition: 68 lbs
XP Lite: 46 lbs
XP Trike: 69.5 lbs
XP 3.0: 64 lbs
Lectric ONE: 55 lbs
What is the top speed for all Lectric eBikes?
Check out the list below to see the top speed for each Lectric eBike model:
XPress: 28mph (45km)
XPeak: 28mph (45km)
XPedition: 28mph (45km)
XP Lite: 20mph (32km)
XP Trike: 14mph (23km)
XP 3.0: 28mph (45km)
Lectric ONE: 28mph (45km)
What are the recommended rider heights for Lectric eBikes?
Check out the list below to see the rider height range for each Lectric eBike model:
XPress High-Step: 5'4 - 6'4
XPress Step-Thru: 5'2 - 6'3
XPeak High-Step: 5'7 - 6'5
XPeak Step-Thru: 5'2 - 6'3
XPedition: 4'11 - 6'5
XP Lite: 4'8 - 6'2
XP Trike: 4'10 - 6'4
XP 3.0: 5'0 - 6'4
XP Step-Thru 3.0: 4'10 - 6'3
Lectric ONE: 5'2 - 6'4
Riders within these height ranges may comfortably ride the bikes by simply adjusting the seat and handlebars to their height preference.
What is the classification of Lectric eBikes?
All Lectric eBikes ship as a class 2 electric bike, meaning it has a throttle capable of propelling the bike at speeds of up to 20mph. Pedal assist will also be limited to 14 or 20mph in this setting depending on the model.
If you would like to go faster, the XP, XPedition, XPeak, XPress, and the Lectric ONE bikes can be unlocked to achieve class 3 settings. This will allow you to reach pedal-assist speeds of up to 28mph!
It is just a simple change of the settings on the display to increase the max speed. For instructions on how to change the top speed of the bike please check your user manual, or click here for an article explaining the process.
Please note that due to federal eBike laws, the throttle will remain limited to 20mph regardless. You must check your local regulations before unlocking your bike as laws vary by state, municipality, and in some cases trail.
Can the Lectric eBikes handle extreme temperatures?
All Lectric eBikes are designed to handle extreme temperatures to a point. Mechanical and electrical components on the bikes react differently to various temperatures and weather conditions.
Cold Weather:
When riding in cold temperatures, be sure to keep your bike running until you reach your destination to prevent your motor from freezing up on you. Please note that colder temperatures can impact your battery's range and you may notice it fades quicker than in warmer months. As always, we highly recommend storing your battery inside at moderate temperatures when possible!
Hot Weather:
Our eBikes are designed to handle extreme temperatures to a point. Our headquarters is located in Phoenix, AZ, so we understand heat! Extreme temperatures can impact your battery's performance, so you may see your battery drain faster in excessive heat. As always, we recommend storing your battery inside at moderate temperatures whenever possible.
How do I store my ebike battery for the winter?
Storing your ebike battery properly during the winter is essential to maintain its performance and longevity. Here are some tips for winter storage:
- Charge the Battery: Before storing your ebike battery, make sure it's fully charged. This helps prevent it from self-discharging completely during storage, which can lead to irreversible damage.
- Store in a Cool, Dry Place: Find a cool, dry location to store your ebike battery during the winter months. Avoid areas with extreme temperatures, such as unheated garages or sheds, as freezing temperatures can harm the battery.
- Check Charge Periodically: It's a good idea to check the battery's charge periodically during storage, approximately every 1-2 months. If the charge level drops significantly, recharge the battery to around 50% capacity to maintain its health.
- Avoid Extreme Temperatures: Protect the battery from exposure to extreme cold or heat. Extreme temperatures can affect the battery's performance and lifespan. If possible, store the battery indoors at room temperature.
- Disconnect the Battery: If your ebike allows it, disconnect the battery from the bike during storage. This prevents any potential drain on the battery from the bike's electrical systems.
- Store Upright: Store the battery in an upright position to prevent any leaks or spills. Avoid placing heavy objects on top of the battery during storage.
- Refer to Manufacturer's Guidelines: Follow any specific storage recommendations provided by the ebike manufacturer. They may have additional guidelines tailored to your particular battery model.
By following these tips, you can ensure that your ebike battery remains in good condition throughout the winter and is ready for use when the riding season resumes.
What is a torque sensor on an ebike?
A torque sensor on an ebike is a component that measures the force or pressure applied to the pedals by the rider. It detects the amount of torque or rotational force exerted on the pedal crank and translates this information into signals that control the assistance provided by the electric motor. Essentially, the torque sensor determines how much power the motor should deliver based on the rider's pedaling effort.
Original: $2,399.00
-65%$2,399.00
$839.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Lectric ONE Long-Range eBike
Electric Belt Drive Commuter Bike
For Lectric eBikes products, we are no longer able to sell them online. They are only available for purchase in person at our warehouse.
eBike Overview
The Lectric ONE is the pinnacle of innovation, blending cutting-edge design with premium automotive-grade technology to redefine what a commuter eBike can be. At its core, the precision-engineered Pinion smart gearbox pairs seamlessly with the virtually maintenance-free Gates Carbon Drive Belt, delivering effortless, automatic shifting and an ultra-smooth ride.
Its sleek aerodynamic frame, color LCD display, and high-efficiency city tires elevate performance, while hydraulic disc brakes, brake-responsive taillights, and reflective detailing maximize safety. Proudly named 2024’s Best Value Commuter by Bicycling Magazine.
Behind the Design: Lectric ONE
The Lectric ONE is built for those who seek simplicity and award-winning design, featuring high end components from industry-leading automotive companies that allow you to commute with ease. Join us as we cover the comprehensive design process on our new eBike and see why Bicycling Magazine selected the Lectric ONE as 2024's Best Value Commuter.
TOP SPEED
28 mph
RANGE
up to 60 miles
PAYLOAD CAPACITY
330 lbs
MOTOR POWER
1310W peak
PINION GEARBOX
Semi-Automatic Shifting
TOOL-FREE ASSEMBLY
Yes
⚠ Disclaimer: Must be 16 years of age or older to ride.
Features
Features
Pinion Gearbox with Smart.Shift
The enclosed gearbox is weather-sealed and easily paired with the Pinion Smart.Shift app, allowing riders to pre-select gears for effortless auto-shifts.
Gates Carbon Drive Belt System
This automotive-grade belt is carbon fiber-reinforced and nearly maintenance-free providing a chainless drivetrain that's clean, quiet, smooth, and strong.
Impressive Power
Sutto motor with 1310W of peak power combined with our new Stealth M24 technology delivers a 400% quieter motor* built for the long haul with a 48V, 14Ah (672 Wh) Lithium-Ion battery certified to UL 2271. The Lectric ONE is also certified to UL 2849.
New Color LCD Display
An all-new color display featuring a USB-A port adds an aesthetic look while offering clear and concise information.
Size Guide
Size Guide
Bike Dimensions 63"L x 16"W x 44"H
Bike Dimensions with Front Tire removed 58"L x 16"W x 34"H
Stand Over Height 18.5"
Handlebar Height 40"
Bike Weight 48 lbs w/o battery.
Bike Weight with Front Tire removed 50 lbs.
Payload Capacity Max: 330 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Rack Weight 20 lbs, Max Rear Rack Weight 30 lbs.
Rider Payload Capacity Max: 330 lbs.
Seat to Ground Min: 31” / Max: 39.5”
Handlebar Width 26"
Rider Height 5’2” - 6’4”
Handlebar Reach 20” - 24”
Specifications
Specifications
Pedal-Assist
Five levels of pedal-assist and an ergonomic thumb throttle deliver the speed and power to own the road as a Class 1, 2, or 3 eBike.**
Thumb Throttle
An ergonomic below-the-bar trigger throttle on the left hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue.
Color LCD Display
A backlit, heads-up color LCD display with a USB-A port provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.
Motor Controller
24 amp controller is IP-65 rated and potted for weather proofing and thermal management.
Motor
A Sutto 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before. New Stealth M24 technology is 400% quieter*, delivering a hushed motor experience without sacrificing power.
Battery
Available with a Long-Range 48V 14ah (672 Wh) lithium-ion battery certified to UL 2271 to power your ride for up to 60 miles, respectively.†‡ The Lectric ONE is also certified to UL 2849.
Bike Weight
Total bike weight is 48lbs with the 7lb battery removed.
City Tires
20x2.5'' city tires featuring a reflective strip are equipped with 3mm Hippo Skin with an Aramid Floc Breaker. Shark Skin Protection on the sidewall offers pinch flat protection and all-weather reliability. Slime is installed to prevent flat tires at no additional cost.
Front Fork
This rigid fork is fully aluminum and ultra lightweight, featuring a thru axle dropout.
Thru Axle
The front wheel features a Thru Axle wheel attachment system for tool-free installation. This feature ensures a straight wheel, consistent brake rotor alignment, and handling stability. Remove the wheel in minutes for an easy and light-weight transport.
Pinion Gearbox
With the Pinion C1.6i six-speed sealed weatherproof gearbox, shifting is done at the touch of a button – quickly, ergonomically, and intuitively. The system shifts while riding, while stationary, and while under load.
Pinion Smart.Shift App
All gearbox functions are combined in the Pinion Smart.Shift App, which can be easily paired and customized to suit your preferences. A pre-select feature automatically sets the rider's gears, allowing effortless auto-shifts, while a convenient start-select feature lets riders dictate their starting gear ahead of time, allowing for split-second starts.
Cranks
Pinion aluminum cranks are 165mm in length.
Belt Drive
Gates CDC 113-tooth Carbon Drive Belt System is lightweight and carbon fiber-reinforced. The belt’s performance is nearly maintenance-free while providing a chainless drivetrain that’s clean, quiet, smooth, and strong.
Gates Carbon Drive App
The Gates app is used to measure belt tension sonically. The belt can be plucked like a guitar string while the app uses the microphone on a mobile device to read the vibration frequency and compares it to a chart to determine if any adjustments are needed.
Belt Cogs
A Gates CDC 24-tooth steel rear belt cog is paired with an aluminum CDX 39-tooth front cog providing a ratio-optimized performance to accommodate a wide range of speeds.
Brakes
Hydraulic mineral oil brakes and 180mm rotors (1.8mm thick) offer ultimate stopping power and peace of mind in wet or dry conditions.
Lectric PWR™
Lectric's Pedal Assist Wattage Regulation (PWR) programming allows for an improved Pedal Assist experience by assisting the rider up to a certain power level for each PAS setting, instead of limiting the assistance by speed alone.
PAS Sensor
Lectric's PWR™ allows the rider to control the eBike's output with no additional effort so that a torque sensor is not necessary for smooth rides. Instead, the Lectric ONE has a simply designed and affordable cadence sensor with 96 magnets simulated so you can reach high speeds with ease.
Safety Lights
An integrated safety system, featuring a headlamp and a brake-activated taillight powered by the battery allows you to be seen at any time of day.
Charging
An external charging port provides riders with the option to charge the eBike without removing the battery. The Lectric ONE comes standard with a 2amp charger for 5-7 hour charging.
Telescoping Seat Post
An adjustable and removable seat post allows riders to reach a range of heights while maintaining comfort and stability.
Adjustable Handlebar Stem
Easily adjustable handlebar stem riser includes a quick-release lever to comfortably adjust your handlebar reach to your liking; bring your handlebars toward you or push them further back.
Removable Pedals
Quick-release pedals easily detach from the bike for compact transport.
Lock-on Grips
Ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.
Saddle
A custom-designed saddle compliments a sportier look while adding comfort so you can ride longer.
Kickstand
A heavy-duty side-sweeping kickstand located near the chain stay keeps the eBike upright.
Accessory Mounting Points
The frame features multiple mounting points throughout the eBike for various accessory combinations.
Hidden Cable Routing
The down tube of the frame houses the main cables for a premium experience at no extra cost.
Frame
6000-series-aluminum frame is sturdy yet lightweight. The chainstays feature vertical dropouts and speciality designed splits on each side for easy access to the belt drive.
Green Packaging
Packaging components are biodegradable and easily recyclable.
One Minute, Tool-Free Assembly
Simply attach the quick-release pedals, unfold the handlebar stem, and install the front wheel via the thru axle.
Safety Certified
The Lectric ONE is certified to UL 2849. Additionally, the ONE's lithium-ion battery is certified to UL 2271.
* As compared to previous 750W Lectric motors. ** Where permitted by state law. † Range can vary due to weight load, terrain, weather and other conditions. ‡ Click here for information on battery safety.
What’s in the Box
What’s in the Box
- City tires with 3mm Hippo Skin
- Battery and Charger
- Integrated Color LCD Display
- Integrated Front Light and Rear Brake Light
- Special Offer: FREE Rear Rack
- Special Offer: FREE Fenders
Manuals & Videos
Manuals & Videos
Your First Ride
The first time riding your new eBike can be a little daunting, which is why we have helpful step-by-step instructions that walk you through opening, unboxing, setting up, and an overview of all of the features so you can ride with confidence!
It is important to read the entirety of the user manual before taking your first ride.
Here is our 'First Ride' YouTube video(s) that will walk you through how to set up your new eBike:
Click Here to watch on our Youtube Channel
Below are some key points and steps from the User Manual that apply to all bikes!
Unboxing
Congratulations on your purchase of a new Lectric eBike!
Inside the box, you will find your new bike, a charger, keys, and a digital user manual. Before removing the packaging material from the bike, remove all items from the box and make sure everything listed above is present. If anything is missing or damaged contact Lectric eBikes immediately for assistance.
The bike may require adjustments upon being received and unboxed, as shipping can sometimes be bumpy. When doing your first adjustment and inspecting the bike before riding, we recommend seeking professional help from a reputable, certified bicycle mechanic.
Follow the instructions in your user manual to set up your bike and insert the handlebars, seat post, or other unassembled components depending on the model of the bike. For more information please refer to the 'Getting Started' section in the user manual.
Inspection
1. Check that the tire and the tire bead are seated just inside the rim. Inflate your bike tires to a pressure that is within the recommended range printed on the side of the bike tire sidewalls. When inflating, gradually inflate in 5-10PSI increments while checking to make sure the tire bead is fully seated on the rim. If you notice the tire bead is not fully seated at any point during inflation, deflate the tire completely and reseat the tire bead before reinflating.
2. Check your seat post clamp and, if featured on your model, the handlebar stem quick-releases. Unlatch the quick releases and tighten by turning the bolt clockwise. Make sure all quick releases are tightened to the torque listed in the Recommended Torque Values section of the manual. The page number of this section can be found by referring to the table of contents at the beginning of the manual.
3. Ensure your seat post and handlebar stem are inserted past their minimum insertion points as indicated by the markings on them. Reference the 'Preparing to Ride' section of the manual for photos and complete instructions. Failure to insert past the minimum insertion point will place undue stress on these components increasing the risk of sudden failure potentially resulting in harm, injury, or death.
4. If you have a folding eBike, check to make sure your frame folding latch and handlebar folding latch are locked. Reference the 'Folding and Unfolding the Bike' section of the manual for photos and complete instructions. The page number of this section can be found by referring to the table of contents at the beginning of the manual. Double-check to make sure both latches are secure and locked before riding. Failure to do so may result in the bike folding while in use potentially causing serious harm to the rider.
Turn the bike on
5. Ensure your battery is fully charged before your first ride.
7. If the battery is not already inside the bike or on the mount, slide it inside of the frame or on the mount and lock it in position. Once the battery is secured, insert the key into the battery via the port (for the XP Lite & XP 1.0, 2.0, and 3.0s, the key port will be on the underbelly of the frame). See the Battery section of the manual for further information on the operation of the battery.
8. Push the key in firmly. Turn the key to lock the battery to the bike, and turn it to the ON position. You will not be able to remove the keys on certain models of Lectric eBikes.
9. Hold down the power button on the button pad located on the left side of the handlebars until the display comes on.
Operating your bike
10. Select a level of pedal assist using the plus and minus buttons on the button pad. Pedal assist level 1 is the lowest level of assist and pedal assist level 5 is the highest level of assist. Level zero will provide no assistance.
11. The handlebar features a throttle. To operate the throttle, ensure the pedal assist level is set above 0, then engage the throttle slowly according to how much speed and acceleration you want to achieve. The farther you twist or push on the throttle from its resting position, the more power propels the bike forward. When the bike is at a complete stop, turn the display off. This will ensure that the motor will not activate until the display is turned back on and the rider is ready to go.
Note: Exercise extreme caution using the throttle. When at a complete stop with the bike turned on, be careful not to engage the throttle unknowingly or the bike could throw you off balance and cause serious harm, injury, or death.
12. To turn on the headlight and tail light, press and hold the plus button on the button pad. The battery must be on in order for the headlight to work.
Now you're ready to ride! Happy trails!
Product Manual
User Manuals
Before operating your Lectric eBike, please read the User Manual, Universal Electric Bicycle Owner’s Manual, and Lithium-Ion Battery Safety Manual for essential usage and safety guidelines.
To ensure each customer gets the most relevant and updated information at all times, we have transitioned to online user manuals that are kept up to date by our team. We also help save a few trees along the way!
Download the Manual(s) for our bikes below:
Click to download > Lectric ONE User Manual
Click to download > Universal Electric Bicycle Owner's Manual
Click to download > Pinion C-Line Gearbox User Manual
Click to download > Pinion Smart.Shift User Manual
Click to download > Gates Belt Drive User Manual
Service Videos & Tutorials
Click to watch > Lectric eBike Service Center
If you have any questions, please don't hesitate to contact our support team at [email protected] or 412-567-4390.
FAQ
Lectric ONE FAQ
What luxury features make the Lectric ONE ideal for commuting?
The Lectric ONE is equipped with a Pinion gearbox and Gates Carbon Drive belt system, offering a luxury ride that combines durability with low maintenance. The seamless shifting and quiet operation of this ebike improves the commuting experience.
How fast does the Lectric ONE go?
The Lectric ONE eBike reaches a top speed of 28 mph when using pedal assist, although the throttle mode is limited to 20 mph. This makes it a Class 3 eBike, offering a combination of speed and power for commuting.
What advantages does the automotive-grade technology provide to Lectric ONE riders?
Automotive-grade technology in the Lectric ONE provides unmatched performance, durability, and ease of use, making it a top choice for commuters who demand the best when it comes to efficiency and comfort.
What exactly is an eBike?
An ebike, short for electric bike, is a bicycle equipped with an electric motor that provides propulsion assistance to the rider. Unlike traditional bicycles that rely solely on human pedaling power, ebikes feature an integrated electric motor that assists the rider's pedaling efforts, making it easier to pedal and allowing for greater speed and distance with less exertion. The level of assistance provided by the electric motor can typically be adjusted by the rider, allowing for customizable riding experiences tailored to individual preferences and riding conditions. Ebikes are increasingly popular for commuting, recreation, and fitness, offering an eco-friendly and efficient mode of transportation.
How do eBikes work?
Ebikes, short for electric bikes, work by combining traditional pedal power with an electric motor to provide assistance to the rider. Here's how they typically work:
- Pedal Assistance: Most ebikes are equipped with a pedal-assist system (PAS) that detects when the rider is pedaling and provides additional power from the electric motor to assist the rider's effort. The level of assistance can usually be adjusted using a control panel or display on the handlebars.
- Electric Motor: Ebikes are powered by an electric motor, which is usually located either in the hub of one of the wheels (hub motor) or near the crankset (mid-drive motor). When activated, the motor provides assistance to the pedals, making it easier for the rider to pedal and maintain speed, especially when going uphill or against strong winds.
- Battery: The electric motor is powered by a rechargeable battery, typically mounted on the frame of the bike. The battery's capacity determines the range and duration of assistance provided by the motor. Riders can usually choose from different power levels or modes to adjust the amount of assistance based on their preferences and riding conditions.
- Control and Display: Many ebikes feature a control panel or display on the handlebars, allowing riders to monitor and adjust settings such as power level, battery status, and speed. Some ebikes also come with additional features like built-in lights, USB charging ports, and smartphone connectivity.
Overall, ebikes offer a versatile and efficient mode of transportation, combining the benefits of traditional cycling with the convenience and assistance of electric power. They're suitable for a wide range of riders, from commuters looking to navigate city streets to outdoor enthusiasts exploring off-road trails.
How do I ride? Do I have to pedal?
All Lectric eBikes can be ridden in three different ways:
- Pedaling without any motor assist (as a regular bicycle)
- Pedaling with motor assist (five levels of assist)
- Pure throttle
How fast does an eBike go?
The speed of an ebike can vary depending on several factors, including the type of motor, battery power, and local regulations. Most ebikes are designed to assist riders up to a certain speed, typically between 20 to 28 miles per hour, known as the pedal-assist speed limit. However, some ebikes can reach higher speeds, especially those designed for off-road or performance-oriented riding. It's important to check local regulations regarding ebike speed limits, as they may vary depending on the region.
What are the different classifications of ebikes?
There are generally three classifications of ebikes based on their power assistance levels:
- Class 1: Pedal Assist (Pedelec) - These ebikes provide assistance only when the rider is pedaling and typically have a maximum assisted speed of 20 mph (32 km/h). They are equipped with a motor that provides assistance proportional to the rider's pedaling effort.
- Class 2: Throttle Assist - These ebikes feature a throttle that allows the rider to engage the motor without pedaling. They also have a maximum assisted speed of 20 mph (32 km/h), but the motor can be activated independently of pedaling.
- Class 3: Speed Pedelec- Similar to Class 1 ebikes, these models provide pedal assistance but with a higher maximum assisted speed of 28 mph (45 km/h). They are designed for faster commuting and recreational riding but may be subject to specific regulations and restrictions in some areas.
These classifications may vary slightly depending on local regulations and laws governing ebike use in different regions. It's essential to familiarize yourself with the specific classifications and regulations applicable to your location when choosing an ebike
Do you need a license to drive an ebike?
In many regions, you do not need a license to ride an ebike, especially if it meets certain criteria regarding power and speed. However, regulations vary depending on the country, state/province, and local jurisdiction. Generally, low-speed ebikes that have a maximum assisted speed of around 20 mph and a motor power output below a certain threshold may not require a license. It's important to check the specific laws and regulations in your area to determine whether a license is required for riding an ebike. Additionally, some regions may have age restrictions or other requirements for operating an ebike on public roads or trails.
Do eBikes need insurance?
Whether ebikes require insurance depends on various factors, including local laws, the type of ebike, and how it's used. In many places, ebikes are treated similarly to traditional bicycles, which typically do not require insurance for personal use. However, certain circumstances may warrant insurance coverage:
- Riding on public roads: If you ride your ebike on public roads, some jurisdictions may require liability insurance, especially if the ebike is capable of higher speeds or is classified as a motor vehicle.
- Ebikes with higher power or speed: In some regions, ebikes that exceed certain power or speed limits may be classified as mopeds or motorcycles, requiring insurance coverage similar to motor vehicles.
- Accidents and liability: While insurance may not be legally required, having coverage can provide financial protection in case of accidents, damage, or liability claims involving your ebike.
- Theft and damage: Insurance coverage can also help protect against theft, vandalism, or damage to your ebike, similar to coverage for other valuable possessions.
Before purchasing insurance for your ebike, it's essential to research and understand the specific requirements and options available in your area. Consulting with insurance providers knowledgeable about ebike coverage can help you determine the appropriate level of protection based on your needs and usage patterns.
How waterproof are Lectric eBikes?
All Lectric eBike's electrical components have an IP rating of 65! This means it is dust-tight and can withstand jetting water. See the IP code for more details.
Use caution when riding in wet conditions as it will take longer to use the brakes to slow down, and also when turning as the tires may slip. The electrical components on the bike are not waterproof.
The warranty for all Lectric eBikes does not cover water damage.
What is the maximum rider weight for Lectric eBikes?
Check out the list below to see the rider weight for each Lectric eBike model:
XPress: 330 lbs
XPeak: 330 lbs
XPedition: 330 lbs
XP Lite: 220 lbs
XP Trike: 330 lbs
XP 3.0: 255 lbs
Lectric ONE: 330 lbs
How much do Lectric eBikes weigh?
Check out the list below to see the weight of each Lectric eBike model:
XPress: 58 lbs
XPeak: 67 lbs
XPedition: 68 lbs
XP Lite: 46 lbs
XP Trike: 69.5 lbs
XP 3.0: 64 lbs
Lectric ONE: 55 lbs
What is the top speed for all Lectric eBikes?
Check out the list below to see the top speed for each Lectric eBike model:
XPress: 28mph (45km)
XPeak: 28mph (45km)
XPedition: 28mph (45km)
XP Lite: 20mph (32km)
XP Trike: 14mph (23km)
XP 3.0: 28mph (45km)
Lectric ONE: 28mph (45km)
What are the recommended rider heights for Lectric eBikes?
Check out the list below to see the rider height range for each Lectric eBike model:
XPress High-Step: 5'4 - 6'4
XPress Step-Thru: 5'2 - 6'3
XPeak High-Step: 5'7 - 6'5
XPeak Step-Thru: 5'2 - 6'3
XPedition: 4'11 - 6'5
XP Lite: 4'8 - 6'2
XP Trike: 4'10 - 6'4
XP 3.0: 5'0 - 6'4
XP Step-Thru 3.0: 4'10 - 6'3
Lectric ONE: 5'2 - 6'4
Riders within these height ranges may comfortably ride the bikes by simply adjusting the seat and handlebars to their height preference.
What is the classification of Lectric eBikes?
All Lectric eBikes ship as a class 2 electric bike, meaning it has a throttle capable of propelling the bike at speeds of up to 20mph. Pedal assist will also be limited to 14 or 20mph in this setting depending on the model.
If you would like to go faster, the XP, XPedition, XPeak, XPress, and the Lectric ONE bikes can be unlocked to achieve class 3 settings. This will allow you to reach pedal-assist speeds of up to 28mph!
It is just a simple change of the settings on the display to increase the max speed. For instructions on how to change the top speed of the bike please check your user manual, or click here for an article explaining the process.
Please note that due to federal eBike laws, the throttle will remain limited to 20mph regardless. You must check your local regulations before unlocking your bike as laws vary by state, municipality, and in some cases trail.
Can the Lectric eBikes handle extreme temperatures?
All Lectric eBikes are designed to handle extreme temperatures to a point. Mechanical and electrical components on the bikes react differently to various temperatures and weather conditions.
Cold Weather:
When riding in cold temperatures, be sure to keep your bike running until you reach your destination to prevent your motor from freezing up on you. Please note that colder temperatures can impact your battery's range and you may notice it fades quicker than in warmer months. As always, we highly recommend storing your battery inside at moderate temperatures when possible!
Hot Weather:
Our eBikes are designed to handle extreme temperatures to a point. Our headquarters is located in Phoenix, AZ, so we understand heat! Extreme temperatures can impact your battery's performance, so you may see your battery drain faster in excessive heat. As always, we recommend storing your battery inside at moderate temperatures whenever possible.
How do I store my ebike battery for the winter?
Storing your ebike battery properly during the winter is essential to maintain its performance and longevity. Here are some tips for winter storage:
- Charge the Battery: Before storing your ebike battery, make sure it's fully charged. This helps prevent it from self-discharging completely during storage, which can lead to irreversible damage.
- Store in a Cool, Dry Place: Find a cool, dry location to store your ebike battery during the winter months. Avoid areas with extreme temperatures, such as unheated garages or sheds, as freezing temperatures can harm the battery.
- Check Charge Periodically: It's a good idea to check the battery's charge periodically during storage, approximately every 1-2 months. If the charge level drops significantly, recharge the battery to around 50% capacity to maintain its health.
- Avoid Extreme Temperatures: Protect the battery from exposure to extreme cold or heat. Extreme temperatures can affect the battery's performance and lifespan. If possible, store the battery indoors at room temperature.
- Disconnect the Battery: If your ebike allows it, disconnect the battery from the bike during storage. This prevents any potential drain on the battery from the bike's electrical systems.
- Store Upright: Store the battery in an upright position to prevent any leaks or spills. Avoid placing heavy objects on top of the battery during storage.
- Refer to Manufacturer's Guidelines: Follow any specific storage recommendations provided by the ebike manufacturer. They may have additional guidelines tailored to your particular battery model.
By following these tips, you can ensure that your ebike battery remains in good condition throughout the winter and is ready for use when the riding season resumes.
What is a torque sensor on an ebike?
A torque sensor on an ebike is a component that measures the force or pressure applied to the pedals by the rider. It detects the amount of torque or rotational force exerted on the pedal crank and translates this information into signals that control the assistance provided by the electric motor. Essentially, the torque sensor determines how much power the motor should deliver based on the rider's pedaling effort.
