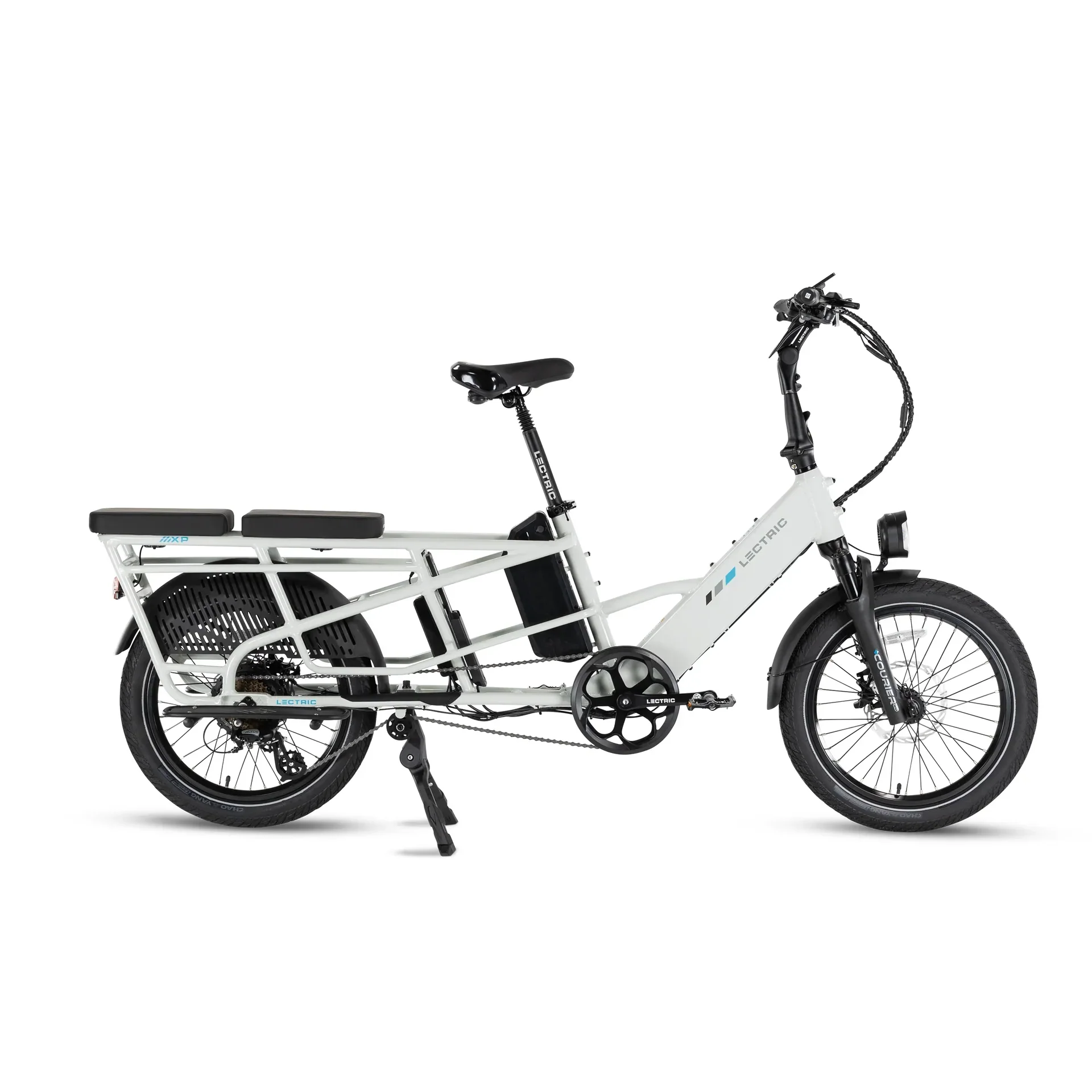

Lectric XPedition2 Stratus White eBike
Lectric XPedition2 Stratus White eBike
Electric Cargo Bike
For Lectric eBikes products, we are no longer able to sell them online. They are only available for purchase in person at our warehouse.
eBike Overview
America's best-selling cargo eBike is back and better than ever with a bold new redesign. Meet the XPedition 2.0—Lectric’s most powerful and refined cargo solution to date. Built to tackle steep climbs and haul up to 450 lbs, it’s designed for families, commuters, and adventure-seekers alike. This upgraded version features a precision torque sensor for smoother pedal assist, a robust 1,310W peak motor, an 8-speed Shimano drivetrain, a full-color LCD display, and an extended frame with reinforced tubing for improved balance and strength.
Glide over rough roads with the new front suspension fork, and go the distance with an impressive 35Ah battery capacity. The XPedition 2.0 also supports a growing range of custom accessories—making it your ultimate all-purpose ride for work, errands, or weekend escapes.
624Watt Hours
60Mile Range
13Amp hours
Behind the Design: XPedition 2.0
Take a seat with co founders Levi and Robby, and Director of New Product Development, Matt, as they explore the design behind new features and cutting-edge technology on our upgraded cargo eBike.
TOP SPEED
28 mph
RANGE
up to 60 miles
PAYLOAD CAPACITY
450 lbs
MOTOR POWER
1310W peak
SUSPENSION FORK
50mm of travel
TOOL-FREE ASSEMBLY
Yes
⚠ Disclaimer: Must be 16 years of age or older to ride.
Features
Features

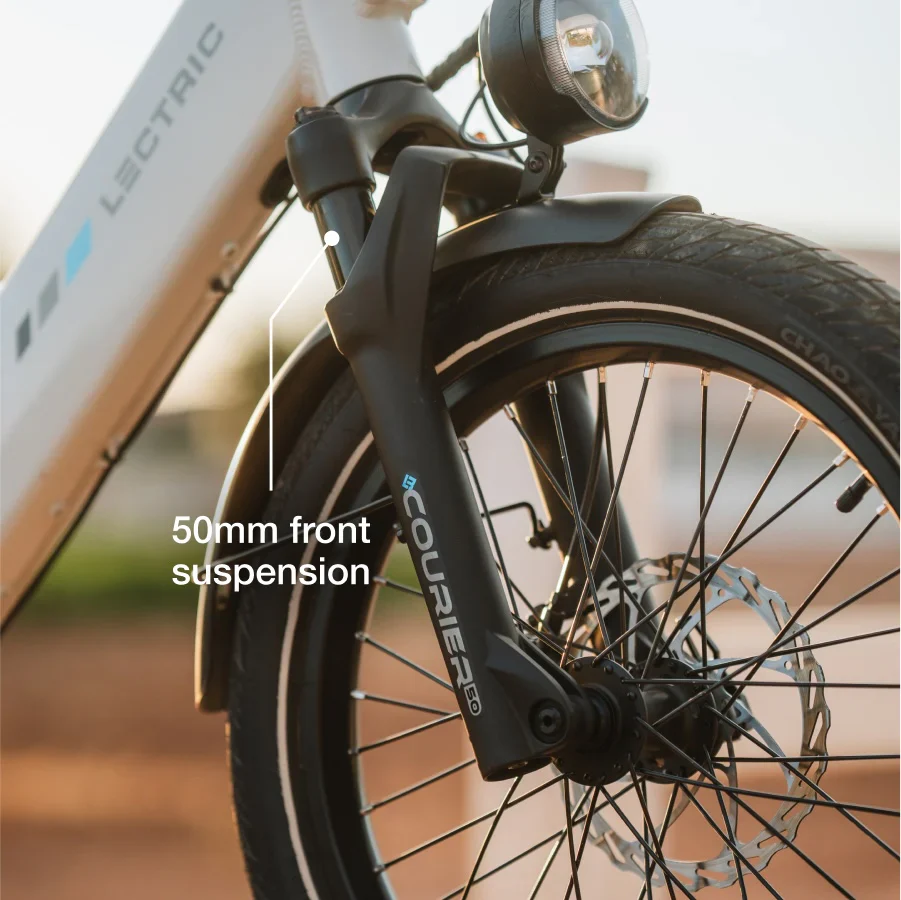

Courier 50 Suspension Fork
A custom eBike-rated dual-spring suspension front fork features 50mm of adjustable travel for a smooth and controlled ride.
Torque Sensor
A tailor-made torque sensor uses PWR+ technology - helping to manage power output based on the rider’s pedaling effort. It allows riders to reach class 3 speeds easily & with more control.
Impressive Power
1310W of peak power combined with our M24 technology delivers a quiet motor that's built for the long haul with a 48V, 13Ah (624Wh) Lithium-Ion battery certified to UL 2271. The XPedition 2.0 is also certified to UL 2849.
Color LCD Display
A color display featuring a USB-C port adds an aesthetic look while offering clear and concise information.
Size Guide
Size Guide
Bike Unfolded 77"L x 17"W x 46"H
Stand Over Height 21"
Handlebar Height 32"-49" (adjustable)
Bike Folded 70"L x 10"W x 30"H
Payload Capacity Max: 450 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 30 lbs, Max Rear Rack Weight 300 lbs.
Rear Rack Payload Capacity Max: 300 lbs.
Rider Payload Capacity Max: 330 lbs.
Seat to Ground Max: 49” / Min: 32”
Handlebar Width 25"
Rider Height 4’11” - 6’5”
Rear Rack 36.7”L x 6.8”W (300lb capacity)
Handlebar Reach 17” - 24.5”
Specifications
Specifications
Pedal-Assist
Five levels of pedal-assist and a throttle delivers the speed and power to own the road as a Class 1, 2, or 3 eBike.*
Thumb Throttle
An ergonomic below-the-bar trigger throttle on the left hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue.
Motor
A 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before.
Motor Controller
24 amp externally mounted controller is IP-65 rated and potted for weather proofing and thermal management.
Battery
A removable 48V, 13Ah (624Wh) lithium-ion battery certified to UL 2271 makes for a clean design while powering your ride for up to 60 miles on a single charge.** The XPedition is also certified to UL 2849.†

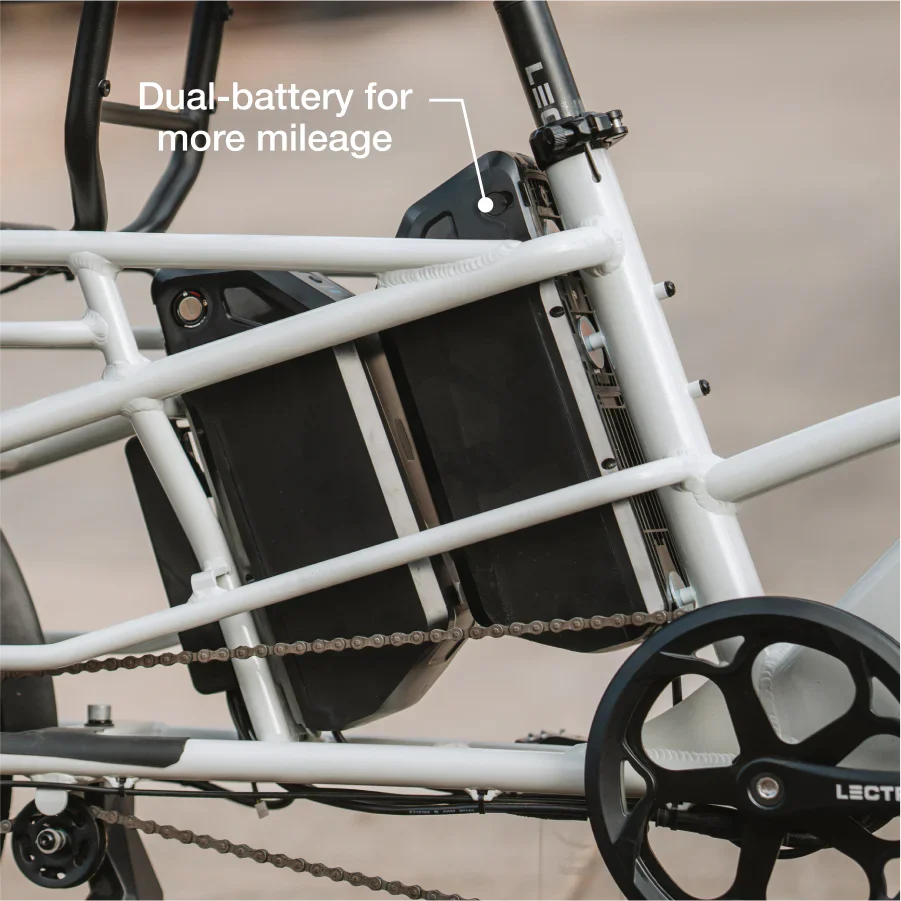

Smart-Draining Technology
A dual-battery system coupled with a battery isolator will drain 2 batteries at the same time allowing you to stay at higher voltage longer & reach up to 170 miles, respectively.** The bike will arrive with a terminal cover on the second battery mount but can be quickly removed to add a second battery at any time.

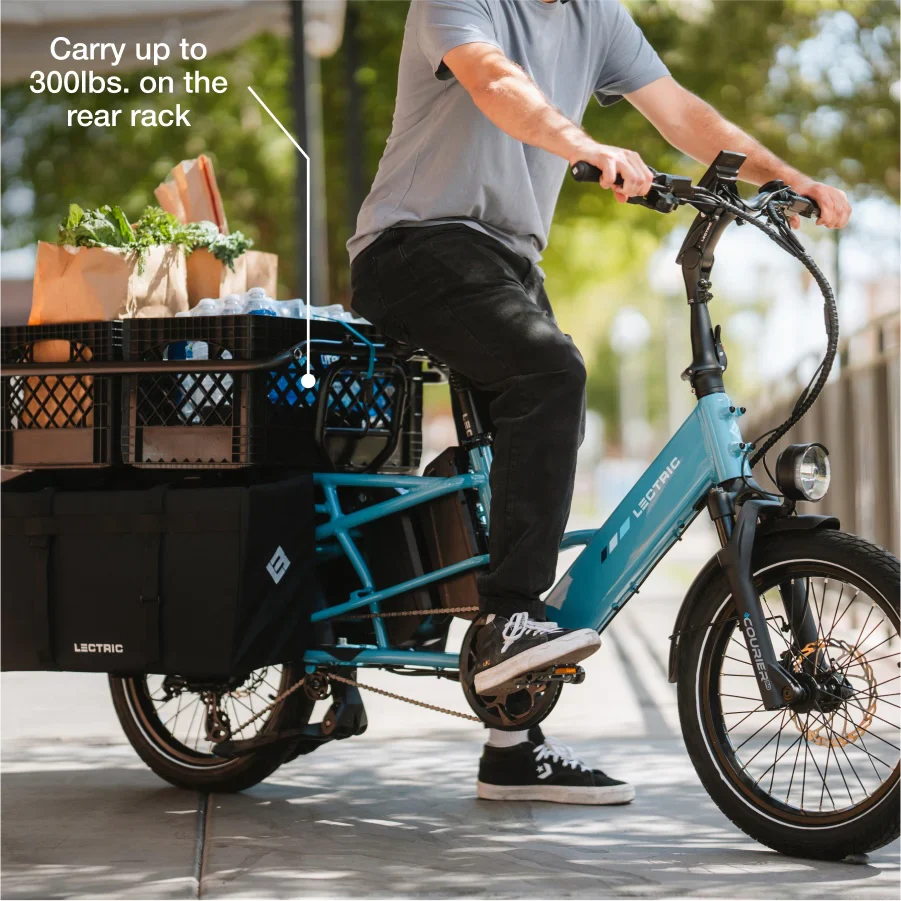

Rear Rack
A long rear rack integrated into the bike frame holds up to 300lbs and features a specially designed bar for mounting various accessory combinations. The rear rack also has 2 bulit-in mounting windows to easily install childrens seats & more.
Suspension Front Fork
The Courier 50 is a custom dual-spring suspension fork with up to 50mm of travel that provides shock absorption for a smooth and comfortable ride. Independent pre-load adjustments in each fork leg allow you to tailor each ride to your preference based on payload capacity and weight distribution.
LCD Display
A backlit color LCD display with a USB-C port provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.
Tires
Puncture-resistant 20” x 2.5” street tires make for a smoother ride with ease of control at hand. Slime is installed to prevent flat tires- at no additional cost.
Lectric PWR+™
Lectric's new Pedal Assist Wattage Regulation+ (PWR+) programming allows for an improved Pedal Assist experience by assisting the rider up to a certain power level for each PAS setting.
PAS Torque Sensor
A unique torque sensor combined with PWR+ technology, or Pedal Assist Wattage Regulation+, helps to manage power output based on the rider’s pedaling effort. With this technology, riders can reach higher speeds easily and with more control than ever before.
Drivetrain
11-32 tooth, 8-geared freewheel paired with a Shimano Altus derailleur and a thumb-triggered handlebar shifter allows you to swiftly change gears while riding to create pedaling efficiency and an easier riding experience at higher speeds.
Crankset
Forged aluminum, 52-tooth chainring is the perfect ratio for effortless 20-inch wheel pedaling.
Chain
A KMC Z8 steel chain paired with an idler pulley offers consistent tension and secure performance throughout your ride.
Brakes
Ultimate stopping power with hydraulic mineral oil brakes paired with 180mm rotors (2.2mm thick) offers peace of mind in wet or dry conditions.
Safety Lights
An integrated safety system, featuring a headlamp and a brake-activated rear light powered by the internal battery allows you to be seen at any time of day.
Turn Signals
Alert drivers, riders, and people nearby by indicating which direction you are headed with our new turn signals. Simply use the left or right arrows on the display control pad to trigger a blinking cadence on one side of the rear light.
Folding Dual-Leg Kickstand
A sturdy dual-leg kickstand with a 15+ inch spread located near the bottom bracket ensures the most balanced position for easy loading***. Pushing forward allows you to start riding without having to manually put the kickstand up with precious cargo.
Fenders
Polypropolene Fenders protect you and your ride from debris. The rear fender features an integrated side-pane wheel shroud to shield cargo and passengers from the eBikes rotating components.
Removable Pedals
Quick-release pedals easily detach from the bike for compact transport.
Lock-on Grips
Ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.
Saddle
A custom-designed saddle compliments a sporty look while adding comfort so you can ride longer.
Dual Seat Post
An adjustable and removable seat post with two different expansion points allows riders to reach a wide range of heights while maintaining comfort and stability.
Adjustable Handlebar Stem
Easily adjustable handlebar stem riser includes a quick-release lever to comfortably adjust your handlebar reach to your liking; bring your handlebars toward you or push them further back.
Thru Axle
The front wheel features a quick-release Thru Axle wheel attachment system for tool-free installation. This feature ensures a straight wheel, consistent brake rotor alignment, and handling stability.
Folding Capabilities
A foldable handlebar stem and adjustable seat height allows the XPedition to slide into compact spaces. Remove the pedals, seatpost, and front wheel in minutes for an easy and light-weight transport.
Weight
Total bike weight 65lbs without batteries installed. Each XPedition battery weighs 9lbs.
Charging
An external battery allows riders to charge the eBike without removing the battery.The XPedition comes standard with a 2amp charger for 5-7 hour charging but a 5amp Fast Charger can be purchased separately to speed up charging by 250%.
Hidden Cable Routing
A hollow top tube frame houses the main cables for a premium experience at no extra cost. Cables that may need to be serviced overtime are easily accessible and mounted to the underside of the frame.
Frame
The XPedition 2.0 frame is hydroformed to maximize strength to weight ratio. The lightweight and sturdy 6000 series aluminum features multiple mounting points throughout the eBike for various tool-free accessory combinations!
DIN Tested & Rated
A US-based bicycle testing lab put the XPedition through the rigorous DIN standard testing process to prove the frame and fork can handle a 450lb maximum payload ride after ride. The XPedition is rated to DIN 79010:2020-02.5.9.5.2.
Green Packaging
Packaging components are biodegradable and easily recyclable.
Color
Stratus White
One Minute, Tool-Free Assembly
Simply attach the quick-release pedals, unfold the handlebar stem, and install the front wheel via the quick-release thru axle.
Safety Certified
The Lectric XPedition 2.0 is certified to UL 2849. Additionally, the XPedition's lithium-ion battery is certified to UL 2271.
* Where permitted by state law. ** Range can vary due to weight load, terrain, weather and other conditions. † Click here for information on battery safety. *** You MUST hold onto the Lectric XPedition whenever loading cargo and/or a passenger. The kickstand is not designed to be used for loading cargo. Do not assume the bike is stable and balanced when using the kickstand. Always hold onto the bike when cargo is being loaded, in place, or attached to the bike.
What’s in the Box
What’s in the Box
- Integrated Rear Rack
- Fenders
- (1) Battery and (1) Charger
- Integrated Display
- Integrated Front light and Tail light
- Digital User Manual
Manuals & Videos
Manuals & Videos
Your First Ride
The first time riding your new eBike can be a little daunting, which is why we have helpful step-by-step instructions that walk you through opening, unboxing, setting up, and an overview of all of the features so you can ride with confidence!
It is important to read the entirety of the user manual before taking your first ride.
Here is our 'First Ride' YouTube video(s) that will walk you through how to set up your new eBike:
Click Here to watch on our Youtube Channel
Below are some key points and steps from the User Manual that apply to all bikes!
Unboxing
Congratulations on your purchase of a new Lectric eBike!
Inside the box, you will find your new bike, a charger, keys, and a digital user manual. Before removing the packaging material from the bike, remove all items from the box and make sure everything listed above is present. If anything is missing or damaged contact Lectric eBikes immediately for assistance.
The bike may require adjustments upon being received and unboxed, as shipping can sometimes be bumpy. When doing your first adjustment and inspecting the bike before riding, we recommend seeking professional help from a reputable, certified bicycle mechanic.
Follow the instructions in your user manual to set up your bike and insert the handlebars, seat post, or other unassembled components depending on the model of the bike. For more information please refer to the 'Getting Started' section in the user manual.
Inspection
1. Check that the tire and the tire bead are seated just inside the rim. Inflate your bike tires to a pressure that is within the recommended range printed on the side of the bike tire sidewalls. When inflating, gradually inflate in 5-10PSI increments while checking to make sure the tire bead is fully seated on the rim. If you notice the tire bead is not fully seated at any point during inflation, deflate the tire completely and reseat the tire bead before reinflating.
2. Check your seat post clamp and, if featured on your model, the handlebar stem quick-releases. Unlatch the quick releases and tighten by turning the bolt clockwise. Make sure all quick releases are tightened to the torque listed in the Recommended Torque Values section of the manual. The page number of this section can be found by referring to the table of contents at the beginning of the manual.
3. Ensure your seat post and handlebar stem are inserted past their minimum insertion points as indicated by the markings on them. Reference the 'Preparing to Ride' section of the manual for photos and complete instructions. Failure to insert past the minimum insertion point will place undue stress on these components increasing the risk of sudden failure potentially resulting in harm, injury, or death.
4. If you have a folding eBike, check to make sure your frame folding latch and handlebar folding latch are locked. Reference the 'Folding and Unfolding the Bike' section of the manual for photos and complete instructions. The page number of this section can be found by referring to the table of contents at the beginning of the manual. Double-check to make sure both latches are secure and locked before riding. Failure to do so may result in the bike folding while in use potentially causing serious harm to the rider.
Turn the bike on
5. Ensure your battery is fully charged before your first ride.
7. If the battery is not already inside the bike or on the mount, slide it inside of the frame or on the mount and lock it in position. Once the battery is secured, insert the key into the battery via the port (for the XP Lite & XP 1.0, 2.0, and 3.0s, the key port will be on the underbelly of the frame). See the Battery section of the manual for further information on the operation of the battery.
8. Push the key in firmly. Turn the key to lock the battery to the bike, and turn it to the ON position. You will not be able to remove the keys on certain models of Lectric eBikes.
9. Hold down the power button on the button pad located on the left side of the handlebars until the display comes on.
Operating your bike
10. Select a level of pedal assist using the plus and minus buttons on the button pad. Pedal assist level 1 is the lowest level of assist and pedal assist level 5 is the highest level of assist. Level zero will provide no assistance.
11. The handlebar features a throttle. To operate the throttle, ensure the pedal assist level is set above 0, then engage the throttle slowly according to how much speed and acceleration you want to achieve. The farther you twist or push on the throttle from its resting position, the more power propels the bike forward. When the bike is at a complete stop, turn the display off. This will ensure that the motor will not activate until the display is turned back on and the rider is ready to go.
Note: Exercise extreme caution using the throttle. When at a complete stop with the bike turned on, be careful not to engage the throttle unknowingly or the bike could throw you off balance and cause serious harm, injury, or death.
12. To turn on the headlight and tail light, press and hold the plus button on the button pad. The battery must be on in order for the headlight to work.
Now you're ready to ride! Happy trails!
Product Manual
User Manuals
Before operating your Lectric eBike, please read the User Manual, Universal Electric Bicycle Owner’s Manual, and Lithium-Ion Battery Safety Manual for essential usage and safety guidelines.
To ensure each customer gets the most relevant and updated information at all times, we have transitioned to online user manuals that are kept up to date by our team. We also help save a few trees along the way!
Download the Manual(s) for our bikes below:
Click to download > XPedition 2.0 User Manual
Click to download > Universal Electric Bicycle Owner's Manual
Service Videos & Tutorials
Click to watch > Lectric eBike Service Center
If you have any questions, please don't hesitate to contact our support team at [email protected] or 412-567-4390.
FAQ
XPedition FAQ
What is an electric cargo bike?
An electric cargo bike, known also as a cargo eBike, is a bicycle designed to carry heavy loads, groceries, or passengers. It has a sturdy frame and an electric motor to assist with pedaling.
What is the weight limit for a cargo ebike?
Cargo eBike weight limits vary by model, but are typically around 300 pounds or more, depending on the specific design. The Lectric XPedition cargo eBike can carry a whopping 450 pounds.
What is the difference between a cargo eBike and a standard eBike?
Cargo eBikes have extended frames, cargo capabilities, and higher weight capacities, while standard eBikes are designed for personal transportation and recreation.
What exactly is an eBike?
An ebike, short for electric bike, is a bicycle equipped with an electric motor that provides propulsion assistance to the rider. Unlike traditional bicycles that rely solely on human pedaling power, ebikes feature an integrated electric motor that assists the rider's pedaling efforts, making it easier to pedal and allowing for greater speed and distance with less exertion. The level of assistance provided by the electric motor can typically be adjusted by the rider, allowing for customizable riding experiences tailored to individual preferences and riding conditions. Ebikes are increasingly popular for commuting, recreation, and fitness, offering an eco-friendly and efficient mode of transportation.
How do eBikes work?
Ebikes, short for electric bikes, work by combining traditional pedal power with an electric motor to provide assistance to the rider. Here's how they typically work:
- Pedal Assistance: Most ebikes are equipped with a pedal-assist system (PAS) that detects when the rider is pedaling and provides additional power from the electric motor to assist the rider's effort. The level of assistance can usually be adjusted using a control panel or display on the handlebars.
- Electric Motor: Ebikes are powered by an electric motor, which is usually located either in the hub of one of the wheels (hub motor) or near the crankset (mid-drive motor). When activated, the motor provides assistance to the pedals, making it easier for the rider to pedal and maintain speed, especially when going uphill or against strong winds.
- Battery: The electric motor is powered by a rechargeable battery, typically mounted on the frame of the bike. The battery's capacity determines the range and duration of assistance provided by the motor. Riders can usually choose from different power levels or modes to adjust the amount of assistance based on their preferences and riding conditions.
- Control and Display: Many ebikes feature a control panel or display on the handlebars, allowing riders to monitor and adjust settings such as power level, battery status, and speed. Some ebikes also come with additional features like built-in lights, USB charging ports, and smartphone connectivity.
Overall, ebikes offer a versatile and efficient mode of transportation, combining the benefits of traditional cycling with the convenience and assistance of electric power. They're suitable for a wide range of riders, from commuters looking to navigate city streets to outdoor enthusiasts exploring off-road trails.
How do I ride? Do I have to pedal?
All Lectric eBikes can be ridden in three different ways:
- Pedaling without any motor assist (as a regular bicycle)
- Pedaling with motor assist (five levels of assist)
- Pure throttle
How fast does an eBike go?
The speed of an ebike can vary depending on several factors, including the type of motor, battery power, and local regulations. Most ebikes are designed to assist riders up to a certain speed, typically between 20 to 28 miles per hour, known as the pedal-assist speed limit. However, some ebikes can reach higher speeds, especially those designed for off-road or performance-oriented riding. It's important to check local regulations regarding ebike speed limits, as they may vary depending on the region.
What are the different classifications of ebikes?
There are generally three classifications of ebikes based on their power assistance levels:
- Class 1: Pedal Assist (Pedelec) - These ebikes provide assistance only when the rider is pedaling and typically have a maximum assisted speed of 20 mph (32 km/h). They are equipped with a motor that provides assistance proportional to the rider's pedaling effort.
- Class 2: Throttle Assist - These ebikes feature a throttle that allows the rider to engage the motor without pedaling. They also have a maximum assisted speed of 20 mph (32 km/h), but the motor can be activated independently of pedaling.
- Class 3: Speed Pedelec- Similar to Class 1 ebikes, these models provide pedal assistance but with a higher maximum assisted speed of 28 mph (45 km/h). They are designed for faster commuting and recreational riding but may be subject to specific regulations and restrictions in some areas.
These classifications may vary slightly depending on local regulations and laws governing ebike use in different regions. It's essential to familiarize yourself with the specific classifications and regulations applicable to your location when choosing an ebike
Do you need a license to drive an ebike?
In many regions, you do not need a license to ride an ebike, especially if it meets certain criteria regarding power and speed. However, regulations vary depending on the country, state/province, and local jurisdiction. Generally, low-speed ebikes that have a maximum assisted speed of around 20 mph and a motor power output below a certain threshold may not require a license. It's important to check the specific laws and regulations in your area to determine whether a license is required for riding an ebike. Additionally, some regions may have age restrictions or other requirements for operating an ebike on public roads or trails.
Do eBikes need insurance?
Whether ebikes require insurance depends on various factors, including local laws, the type of ebike, and how it's used. In many places, ebikes are treated similarly to traditional bicycles, which typically do not require insurance for personal use. However, certain circumstances may warrant insurance coverage:
- Riding on public roads: If you ride your ebike on public roads, some jurisdictions may require liability insurance, especially if the ebike is capable of higher speeds or is classified as a motor vehicle.
- Ebikes with higher power or speed: In some regions, ebikes that exceed certain power or speed limits may be classified as mopeds or motorcycles, requiring insurance coverage similar to motor vehicles.
- Accidents and liability: While insurance may not be legally required, having coverage can provide financial protection in case of accidents, damage, or liability claims involving your ebike.
- Theft and damage: Insurance coverage can also help protect against theft, vandalism, or damage to your ebike, similar to coverage for other valuable possessions.
Before purchasing insurance for your ebike, it's essential to research and understand the specific requirements and options available in your area. Consulting with insurance providers knowledgeable about ebike coverage can help you determine the appropriate level of protection based on your needs and usage patterns.
How waterproof are Lectric eBikes?
All Lectric eBike's electrical components have an IP rating of 65! This means it is dust-tight and can withstand jetting water. See the IP code for more details.
Use caution when riding in wet conditions as it will take longer to use the brakes to slow down, and also when turning as the tires may slip. The electrical components on the bike are not waterproof.
The warranty for all Lectric eBikes does not cover water damage.
What is the maximum rider weight for Lectric eBikes?
Check out the list below to see the rider weight for each Lectric eBike model:
XPress: 330 lbs
XPeak: 330 lbs
XPedition: 330 lbs
XP Lite: 220 lbs
XP Trike: 330 lbs
XP 3.0: 255 lbs
Lectric ONE: 330 lbs
How much do Lectric eBikes weigh?
Check out the list below to see the weight of each Lectric eBike model:
XPress: 58 lbs
XPeak: 67 lbs
XPedition: 68 lbs
XP Lite: 46 lbs
XP Trike: 69.5 lbs
XP 3.0: 64 lbs
Lectric ONE: 55 lbs
What is the top speed for all Lectric eBikes?
Check out the list below to see the top speed for each Lectric eBike model:
XPress: 28mph (45km)
XPeak: 28mph (45km)
XPedition: 28mph (45km)
XP Lite: 20mph (32km)
XP Trike: 14mph (23km)
XP 3.0: 28mph (45km)
Lectric ONE: 28mph (45km)
What are the recommended rider heights for Lectric eBikes?
Check out the list below to see the rider height range for each Lectric eBike model:
XPress High-Step: 5'4 - 6'4
XPress Step-Thru: 5'2 - 6'3
XPeak High-Step: 5'7 - 6'5
XPeak Step-Thru: 5'2 - 6'3
XPedition: 4'11 - 6'5
XP Lite: 4'8 - 6'2
XP Trike: 4'10 - 6'4
XP 3.0: 5'0 - 6'4
XP Step-Thru 3.0: 4'10 - 6'3
Lectric ONE: 5'2 - 6'4
Riders within these height ranges may comfortably ride the bikes by simply adjusting the seat and handlebars to their height preference.
What is the classification of Lectric eBikes?
All Lectric eBikes ship as a class 2 electric bike, meaning it has a throttle capable of propelling the bike at speeds of up to 20mph. Pedal assist will also be limited to 14 or 20mph in this setting depending on the model.
If you would like to go faster, the XP, XPedition, XPeak, XPress, and the Lectric ONE bikes can be unlocked to achieve class 3 settings. This will allow you to reach pedal-assist speeds of up to 28mph!
It is just a simple change of the settings on the display to increase the max speed. For instructions on how to change the top speed of the bike please check your user manual, or click here for an article explaining the process.
Please note that due to federal eBike laws, the throttle will remain limited to 20mph regardless. You must check your local regulations before unlocking your bike as laws vary by state, municipality, and in some cases trail.
Can the Lectric eBikes handle extreme temperatures?
All Lectric eBikes are designed to handle extreme temperatures to a point. Mechanical and electrical components on the bikes react differently to various temperatures and weather conditions.
Cold Weather:
When riding in cold temperatures, be sure to keep your bike running until you reach your destination to prevent your motor from freezing up on you. Please note that colder temperatures can impact your battery's range and you may notice it fades quicker than in warmer months. As always, we highly recommend storing your battery inside at moderate temperatures when possible!
Hot Weather:
Our eBikes are designed to handle extreme temperatures to a point. Our headquarters is located in Phoenix, AZ, so we understand heat! Extreme temperatures can impact your battery's performance, so you may see your battery drain faster in excessive heat. As always, we recommend storing your battery inside at moderate temperatures whenever possible.
How do I store my ebike battery for the winter?
Storing your ebike battery properly during the winter is essential to maintain its performance and longevity. Here are some tips for winter storage:
- Charge the Battery: Before storing your ebike battery, make sure it's fully charged. This helps prevent it from self-discharging completely during storage, which can lead to irreversible damage.
- Store in a Cool, Dry Place: Find a cool, dry location to store your ebike battery during the winter months. Avoid areas with extreme temperatures, such as unheated garages or sheds, as freezing temperatures can harm the battery.
- Check Charge Periodically: It's a good idea to check the battery's charge periodically during storage, approximately every 1-2 months. If the charge level drops significantly, recharge the battery to around 50% capacity to maintain its health.
- Avoid Extreme Temperatures: Protect the battery from exposure to extreme cold or heat. Extreme temperatures can affect the battery's performance and lifespan. If possible, store the battery indoors at room temperature.
- Disconnect the Battery: If your ebike allows it, disconnect the battery from the bike during storage. This prevents any potential drain on the battery from the bike's electrical systems.
- Store Upright: Store the battery in an upright position to prevent any leaks or spills. Avoid placing heavy objects on top of the battery during storage.
- Refer to Manufacturer's Guidelines: Follow any specific storage recommendations provided by the ebike manufacturer. They may have additional guidelines tailored to your particular battery model.
By following these tips, you can ensure that your ebike battery remains in good condition throughout the winter and is ready for use when the riding season resumes.
What is a torque sensor on an ebike?
A torque sensor on an ebike is a component that measures the force or pressure applied to the pedals by the rider. It detects the amount of torque or rotational force exerted on the pedal crank and translates this information into signals that control the assistance provided by the electric motor. Essentially, the torque sensor determines how much power the motor should deliver based on the rider's pedaling effort.
Product Information
Product Information
Shipping & Returns
Shipping & Returns

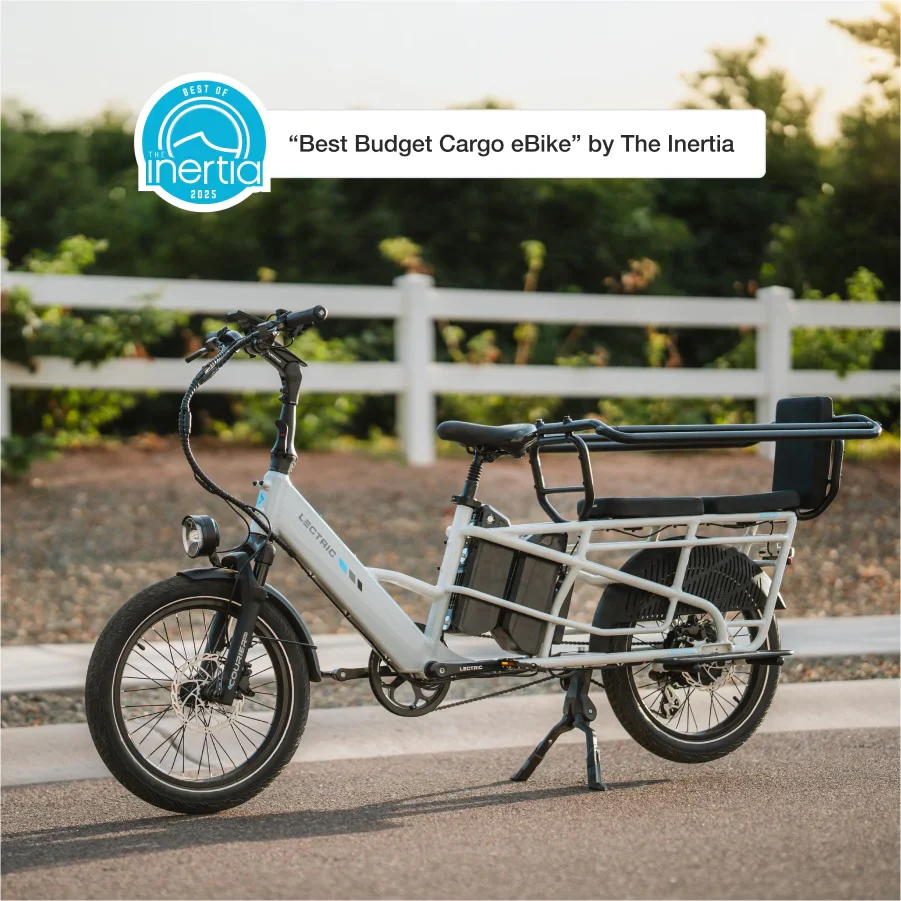

Lectric XPedition2 Stratus White eBike
Lectric XPedition2 Stratus White eBike
Lectric XPedition2 Stratus White eBike
Electric Cargo Bike
For Lectric eBikes products, we are no longer able to sell them online. They are only available for purchase in person at our warehouse.
eBike Overview
America's best-selling cargo eBike is back and better than ever with a bold new redesign. Meet the XPedition 2.0—Lectric’s most powerful and refined cargo solution to date. Built to tackle steep climbs and haul up to 450 lbs, it’s designed for families, commuters, and adventure-seekers alike. This upgraded version features a precision torque sensor for smoother pedal assist, a robust 1,310W peak motor, an 8-speed Shimano drivetrain, a full-color LCD display, and an extended frame with reinforced tubing for improved balance and strength.
Glide over rough roads with the new front suspension fork, and go the distance with an impressive 35Ah battery capacity. The XPedition 2.0 also supports a growing range of custom accessories—making it your ultimate all-purpose ride for work, errands, or weekend escapes.
624Watt Hours
60Mile Range
13Amp hours
Behind the Design: XPedition 2.0
Take a seat with co founders Levi and Robby, and Director of New Product Development, Matt, as they explore the design behind new features and cutting-edge technology on our upgraded cargo eBike.
TOP SPEED
28 mph
RANGE
up to 60 miles
PAYLOAD CAPACITY
450 lbs
MOTOR POWER
1310W peak
SUSPENSION FORK
50mm of travel
TOOL-FREE ASSEMBLY
Yes
⚠ Disclaimer: Must be 16 years of age or older to ride.
Features
Features
Courier 50 Suspension Fork
A custom eBike-rated dual-spring suspension front fork features 50mm of adjustable travel for a smooth and controlled ride.
Torque Sensor
A tailor-made torque sensor uses PWR+ technology - helping to manage power output based on the rider’s pedaling effort. It allows riders to reach class 3 speeds easily & with more control.
Impressive Power
1310W of peak power combined with our M24 technology delivers a quiet motor that's built for the long haul with a 48V, 13Ah (624Wh) Lithium-Ion battery certified to UL 2271. The XPedition 2.0 is also certified to UL 2849.
Color LCD Display
A color display featuring a USB-C port adds an aesthetic look while offering clear and concise information.
Size Guide
Size Guide
Bike Unfolded 77"L x 17"W x 46"H
Stand Over Height 21"
Handlebar Height 32"-49" (adjustable)
Bike Folded 70"L x 10"W x 30"H
Payload Capacity Max: 450 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 30 lbs, Max Rear Rack Weight 300 lbs.
Rear Rack Payload Capacity Max: 300 lbs.
Rider Payload Capacity Max: 330 lbs.
Seat to Ground Max: 49” / Min: 32”
Handlebar Width 25"
Rider Height 4’11” - 6’5”
Rear Rack 36.7”L x 6.8”W (300lb capacity)
Handlebar Reach 17” - 24.5”
Specifications
Specifications
Pedal-Assist
Five levels of pedal-assist and a throttle delivers the speed and power to own the road as a Class 1, 2, or 3 eBike.*
Thumb Throttle
An ergonomic below-the-bar trigger throttle on the left hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue.
Motor
A 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before.
Motor Controller
24 amp externally mounted controller is IP-65 rated and potted for weather proofing and thermal management.
Battery
A removable 48V, 13Ah (624Wh) lithium-ion battery certified to UL 2271 makes for a clean design while powering your ride for up to 60 miles on a single charge.** The XPedition is also certified to UL 2849.†
Smart-Draining Technology
A dual-battery system coupled with a battery isolator will drain 2 batteries at the same time allowing you to stay at higher voltage longer & reach up to 170 miles, respectively.** The bike will arrive with a terminal cover on the second battery mount but can be quickly removed to add a second battery at any time.
Rear Rack
A long rear rack integrated into the bike frame holds up to 300lbs and features a specially designed bar for mounting various accessory combinations. The rear rack also has 2 bulit-in mounting windows to easily install childrens seats & more.
Suspension Front Fork
The Courier 50 is a custom dual-spring suspension fork with up to 50mm of travel that provides shock absorption for a smooth and comfortable ride. Independent pre-load adjustments in each fork leg allow you to tailor each ride to your preference based on payload capacity and weight distribution.
LCD Display
A backlit color LCD display with a USB-C port provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.
Tires
Puncture-resistant 20” x 2.5” street tires make for a smoother ride with ease of control at hand. Slime is installed to prevent flat tires- at no additional cost.
Lectric PWR+™
Lectric's new Pedal Assist Wattage Regulation+ (PWR+) programming allows for an improved Pedal Assist experience by assisting the rider up to a certain power level for each PAS setting.
PAS Torque Sensor
A unique torque sensor combined with PWR+ technology, or Pedal Assist Wattage Regulation+, helps to manage power output based on the rider’s pedaling effort. With this technology, riders can reach higher speeds easily and with more control than ever before.
Drivetrain
11-32 tooth, 8-geared freewheel paired with a Shimano Altus derailleur and a thumb-triggered handlebar shifter allows you to swiftly change gears while riding to create pedaling efficiency and an easier riding experience at higher speeds.
Crankset
Forged aluminum, 52-tooth chainring is the perfect ratio for effortless 20-inch wheel pedaling.
Chain
A KMC Z8 steel chain paired with an idler pulley offers consistent tension and secure performance throughout your ride.
Brakes
Ultimate stopping power with hydraulic mineral oil brakes paired with 180mm rotors (2.2mm thick) offers peace of mind in wet or dry conditions.
Safety Lights
An integrated safety system, featuring a headlamp and a brake-activated rear light powered by the internal battery allows you to be seen at any time of day.
Turn Signals
Alert drivers, riders, and people nearby by indicating which direction you are headed with our new turn signals. Simply use the left or right arrows on the display control pad to trigger a blinking cadence on one side of the rear light.
Folding Dual-Leg Kickstand
A sturdy dual-leg kickstand with a 15+ inch spread located near the bottom bracket ensures the most balanced position for easy loading***. Pushing forward allows you to start riding without having to manually put the kickstand up with precious cargo.
Fenders
Polypropolene Fenders protect you and your ride from debris. The rear fender features an integrated side-pane wheel shroud to shield cargo and passengers from the eBikes rotating components.
Removable Pedals
Quick-release pedals easily detach from the bike for compact transport.
Lock-on Grips
Ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.
Saddle
A custom-designed saddle compliments a sporty look while adding comfort so you can ride longer.
Dual Seat Post
An adjustable and removable seat post with two different expansion points allows riders to reach a wide range of heights while maintaining comfort and stability.
Adjustable Handlebar Stem
Easily adjustable handlebar stem riser includes a quick-release lever to comfortably adjust your handlebar reach to your liking; bring your handlebars toward you or push them further back.
Thru Axle
The front wheel features a quick-release Thru Axle wheel attachment system for tool-free installation. This feature ensures a straight wheel, consistent brake rotor alignment, and handling stability.
Folding Capabilities
A foldable handlebar stem and adjustable seat height allows the XPedition to slide into compact spaces. Remove the pedals, seatpost, and front wheel in minutes for an easy and light-weight transport.
Weight
Total bike weight 65lbs without batteries installed. Each XPedition battery weighs 9lbs.
Charging
An external battery allows riders to charge the eBike without removing the battery.The XPedition comes standard with a 2amp charger for 5-7 hour charging but a 5amp Fast Charger can be purchased separately to speed up charging by 250%.
Hidden Cable Routing
A hollow top tube frame houses the main cables for a premium experience at no extra cost. Cables that may need to be serviced overtime are easily accessible and mounted to the underside of the frame.
Frame
The XPedition 2.0 frame is hydroformed to maximize strength to weight ratio. The lightweight and sturdy 6000 series aluminum features multiple mounting points throughout the eBike for various tool-free accessory combinations!
DIN Tested & Rated
A US-based bicycle testing lab put the XPedition through the rigorous DIN standard testing process to prove the frame and fork can handle a 450lb maximum payload ride after ride. The XPedition is rated to DIN 79010:2020-02.5.9.5.2.
Green Packaging
Packaging components are biodegradable and easily recyclable.
Color
Stratus White
One Minute, Tool-Free Assembly
Simply attach the quick-release pedals, unfold the handlebar stem, and install the front wheel via the quick-release thru axle.
Safety Certified
The Lectric XPedition 2.0 is certified to UL 2849. Additionally, the XPedition's lithium-ion battery is certified to UL 2271.
* Where permitted by state law. ** Range can vary due to weight load, terrain, weather and other conditions. † Click here for information on battery safety. *** You MUST hold onto the Lectric XPedition whenever loading cargo and/or a passenger. The kickstand is not designed to be used for loading cargo. Do not assume the bike is stable and balanced when using the kickstand. Always hold onto the bike when cargo is being loaded, in place, or attached to the bike.
What’s in the Box
What’s in the Box
- Integrated Rear Rack
- Fenders
- (1) Battery and (1) Charger
- Integrated Display
- Integrated Front light and Tail light
- Digital User Manual
Manuals & Videos
Manuals & Videos
Your First Ride
The first time riding your new eBike can be a little daunting, which is why we have helpful step-by-step instructions that walk you through opening, unboxing, setting up, and an overview of all of the features so you can ride with confidence!
It is important to read the entirety of the user manual before taking your first ride.
Here is our 'First Ride' YouTube video(s) that will walk you through how to set up your new eBike:
Click Here to watch on our Youtube Channel
Below are some key points and steps from the User Manual that apply to all bikes!
Unboxing
Congratulations on your purchase of a new Lectric eBike!
Inside the box, you will find your new bike, a charger, keys, and a digital user manual. Before removing the packaging material from the bike, remove all items from the box and make sure everything listed above is present. If anything is missing or damaged contact Lectric eBikes immediately for assistance.
The bike may require adjustments upon being received and unboxed, as shipping can sometimes be bumpy. When doing your first adjustment and inspecting the bike before riding, we recommend seeking professional help from a reputable, certified bicycle mechanic.
Follow the instructions in your user manual to set up your bike and insert the handlebars, seat post, or other unassembled components depending on the model of the bike. For more information please refer to the 'Getting Started' section in the user manual.
Inspection
1. Check that the tire and the tire bead are seated just inside the rim. Inflate your bike tires to a pressure that is within the recommended range printed on the side of the bike tire sidewalls. When inflating, gradually inflate in 5-10PSI increments while checking to make sure the tire bead is fully seated on the rim. If you notice the tire bead is not fully seated at any point during inflation, deflate the tire completely and reseat the tire bead before reinflating.
2. Check your seat post clamp and, if featured on your model, the handlebar stem quick-releases. Unlatch the quick releases and tighten by turning the bolt clockwise. Make sure all quick releases are tightened to the torque listed in the Recommended Torque Values section of the manual. The page number of this section can be found by referring to the table of contents at the beginning of the manual.
3. Ensure your seat post and handlebar stem are inserted past their minimum insertion points as indicated by the markings on them. Reference the 'Preparing to Ride' section of the manual for photos and complete instructions. Failure to insert past the minimum insertion point will place undue stress on these components increasing the risk of sudden failure potentially resulting in harm, injury, or death.
4. If you have a folding eBike, check to make sure your frame folding latch and handlebar folding latch are locked. Reference the 'Folding and Unfolding the Bike' section of the manual for photos and complete instructions. The page number of this section can be found by referring to the table of contents at the beginning of the manual. Double-check to make sure both latches are secure and locked before riding. Failure to do so may result in the bike folding while in use potentially causing serious harm to the rider.
Turn the bike on
5. Ensure your battery is fully charged before your first ride.
7. If the battery is not already inside the bike or on the mount, slide it inside of the frame or on the mount and lock it in position. Once the battery is secured, insert the key into the battery via the port (for the XP Lite & XP 1.0, 2.0, and 3.0s, the key port will be on the underbelly of the frame). See the Battery section of the manual for further information on the operation of the battery.
8. Push the key in firmly. Turn the key to lock the battery to the bike, and turn it to the ON position. You will not be able to remove the keys on certain models of Lectric eBikes.
9. Hold down the power button on the button pad located on the left side of the handlebars until the display comes on.
Operating your bike
10. Select a level of pedal assist using the plus and minus buttons on the button pad. Pedal assist level 1 is the lowest level of assist and pedal assist level 5 is the highest level of assist. Level zero will provide no assistance.
11. The handlebar features a throttle. To operate the throttle, ensure the pedal assist level is set above 0, then engage the throttle slowly according to how much speed and acceleration you want to achieve. The farther you twist or push on the throttle from its resting position, the more power propels the bike forward. When the bike is at a complete stop, turn the display off. This will ensure that the motor will not activate until the display is turned back on and the rider is ready to go.
Note: Exercise extreme caution using the throttle. When at a complete stop with the bike turned on, be careful not to engage the throttle unknowingly or the bike could throw you off balance and cause serious harm, injury, or death.
12. To turn on the headlight and tail light, press and hold the plus button on the button pad. The battery must be on in order for the headlight to work.
Now you're ready to ride! Happy trails!
Product Manual
User Manuals
Before operating your Lectric eBike, please read the User Manual, Universal Electric Bicycle Owner’s Manual, and Lithium-Ion Battery Safety Manual for essential usage and safety guidelines.
To ensure each customer gets the most relevant and updated information at all times, we have transitioned to online user manuals that are kept up to date by our team. We also help save a few trees along the way!
Download the Manual(s) for our bikes below:
Click to download > XPedition 2.0 User Manual
Click to download > Universal Electric Bicycle Owner's Manual
Service Videos & Tutorials
Click to watch > Lectric eBike Service Center
If you have any questions, please don't hesitate to contact our support team at [email protected] or 412-567-4390.
FAQ
XPedition FAQ
What is an electric cargo bike?
An electric cargo bike, known also as a cargo eBike, is a bicycle designed to carry heavy loads, groceries, or passengers. It has a sturdy frame and an electric motor to assist with pedaling.
What is the weight limit for a cargo ebike?
Cargo eBike weight limits vary by model, but are typically around 300 pounds or more, depending on the specific design. The Lectric XPedition cargo eBike can carry a whopping 450 pounds.
What is the difference between a cargo eBike and a standard eBike?
Cargo eBikes have extended frames, cargo capabilities, and higher weight capacities, while standard eBikes are designed for personal transportation and recreation.
What exactly is an eBike?
An ebike, short for electric bike, is a bicycle equipped with an electric motor that provides propulsion assistance to the rider. Unlike traditional bicycles that rely solely on human pedaling power, ebikes feature an integrated electric motor that assists the rider's pedaling efforts, making it easier to pedal and allowing for greater speed and distance with less exertion. The level of assistance provided by the electric motor can typically be adjusted by the rider, allowing for customizable riding experiences tailored to individual preferences and riding conditions. Ebikes are increasingly popular for commuting, recreation, and fitness, offering an eco-friendly and efficient mode of transportation.
How do eBikes work?
Ebikes, short for electric bikes, work by combining traditional pedal power with an electric motor to provide assistance to the rider. Here's how they typically work:
- Pedal Assistance: Most ebikes are equipped with a pedal-assist system (PAS) that detects when the rider is pedaling and provides additional power from the electric motor to assist the rider's effort. The level of assistance can usually be adjusted using a control panel or display on the handlebars.
- Electric Motor: Ebikes are powered by an electric motor, which is usually located either in the hub of one of the wheels (hub motor) or near the crankset (mid-drive motor). When activated, the motor provides assistance to the pedals, making it easier for the rider to pedal and maintain speed, especially when going uphill or against strong winds.
- Battery: The electric motor is powered by a rechargeable battery, typically mounted on the frame of the bike. The battery's capacity determines the range and duration of assistance provided by the motor. Riders can usually choose from different power levels or modes to adjust the amount of assistance based on their preferences and riding conditions.
- Control and Display: Many ebikes feature a control panel or display on the handlebars, allowing riders to monitor and adjust settings such as power level, battery status, and speed. Some ebikes also come with additional features like built-in lights, USB charging ports, and smartphone connectivity.
Overall, ebikes offer a versatile and efficient mode of transportation, combining the benefits of traditional cycling with the convenience and assistance of electric power. They're suitable for a wide range of riders, from commuters looking to navigate city streets to outdoor enthusiasts exploring off-road trails.
How do I ride? Do I have to pedal?
All Lectric eBikes can be ridden in three different ways:
- Pedaling without any motor assist (as a regular bicycle)
- Pedaling with motor assist (five levels of assist)
- Pure throttle
How fast does an eBike go?
The speed of an ebike can vary depending on several factors, including the type of motor, battery power, and local regulations. Most ebikes are designed to assist riders up to a certain speed, typically between 20 to 28 miles per hour, known as the pedal-assist speed limit. However, some ebikes can reach higher speeds, especially those designed for off-road or performance-oriented riding. It's important to check local regulations regarding ebike speed limits, as they may vary depending on the region.
What are the different classifications of ebikes?
There are generally three classifications of ebikes based on their power assistance levels:
- Class 1: Pedal Assist (Pedelec) - These ebikes provide assistance only when the rider is pedaling and typically have a maximum assisted speed of 20 mph (32 km/h). They are equipped with a motor that provides assistance proportional to the rider's pedaling effort.
- Class 2: Throttle Assist - These ebikes feature a throttle that allows the rider to engage the motor without pedaling. They also have a maximum assisted speed of 20 mph (32 km/h), but the motor can be activated independently of pedaling.
- Class 3: Speed Pedelec- Similar to Class 1 ebikes, these models provide pedal assistance but with a higher maximum assisted speed of 28 mph (45 km/h). They are designed for faster commuting and recreational riding but may be subject to specific regulations and restrictions in some areas.
These classifications may vary slightly depending on local regulations and laws governing ebike use in different regions. It's essential to familiarize yourself with the specific classifications and regulations applicable to your location when choosing an ebike
Do you need a license to drive an ebike?
In many regions, you do not need a license to ride an ebike, especially if it meets certain criteria regarding power and speed. However, regulations vary depending on the country, state/province, and local jurisdiction. Generally, low-speed ebikes that have a maximum assisted speed of around 20 mph and a motor power output below a certain threshold may not require a license. It's important to check the specific laws and regulations in your area to determine whether a license is required for riding an ebike. Additionally, some regions may have age restrictions or other requirements for operating an ebike on public roads or trails.
Do eBikes need insurance?
Whether ebikes require insurance depends on various factors, including local laws, the type of ebike, and how it's used. In many places, ebikes are treated similarly to traditional bicycles, which typically do not require insurance for personal use. However, certain circumstances may warrant insurance coverage:
- Riding on public roads: If you ride your ebike on public roads, some jurisdictions may require liability insurance, especially if the ebike is capable of higher speeds or is classified as a motor vehicle.
- Ebikes with higher power or speed: In some regions, ebikes that exceed certain power or speed limits may be classified as mopeds or motorcycles, requiring insurance coverage similar to motor vehicles.
- Accidents and liability: While insurance may not be legally required, having coverage can provide financial protection in case of accidents, damage, or liability claims involving your ebike.
- Theft and damage: Insurance coverage can also help protect against theft, vandalism, or damage to your ebike, similar to coverage for other valuable possessions.
Before purchasing insurance for your ebike, it's essential to research and understand the specific requirements and options available in your area. Consulting with insurance providers knowledgeable about ebike coverage can help you determine the appropriate level of protection based on your needs and usage patterns.
How waterproof are Lectric eBikes?
All Lectric eBike's electrical components have an IP rating of 65! This means it is dust-tight and can withstand jetting water. See the IP code for more details.
Use caution when riding in wet conditions as it will take longer to use the brakes to slow down, and also when turning as the tires may slip. The electrical components on the bike are not waterproof.
The warranty for all Lectric eBikes does not cover water damage.
What is the maximum rider weight for Lectric eBikes?
Check out the list below to see the rider weight for each Lectric eBike model:
XPress: 330 lbs
XPeak: 330 lbs
XPedition: 330 lbs
XP Lite: 220 lbs
XP Trike: 330 lbs
XP 3.0: 255 lbs
Lectric ONE: 330 lbs
How much do Lectric eBikes weigh?
Check out the list below to see the weight of each Lectric eBike model:
XPress: 58 lbs
XPeak: 67 lbs
XPedition: 68 lbs
XP Lite: 46 lbs
XP Trike: 69.5 lbs
XP 3.0: 64 lbs
Lectric ONE: 55 lbs
What is the top speed for all Lectric eBikes?
Check out the list below to see the top speed for each Lectric eBike model:
XPress: 28mph (45km)
XPeak: 28mph (45km)
XPedition: 28mph (45km)
XP Lite: 20mph (32km)
XP Trike: 14mph (23km)
XP 3.0: 28mph (45km)
Lectric ONE: 28mph (45km)
What are the recommended rider heights for Lectric eBikes?
Check out the list below to see the rider height range for each Lectric eBike model:
XPress High-Step: 5'4 - 6'4
XPress Step-Thru: 5'2 - 6'3
XPeak High-Step: 5'7 - 6'5
XPeak Step-Thru: 5'2 - 6'3
XPedition: 4'11 - 6'5
XP Lite: 4'8 - 6'2
XP Trike: 4'10 - 6'4
XP 3.0: 5'0 - 6'4
XP Step-Thru 3.0: 4'10 - 6'3
Lectric ONE: 5'2 - 6'4
Riders within these height ranges may comfortably ride the bikes by simply adjusting the seat and handlebars to their height preference.
What is the classification of Lectric eBikes?
All Lectric eBikes ship as a class 2 electric bike, meaning it has a throttle capable of propelling the bike at speeds of up to 20mph. Pedal assist will also be limited to 14 or 20mph in this setting depending on the model.
If you would like to go faster, the XP, XPedition, XPeak, XPress, and the Lectric ONE bikes can be unlocked to achieve class 3 settings. This will allow you to reach pedal-assist speeds of up to 28mph!
It is just a simple change of the settings on the display to increase the max speed. For instructions on how to change the top speed of the bike please check your user manual, or click here for an article explaining the process.
Please note that due to federal eBike laws, the throttle will remain limited to 20mph regardless. You must check your local regulations before unlocking your bike as laws vary by state, municipality, and in some cases trail.
Can the Lectric eBikes handle extreme temperatures?
All Lectric eBikes are designed to handle extreme temperatures to a point. Mechanical and electrical components on the bikes react differently to various temperatures and weather conditions.
Cold Weather:
When riding in cold temperatures, be sure to keep your bike running until you reach your destination to prevent your motor from freezing up on you. Please note that colder temperatures can impact your battery's range and you may notice it fades quicker than in warmer months. As always, we highly recommend storing your battery inside at moderate temperatures when possible!
Hot Weather:
Our eBikes are designed to handle extreme temperatures to a point. Our headquarters is located in Phoenix, AZ, so we understand heat! Extreme temperatures can impact your battery's performance, so you may see your battery drain faster in excessive heat. As always, we recommend storing your battery inside at moderate temperatures whenever possible.
How do I store my ebike battery for the winter?
Storing your ebike battery properly during the winter is essential to maintain its performance and longevity. Here are some tips for winter storage:
- Charge the Battery: Before storing your ebike battery, make sure it's fully charged. This helps prevent it from self-discharging completely during storage, which can lead to irreversible damage.
- Store in a Cool, Dry Place: Find a cool, dry location to store your ebike battery during the winter months. Avoid areas with extreme temperatures, such as unheated garages or sheds, as freezing temperatures can harm the battery.
- Check Charge Periodically: It's a good idea to check the battery's charge periodically during storage, approximately every 1-2 months. If the charge level drops significantly, recharge the battery to around 50% capacity to maintain its health.
- Avoid Extreme Temperatures: Protect the battery from exposure to extreme cold or heat. Extreme temperatures can affect the battery's performance and lifespan. If possible, store the battery indoors at room temperature.
- Disconnect the Battery: If your ebike allows it, disconnect the battery from the bike during storage. This prevents any potential drain on the battery from the bike's electrical systems.
- Store Upright: Store the battery in an upright position to prevent any leaks or spills. Avoid placing heavy objects on top of the battery during storage.
- Refer to Manufacturer's Guidelines: Follow any specific storage recommendations provided by the ebike manufacturer. They may have additional guidelines tailored to your particular battery model.
By following these tips, you can ensure that your ebike battery remains in good condition throughout the winter and is ready for use when the riding season resumes.
What is a torque sensor on an ebike?
A torque sensor on an ebike is a component that measures the force or pressure applied to the pedals by the rider. It detects the amount of torque or rotational force exerted on the pedal crank and translates this information into signals that control the assistance provided by the electric motor. Essentially, the torque sensor determines how much power the motor should deliver based on the rider's pedaling effort.
Original: $1,399.00
-65%$1,399.00
$489.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Lectric XPedition2 Stratus White eBike
Electric Cargo Bike
For Lectric eBikes products, we are no longer able to sell them online. They are only available for purchase in person at our warehouse.
eBike Overview
America's best-selling cargo eBike is back and better than ever with a bold new redesign. Meet the XPedition 2.0—Lectric’s most powerful and refined cargo solution to date. Built to tackle steep climbs and haul up to 450 lbs, it’s designed for families, commuters, and adventure-seekers alike. This upgraded version features a precision torque sensor for smoother pedal assist, a robust 1,310W peak motor, an 8-speed Shimano drivetrain, a full-color LCD display, and an extended frame with reinforced tubing for improved balance and strength.
Glide over rough roads with the new front suspension fork, and go the distance with an impressive 35Ah battery capacity. The XPedition 2.0 also supports a growing range of custom accessories—making it your ultimate all-purpose ride for work, errands, or weekend escapes.
624Watt Hours
60Mile Range
13Amp hours
Behind the Design: XPedition 2.0
Take a seat with co founders Levi and Robby, and Director of New Product Development, Matt, as they explore the design behind new features and cutting-edge technology on our upgraded cargo eBike.
TOP SPEED
28 mph
RANGE
up to 60 miles
PAYLOAD CAPACITY
450 lbs
MOTOR POWER
1310W peak
SUSPENSION FORK
50mm of travel
TOOL-FREE ASSEMBLY
Yes
⚠ Disclaimer: Must be 16 years of age or older to ride.
Features
Features
Courier 50 Suspension Fork
A custom eBike-rated dual-spring suspension front fork features 50mm of adjustable travel for a smooth and controlled ride.
Torque Sensor
A tailor-made torque sensor uses PWR+ technology - helping to manage power output based on the rider’s pedaling effort. It allows riders to reach class 3 speeds easily & with more control.
Impressive Power
1310W of peak power combined with our M24 technology delivers a quiet motor that's built for the long haul with a 48V, 13Ah (624Wh) Lithium-Ion battery certified to UL 2271. The XPedition 2.0 is also certified to UL 2849.
Color LCD Display
A color display featuring a USB-C port adds an aesthetic look while offering clear and concise information.
Size Guide
Size Guide
Bike Unfolded 77"L x 17"W x 46"H
Stand Over Height 21"
Handlebar Height 32"-49" (adjustable)
Bike Folded 70"L x 10"W x 30"H
Payload Capacity Max: 450 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 30 lbs, Max Rear Rack Weight 300 lbs.
Rear Rack Payload Capacity Max: 300 lbs.
Rider Payload Capacity Max: 330 lbs.
Seat to Ground Max: 49” / Min: 32”
Handlebar Width 25"
Rider Height 4’11” - 6’5”
Rear Rack 36.7”L x 6.8”W (300lb capacity)
Handlebar Reach 17” - 24.5”
Specifications
Specifications
Pedal-Assist
Five levels of pedal-assist and a throttle delivers the speed and power to own the road as a Class 1, 2, or 3 eBike.*
Thumb Throttle
An ergonomic below-the-bar trigger throttle on the left hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue.
Motor
A 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before.
Motor Controller
24 amp externally mounted controller is IP-65 rated and potted for weather proofing and thermal management.
Battery
A removable 48V, 13Ah (624Wh) lithium-ion battery certified to UL 2271 makes for a clean design while powering your ride for up to 60 miles on a single charge.** The XPedition is also certified to UL 2849.†
Smart-Draining Technology
A dual-battery system coupled with a battery isolator will drain 2 batteries at the same time allowing you to stay at higher voltage longer & reach up to 170 miles, respectively.** The bike will arrive with a terminal cover on the second battery mount but can be quickly removed to add a second battery at any time.
Rear Rack
A long rear rack integrated into the bike frame holds up to 300lbs and features a specially designed bar for mounting various accessory combinations. The rear rack also has 2 bulit-in mounting windows to easily install childrens seats & more.
Suspension Front Fork
The Courier 50 is a custom dual-spring suspension fork with up to 50mm of travel that provides shock absorption for a smooth and comfortable ride. Independent pre-load adjustments in each fork leg allow you to tailor each ride to your preference based on payload capacity and weight distribution.
LCD Display
A backlit color LCD display with a USB-C port provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance.
Tires
Puncture-resistant 20” x 2.5” street tires make for a smoother ride with ease of control at hand. Slime is installed to prevent flat tires- at no additional cost.
Lectric PWR+™
Lectric's new Pedal Assist Wattage Regulation+ (PWR+) programming allows for an improved Pedal Assist experience by assisting the rider up to a certain power level for each PAS setting.
PAS Torque Sensor
A unique torque sensor combined with PWR+ technology, or Pedal Assist Wattage Regulation+, helps to manage power output based on the rider’s pedaling effort. With this technology, riders can reach higher speeds easily and with more control than ever before.
Drivetrain
11-32 tooth, 8-geared freewheel paired with a Shimano Altus derailleur and a thumb-triggered handlebar shifter allows you to swiftly change gears while riding to create pedaling efficiency and an easier riding experience at higher speeds.
Crankset
Forged aluminum, 52-tooth chainring is the perfect ratio for effortless 20-inch wheel pedaling.
Chain
A KMC Z8 steel chain paired with an idler pulley offers consistent tension and secure performance throughout your ride.
Brakes
Ultimate stopping power with hydraulic mineral oil brakes paired with 180mm rotors (2.2mm thick) offers peace of mind in wet or dry conditions.
Safety Lights
An integrated safety system, featuring a headlamp and a brake-activated rear light powered by the internal battery allows you to be seen at any time of day.
Turn Signals
Alert drivers, riders, and people nearby by indicating which direction you are headed with our new turn signals. Simply use the left or right arrows on the display control pad to trigger a blinking cadence on one side of the rear light.
Folding Dual-Leg Kickstand
A sturdy dual-leg kickstand with a 15+ inch spread located near the bottom bracket ensures the most balanced position for easy loading***. Pushing forward allows you to start riding without having to manually put the kickstand up with precious cargo.
Fenders
Polypropolene Fenders protect you and your ride from debris. The rear fender features an integrated side-pane wheel shroud to shield cargo and passengers from the eBikes rotating components.
Removable Pedals
Quick-release pedals easily detach from the bike for compact transport.
Lock-on Grips
Ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.
Saddle
A custom-designed saddle compliments a sporty look while adding comfort so you can ride longer.
Dual Seat Post
An adjustable and removable seat post with two different expansion points allows riders to reach a wide range of heights while maintaining comfort and stability.
Adjustable Handlebar Stem
Easily adjustable handlebar stem riser includes a quick-release lever to comfortably adjust your handlebar reach to your liking; bring your handlebars toward you or push them further back.
Thru Axle
The front wheel features a quick-release Thru Axle wheel attachment system for tool-free installation. This feature ensures a straight wheel, consistent brake rotor alignment, and handling stability.
Folding Capabilities
A foldable handlebar stem and adjustable seat height allows the XPedition to slide into compact spaces. Remove the pedals, seatpost, and front wheel in minutes for an easy and light-weight transport.
Weight
Total bike weight 65lbs without batteries installed. Each XPedition battery weighs 9lbs.
Charging
An external battery allows riders to charge the eBike without removing the battery.The XPedition comes standard with a 2amp charger for 5-7 hour charging but a 5amp Fast Charger can be purchased separately to speed up charging by 250%.
Hidden Cable Routing
A hollow top tube frame houses the main cables for a premium experience at no extra cost. Cables that may need to be serviced overtime are easily accessible and mounted to the underside of the frame.
Frame
The XPedition 2.0 frame is hydroformed to maximize strength to weight ratio. The lightweight and sturdy 6000 series aluminum features multiple mounting points throughout the eBike for various tool-free accessory combinations!
DIN Tested & Rated
A US-based bicycle testing lab put the XPedition through the rigorous DIN standard testing process to prove the frame and fork can handle a 450lb maximum payload ride after ride. The XPedition is rated to DIN 79010:2020-02.5.9.5.2.
Green Packaging
Packaging components are biodegradable and easily recyclable.
Color
Stratus White
One Minute, Tool-Free Assembly
Simply attach the quick-release pedals, unfold the handlebar stem, and install the front wheel via the quick-release thru axle.
Safety Certified
The Lectric XPedition 2.0 is certified to UL 2849. Additionally, the XPedition's lithium-ion battery is certified to UL 2271.
* Where permitted by state law. ** Range can vary due to weight load, terrain, weather and other conditions. † Click here for information on battery safety. *** You MUST hold onto the Lectric XPedition whenever loading cargo and/or a passenger. The kickstand is not designed to be used for loading cargo. Do not assume the bike is stable and balanced when using the kickstand. Always hold onto the bike when cargo is being loaded, in place, or attached to the bike.
What’s in the Box
What’s in the Box
- Integrated Rear Rack
- Fenders
- (1) Battery and (1) Charger
- Integrated Display
- Integrated Front light and Tail light
- Digital User Manual
Manuals & Videos
Manuals & Videos
Your First Ride
The first time riding your new eBike can be a little daunting, which is why we have helpful step-by-step instructions that walk you through opening, unboxing, setting up, and an overview of all of the features so you can ride with confidence!
It is important to read the entirety of the user manual before taking your first ride.
Here is our 'First Ride' YouTube video(s) that will walk you through how to set up your new eBike:
Click Here to watch on our Youtube Channel
Below are some key points and steps from the User Manual that apply to all bikes!
Unboxing
Congratulations on your purchase of a new Lectric eBike!
Inside the box, you will find your new bike, a charger, keys, and a digital user manual. Before removing the packaging material from the bike, remove all items from the box and make sure everything listed above is present. If anything is missing or damaged contact Lectric eBikes immediately for assistance.
The bike may require adjustments upon being received and unboxed, as shipping can sometimes be bumpy. When doing your first adjustment and inspecting the bike before riding, we recommend seeking professional help from a reputable, certified bicycle mechanic.
Follow the instructions in your user manual to set up your bike and insert the handlebars, seat post, or other unassembled components depending on the model of the bike. For more information please refer to the 'Getting Started' section in the user manual.
Inspection
1. Check that the tire and the tire bead are seated just inside the rim. Inflate your bike tires to a pressure that is within the recommended range printed on the side of the bike tire sidewalls. When inflating, gradually inflate in 5-10PSI increments while checking to make sure the tire bead is fully seated on the rim. If you notice the tire bead is not fully seated at any point during inflation, deflate the tire completely and reseat the tire bead before reinflating.
2. Check your seat post clamp and, if featured on your model, the handlebar stem quick-releases. Unlatch the quick releases and tighten by turning the bolt clockwise. Make sure all quick releases are tightened to the torque listed in the Recommended Torque Values section of the manual. The page number of this section can be found by referring to the table of contents at the beginning of the manual.
3. Ensure your seat post and handlebar stem are inserted past their minimum insertion points as indicated by the markings on them. Reference the 'Preparing to Ride' section of the manual for photos and complete instructions. Failure to insert past the minimum insertion point will place undue stress on these components increasing the risk of sudden failure potentially resulting in harm, injury, or death.
4. If you have a folding eBike, check to make sure your frame folding latch and handlebar folding latch are locked. Reference the 'Folding and Unfolding the Bike' section of the manual for photos and complete instructions. The page number of this section can be found by referring to the table of contents at the beginning of the manual. Double-check to make sure both latches are secure and locked before riding. Failure to do so may result in the bike folding while in use potentially causing serious harm to the rider.
Turn the bike on
5. Ensure your battery is fully charged before your first ride.
7. If the battery is not already inside the bike or on the mount, slide it inside of the frame or on the mount and lock it in position. Once the battery is secured, insert the key into the battery via the port (for the XP Lite & XP 1.0, 2.0, and 3.0s, the key port will be on the underbelly of the frame). See the Battery section of the manual for further information on the operation of the battery.
8. Push the key in firmly. Turn the key to lock the battery to the bike, and turn it to the ON position. You will not be able to remove the keys on certain models of Lectric eBikes.
9. Hold down the power button on the button pad located on the left side of the handlebars until the display comes on.
Operating your bike
10. Select a level of pedal assist using the plus and minus buttons on the button pad. Pedal assist level 1 is the lowest level of assist and pedal assist level 5 is the highest level of assist. Level zero will provide no assistance.
11. The handlebar features a throttle. To operate the throttle, ensure the pedal assist level is set above 0, then engage the throttle slowly according to how much speed and acceleration you want to achieve. The farther you twist or push on the throttle from its resting position, the more power propels the bike forward. When the bike is at a complete stop, turn the display off. This will ensure that the motor will not activate until the display is turned back on and the rider is ready to go.
Note: Exercise extreme caution using the throttle. When at a complete stop with the bike turned on, be careful not to engage the throttle unknowingly or the bike could throw you off balance and cause serious harm, injury, or death.
12. To turn on the headlight and tail light, press and hold the plus button on the button pad. The battery must be on in order for the headlight to work.
Now you're ready to ride! Happy trails!
Product Manual
User Manuals
Before operating your Lectric eBike, please read the User Manual, Universal Electric Bicycle Owner’s Manual, and Lithium-Ion Battery Safety Manual for essential usage and safety guidelines.
To ensure each customer gets the most relevant and updated information at all times, we have transitioned to online user manuals that are kept up to date by our team. We also help save a few trees along the way!
Download the Manual(s) for our bikes below:
Click to download > XPedition 2.0 User Manual
Click to download > Universal Electric Bicycle Owner's Manual
Service Videos & Tutorials
Click to watch > Lectric eBike Service Center
If you have any questions, please don't hesitate to contact our support team at [email protected] or 412-567-4390.
FAQ
XPedition FAQ
What is an electric cargo bike?
An electric cargo bike, known also as a cargo eBike, is a bicycle designed to carry heavy loads, groceries, or passengers. It has a sturdy frame and an electric motor to assist with pedaling.
What is the weight limit for a cargo ebike?
Cargo eBike weight limits vary by model, but are typically around 300 pounds or more, depending on the specific design. The Lectric XPedition cargo eBike can carry a whopping 450 pounds.
What is the difference between a cargo eBike and a standard eBike?
Cargo eBikes have extended frames, cargo capabilities, and higher weight capacities, while standard eBikes are designed for personal transportation and recreation.
What exactly is an eBike?
An ebike, short for electric bike, is a bicycle equipped with an electric motor that provides propulsion assistance to the rider. Unlike traditional bicycles that rely solely on human pedaling power, ebikes feature an integrated electric motor that assists the rider's pedaling efforts, making it easier to pedal and allowing for greater speed and distance with less exertion. The level of assistance provided by the electric motor can typically be adjusted by the rider, allowing for customizable riding experiences tailored to individual preferences and riding conditions. Ebikes are increasingly popular for commuting, recreation, and fitness, offering an eco-friendly and efficient mode of transportation.
How do eBikes work?
Ebikes, short for electric bikes, work by combining traditional pedal power with an electric motor to provide assistance to the rider. Here's how they typically work:
- Pedal Assistance: Most ebikes are equipped with a pedal-assist system (PAS) that detects when the rider is pedaling and provides additional power from the electric motor to assist the rider's effort. The level of assistance can usually be adjusted using a control panel or display on the handlebars.
- Electric Motor: Ebikes are powered by an electric motor, which is usually located either in the hub of one of the wheels (hub motor) or near the crankset (mid-drive motor). When activated, the motor provides assistance to the pedals, making it easier for the rider to pedal and maintain speed, especially when going uphill or against strong winds.
- Battery: The electric motor is powered by a rechargeable battery, typically mounted on the frame of the bike. The battery's capacity determines the range and duration of assistance provided by the motor. Riders can usually choose from different power levels or modes to adjust the amount of assistance based on their preferences and riding conditions.
- Control and Display: Many ebikes feature a control panel or display on the handlebars, allowing riders to monitor and adjust settings such as power level, battery status, and speed. Some ebikes also come with additional features like built-in lights, USB charging ports, and smartphone connectivity.
Overall, ebikes offer a versatile and efficient mode of transportation, combining the benefits of traditional cycling with the convenience and assistance of electric power. They're suitable for a wide range of riders, from commuters looking to navigate city streets to outdoor enthusiasts exploring off-road trails.
How do I ride? Do I have to pedal?
All Lectric eBikes can be ridden in three different ways:
- Pedaling without any motor assist (as a regular bicycle)
- Pedaling with motor assist (five levels of assist)
- Pure throttle
How fast does an eBike go?
The speed of an ebike can vary depending on several factors, including the type of motor, battery power, and local regulations. Most ebikes are designed to assist riders up to a certain speed, typically between 20 to 28 miles per hour, known as the pedal-assist speed limit. However, some ebikes can reach higher speeds, especially those designed for off-road or performance-oriented riding. It's important to check local regulations regarding ebike speed limits, as they may vary depending on the region.
What are the different classifications of ebikes?
There are generally three classifications of ebikes based on their power assistance levels:
- Class 1: Pedal Assist (Pedelec) - These ebikes provide assistance only when the rider is pedaling and typically have a maximum assisted speed of 20 mph (32 km/h). They are equipped with a motor that provides assistance proportional to the rider's pedaling effort.
- Class 2: Throttle Assist - These ebikes feature a throttle that allows the rider to engage the motor without pedaling. They also have a maximum assisted speed of 20 mph (32 km/h), but the motor can be activated independently of pedaling.
- Class 3: Speed Pedelec- Similar to Class 1 ebikes, these models provide pedal assistance but with a higher maximum assisted speed of 28 mph (45 km/h). They are designed for faster commuting and recreational riding but may be subject to specific regulations and restrictions in some areas.
These classifications may vary slightly depending on local regulations and laws governing ebike use in different regions. It's essential to familiarize yourself with the specific classifications and regulations applicable to your location when choosing an ebike
Do you need a license to drive an ebike?
In many regions, you do not need a license to ride an ebike, especially if it meets certain criteria regarding power and speed. However, regulations vary depending on the country, state/province, and local jurisdiction. Generally, low-speed ebikes that have a maximum assisted speed of around 20 mph and a motor power output below a certain threshold may not require a license. It's important to check the specific laws and regulations in your area to determine whether a license is required for riding an ebike. Additionally, some regions may have age restrictions or other requirements for operating an ebike on public roads or trails.
Do eBikes need insurance?
Whether ebikes require insurance depends on various factors, including local laws, the type of ebike, and how it's used. In many places, ebikes are treated similarly to traditional bicycles, which typically do not require insurance for personal use. However, certain circumstances may warrant insurance coverage:
- Riding on public roads: If you ride your ebike on public roads, some jurisdictions may require liability insurance, especially if the ebike is capable of higher speeds or is classified as a motor vehicle.
- Ebikes with higher power or speed: In some regions, ebikes that exceed certain power or speed limits may be classified as mopeds or motorcycles, requiring insurance coverage similar to motor vehicles.
- Accidents and liability: While insurance may not be legally required, having coverage can provide financial protection in case of accidents, damage, or liability claims involving your ebike.
- Theft and damage: Insurance coverage can also help protect against theft, vandalism, or damage to your ebike, similar to coverage for other valuable possessions.
Before purchasing insurance for your ebike, it's essential to research and understand the specific requirements and options available in your area. Consulting with insurance providers knowledgeable about ebike coverage can help you determine the appropriate level of protection based on your needs and usage patterns.
How waterproof are Lectric eBikes?
All Lectric eBike's electrical components have an IP rating of 65! This means it is dust-tight and can withstand jetting water. See the IP code for more details.
Use caution when riding in wet conditions as it will take longer to use the brakes to slow down, and also when turning as the tires may slip. The electrical components on the bike are not waterproof.
The warranty for all Lectric eBikes does not cover water damage.
What is the maximum rider weight for Lectric eBikes?
Check out the list below to see the rider weight for each Lectric eBike model:
XPress: 330 lbs
XPeak: 330 lbs
XPedition: 330 lbs
XP Lite: 220 lbs
XP Trike: 330 lbs
XP 3.0: 255 lbs
Lectric ONE: 330 lbs
How much do Lectric eBikes weigh?
Check out the list below to see the weight of each Lectric eBike model:
XPress: 58 lbs
XPeak: 67 lbs
XPedition: 68 lbs
XP Lite: 46 lbs
XP Trike: 69.5 lbs
XP 3.0: 64 lbs
Lectric ONE: 55 lbs
What is the top speed for all Lectric eBikes?
Check out the list below to see the top speed for each Lectric eBike model:
XPress: 28mph (45km)
XPeak: 28mph (45km)
XPedition: 28mph (45km)
XP Lite: 20mph (32km)
XP Trike: 14mph (23km)
XP 3.0: 28mph (45km)
Lectric ONE: 28mph (45km)
What are the recommended rider heights for Lectric eBikes?
Check out the list below to see the rider height range for each Lectric eBike model:
XPress High-Step: 5'4 - 6'4
XPress Step-Thru: 5'2 - 6'3
XPeak High-Step: 5'7 - 6'5
XPeak Step-Thru: 5'2 - 6'3
XPedition: 4'11 - 6'5
XP Lite: 4'8 - 6'2
XP Trike: 4'10 - 6'4
XP 3.0: 5'0 - 6'4
XP Step-Thru 3.0: 4'10 - 6'3
Lectric ONE: 5'2 - 6'4
Riders within these height ranges may comfortably ride the bikes by simply adjusting the seat and handlebars to their height preference.
What is the classification of Lectric eBikes?
All Lectric eBikes ship as a class 2 electric bike, meaning it has a throttle capable of propelling the bike at speeds of up to 20mph. Pedal assist will also be limited to 14 or 20mph in this setting depending on the model.
If you would like to go faster, the XP, XPedition, XPeak, XPress, and the Lectric ONE bikes can be unlocked to achieve class 3 settings. This will allow you to reach pedal-assist speeds of up to 28mph!
It is just a simple change of the settings on the display to increase the max speed. For instructions on how to change the top speed of the bike please check your user manual, or click here for an article explaining the process.
Please note that due to federal eBike laws, the throttle will remain limited to 20mph regardless. You must check your local regulations before unlocking your bike as laws vary by state, municipality, and in some cases trail.
Can the Lectric eBikes handle extreme temperatures?
All Lectric eBikes are designed to handle extreme temperatures to a point. Mechanical and electrical components on the bikes react differently to various temperatures and weather conditions.
Cold Weather:
When riding in cold temperatures, be sure to keep your bike running until you reach your destination to prevent your motor from freezing up on you. Please note that colder temperatures can impact your battery's range and you may notice it fades quicker than in warmer months. As always, we highly recommend storing your battery inside at moderate temperatures when possible!
Hot Weather:
Our eBikes are designed to handle extreme temperatures to a point. Our headquarters is located in Phoenix, AZ, so we understand heat! Extreme temperatures can impact your battery's performance, so you may see your battery drain faster in excessive heat. As always, we recommend storing your battery inside at moderate temperatures whenever possible.
How do I store my ebike battery for the winter?
Storing your ebike battery properly during the winter is essential to maintain its performance and longevity. Here are some tips for winter storage:
- Charge the Battery: Before storing your ebike battery, make sure it's fully charged. This helps prevent it from self-discharging completely during storage, which can lead to irreversible damage.
- Store in a Cool, Dry Place: Find a cool, dry location to store your ebike battery during the winter months. Avoid areas with extreme temperatures, such as unheated garages or sheds, as freezing temperatures can harm the battery.
- Check Charge Periodically: It's a good idea to check the battery's charge periodically during storage, approximately every 1-2 months. If the charge level drops significantly, recharge the battery to around 50% capacity to maintain its health.
- Avoid Extreme Temperatures: Protect the battery from exposure to extreme cold or heat. Extreme temperatures can affect the battery's performance and lifespan. If possible, store the battery indoors at room temperature.
- Disconnect the Battery: If your ebike allows it, disconnect the battery from the bike during storage. This prevents any potential drain on the battery from the bike's electrical systems.
- Store Upright: Store the battery in an upright position to prevent any leaks or spills. Avoid placing heavy objects on top of the battery during storage.
- Refer to Manufacturer's Guidelines: Follow any specific storage recommendations provided by the ebike manufacturer. They may have additional guidelines tailored to your particular battery model.
By following these tips, you can ensure that your ebike battery remains in good condition throughout the winter and is ready for use when the riding season resumes.
What is a torque sensor on an ebike?
A torque sensor on an ebike is a component that measures the force or pressure applied to the pedals by the rider. It detects the amount of torque or rotational force exerted on the pedal crank and translates this information into signals that control the assistance provided by the electric motor. Essentially, the torque sensor determines how much power the motor should deliver based on the rider's pedaling effort.
