Optoma ZH406
Optoma ZH406
This product is designed to be compact, lightweight and require very little maintenance.
Introducing the Optoma ZH406 - a remarkable projector that is perfect for any room. With its razor-sharp, 1080p projection and a powerful laser light source, you can brighten up your space with up to 4,500 lumens of light. The laser light source also ensures up to 30,000 hours of low-cost and virtually maintenance-free operation, eliminating the need for frequent lamp and filter replacements.
This projector is designed with versatility in mind, featuring a compact size, low weight, and quiet operation, making it ideal for classrooms, meeting rooms, board rooms, and digital signage. Additionally, it offers four corner correction, 360° and portrait mode operation, enabling flexible installations to suit your unique needs.
The Optoma ZH406 also boasts multiple connectivity options, including HDMI and VGA inputs, which allow you to connect to high-quality 4K HDR digital video or legacy analog video sources. Furthermore, LAN and RS-232 enable control via Crestron, Extron, AMX, or Telnet. The projector also features stereo speakers with 15W per channel, providing rich audio for all-in-one applications.
Features
DuraCore
Optoma's DuraCore technology lets the product have a long lifespan. It's because of the advanced cooling system for the laser diode and a design that keeps dust away.
IP6X Airtight optical engine
The device has undergone independent testing and has been certified to meet IEC standard 60529, with an IP6X rating for dust resistance. Its exceptional dust protection and superior brightness provide industry-leading durability, making it suitable for continuous, maintenance-free use in demanding environments.
Full HD 1080p
With 1080p resolution, you can enjoy crisp and clear images from high-definition sources without the need for downscaling or compression. This makes it ideal for viewing Blu-ray movies, watching HD television programming, and playing video games.
HDR compatible
Optoma HDR compatible projectors are designed to deliver a more immersive viewing experience by utilizing HDR meta data. With these projectors, you will be able to see a greater level of detail and texture in the images on the screen. The objects will appear more lifelike and solid, and the added detail will create a greater sense of depth, making it feel like you are looking through a window.
Superior contrast
Experience a more dynamic and detailed image with Optoma DLP projectors, which feature high contrast technology. These projectors offer brighter whites and deeper blacks than many comparable options, bringing your images to life and making text appear sharp and clear. This makes them well-suited for a wide range of applications, including business and education.
Amazing color
Optoma projectors offer versatile and consistent color performance, making them suitable for any type of content and setting. Whether you need accurate sRGB colors for natural-looking images or bold and punchy hues for presentations, our projectors have a display mode that will meet your specific needs. These features make Optoma projectors an ideal choice for a variety of graphic and video presentations.

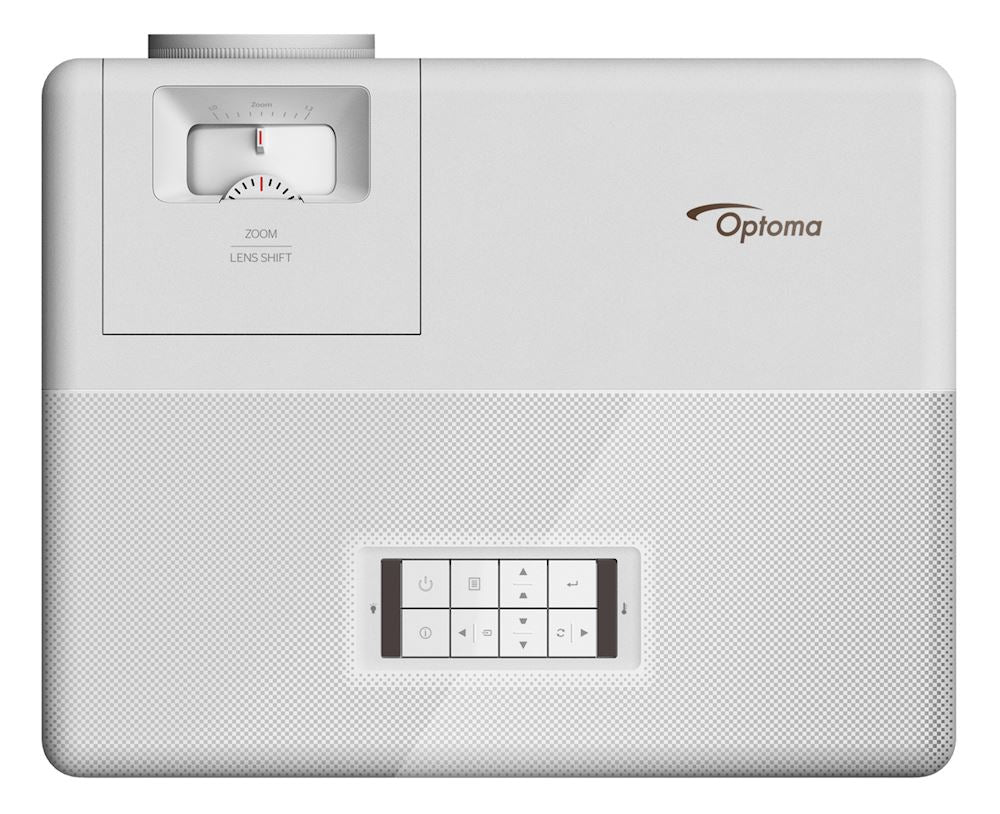

Vertical Lens Shift
Experience a world of versatility with the Optoma ZH406 projector. Enjoy maximum flexibility with the vertical lens shift, allowing you to install the projector in any position and to choose from a wide range of screen sizes. Feel confident that you can get the best possible viewing experience, every time.
Four corner correction
To make your image look straight and square you can use the keystone adjustment. This adjustment allows you to change the shape of the image by adjusting each corner of it. This is useful when you want to put many pictures on top of each other, or if you want to project the image on a wall that is not straight. Also it is helpful when you want to project your image on a wall at an angle.
Auto keystone
Auto Keystone automatically fixes the distorted shape of the image when the projector is not directly in front of the screen, resulting in a straight and aligned image*.
*Auto keystone only adjusts the image in the vertical plane.
Portrait projection
This feature is perfect for digital signage, as it allows you to rotate your projector by 90 degrees and project a portrait-oriented image instead of landscape.
360 projection*
With this feature, you can project the images in any direction around the projector, as it allows a full 360-degree rotation along the horizontal axis.*
*For more information please refer to the user manual
Control
This projector comes with a variety of options that allow you to remotely control and monitor the projector from a distance.
• RS232
Optoma projectors are equipped with a comprehensive collection of RS232 commands, which makes it easy to operate and control them using any type of control system.
• AMX compatible
The projector is designed with a dynamic discovery protocol that enables simple installation when used in conjunction with AMX control systems.
• Crestron RoomView
The RoomView® software compatibility allows you to remotely power on/off, monitor, manage and control up to 250 projectors simultaneously from any computer. This feature provides you with a convenient and efficient way to manage multiple projectors in a large facility, such as a school or a corporate office.
• Extron IPLink compatible
This feature enables straightforward installation when using with Extron control systems, this allow the user to integrate the projector with other devices or systems that are under the Extron control.
PJLink
The projector has a built-in system called PJLink which makes it easy to connect and control it with other systems that are compatible. This feature allows you to control the projector from a distance using special software and systems.
Telnet
This model can be controlled through Telnet, making it compatible and easy to install with Telnet-enabled control systems.
Full 3D
The Optoma projector can showcase true 3D imagery from a wide range of sources, including 3D graphics cards, 3D broadcasting and the newest generation of 3D media servers.
Integrated speaker
Exceptional sound quality is delivered through the powerful built-in speaker, eliminating the need for costly external speakers and simplifying the setup process.
USB-Power
Power an HDMI dongle, such as the Google Chromecast, using the USB-A port.
AV mute
Maintain control over your presentation with AV mute feature, which allows you to blank the screen and direct your audience's attention away from it when not in use.
Quick resume
With this feature enabled, the projector will automatically turn back on in the event of an accidental shut-off.
Auto power off
An "auto power off" feature is available in the projector that aims to save energy by turning it off automatically if the projector remains unused for a certain period of time.
Direct power on
Instant start-up is enabled in the projector, enabling it to turn on automatically as soon as power is supplied, eliminating the need to manually activate it via the remote control or keypad. This feature is particularly useful in rooms where a central power switch is present.
Direct power off
Get faster power-down times with Optoma ZH406! Forget about waiting for your projector to cool down before turning it off - now you can conveniently power it off immediately or directly at the main power source. Enjoy fast and efficient cooling while saving energy with this smart and powerful projector. Make your movie nights, and presentations, and work more efficiently with Optoma ZH406 today!
24/7 operation
Optoma projectors have been engineered to run continuously for 24 hours while being positioned in their standard orientation. This feature makes them ideal for applications where extended usage is necessary. Note that these projectors are subject to 24-hour terms and conditions.
The Optoma projector is designed for 24/7 operation, and the standard lamp warranty applies. However, the projector warranty is based on typical business hours of usage. To ensure optimal performance, Optoma advises turning off the projector or placing it in standby mode for 30 minutes every 24 hours in order to extend the life of the lamp.
Accessories
2 Year Projector parts and labor | 5-year or 12000 hour light source
Optoma 3 Year Limited Projector Extended Warranty
Optoma 5 Year Limited Projector Extended Warranty
OCM815B
OCM815W
OCM818B-RU
Compatible models
Optoma Management Suite
Optoma Management Suite Cloud
Case studies
Optoma has once again succeeded in capturing the attention of audiences with its record-breaking holographic cinema experience.
For additional information, please click the link: https://www.optomausa.com/case-studies/optoma-once-again-captivates-audiences-with-the-worlds-largest-holographic-cinema
Specification
Display/image
|
Display technology |
DLP™ |
|
Resolution |
1080p Full HD (1920x1080) |
|
Brightness |
4,500 lumens |
|
Contrast ratio |
300,000:1 |
|
Native aspect ratio |
16:9 |
|
Aspect ratio - compatible |
4:3 |
|
Keystone correction - horizontal |
+/-30° |
|
Keystone correction - vertical |
+/-30° |
|
Has vertical auto keystone correction |
Yes |
|
Displayable colors (millions) |
1073.4 |
|
Horizontal scan rate |
15.375 ~ 91.146 Khz |
|
Vertical scan rate |
50 ~ 85 Hz (120Hz for 3D)Hz |
|
Uniformity |
80% |
|
Screen size |
20.2" ~ 320.4" diagonal |
Lamp info
|
Light source type |
Laser |
|
LASER life |
30,000 hours |
Optical
|
Throw ratio |
1.4:1 ~ 2.24:1 |
|
Projection distance |
39.37" - 393.7" |
|
Zoom |
1.6 |
|
Zoom type |
Manual |
|
Focal length (mm) |
20.91mm~32.62mm/0.823"~1.284" |
|
Lens shift |
Vertical: +/-16% |
|
Native offset |
100% |
|
Lens shift |
Yes |

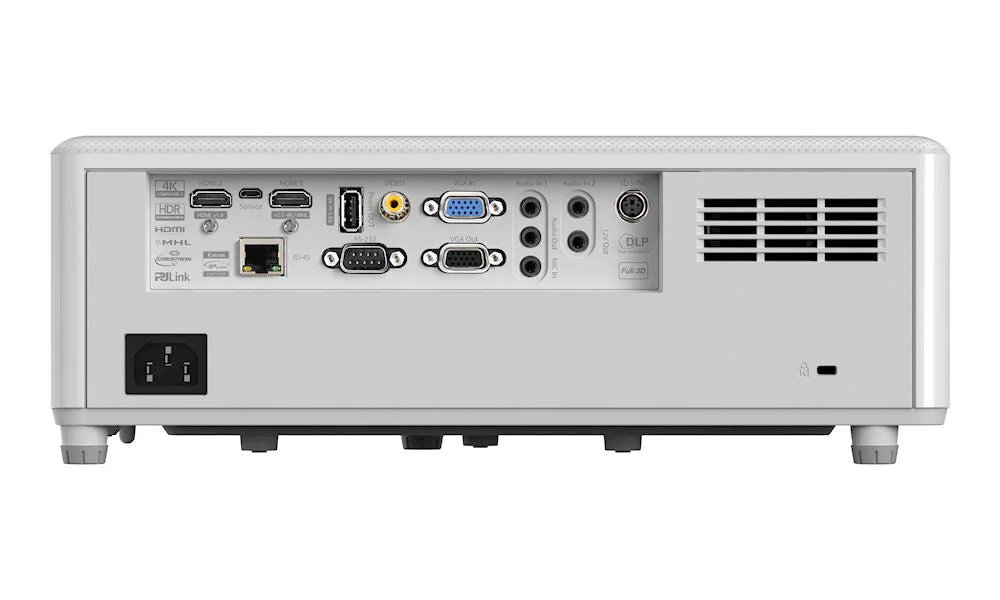

Connectivity
|
Connections |
Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 2 x Audio 3.5mm, 1 x Mic 3.5mm, 1 x Composite video |
|
Outputs 1 x VGA, 1 x Audio 3.5mm, 1 x USB-A power 1.5A |
|
|
Control 1 x RS232, 1 x RJ45, 1 x 12V trigger, 1 x micro USB service, 1 x 3D sync |
General
|
Noise level (typical) |
30dB |
|
Noise level (max) |
32dB |
|
PC compatibility |
UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
|
2D compatibility |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz) |
|
3D compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
|
3D |
Full 3D |
|
Security |
Security bar, Kensington Lock, Password protected interface |
|
IP rating |
IP6X |
|
OSD / display languages |
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
|
24/7 operation |
Yes |
|
Operating conditions |
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85% |
|

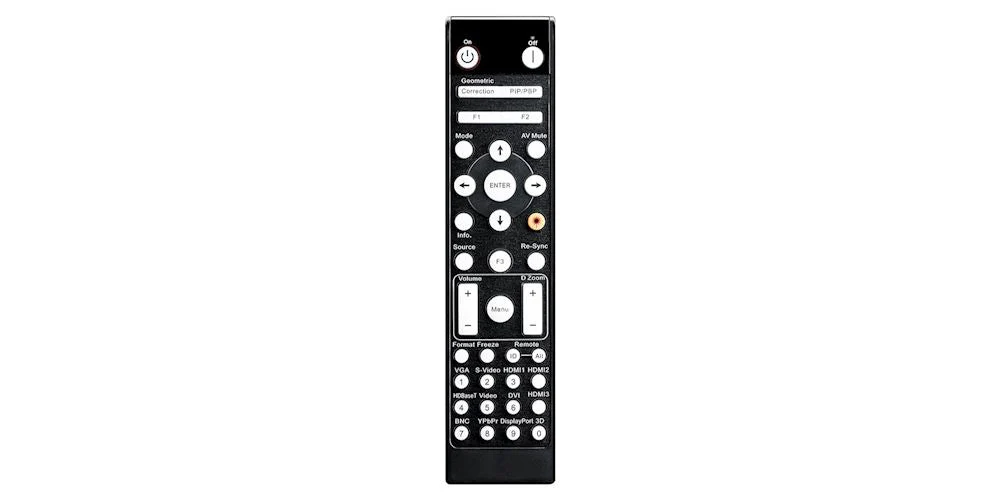

Remote control |
Backlit ProAV remote |
|
Heat dissipation |
918BTU/hour |
|
Speaker count |
2 |
|
Watts per speaker |
10W |
|
In the box |
AC power cord |
|
Optional wireless models |
UHDCast Pro, QuickCast Bundle, QuickCast starter kit |
Networking
|
LAN - control |
Yes |
Power
|
Power supply |
100V ~ 240V, 50-60Hz |
|
Power consumption (standby) |
<0.5W |
|
Power consumption (min) |
206W |
|
Power consumption (max) |
269W |
Weight and dimensions
|
Dimensions (W x D x H) |
13.27" x 10.43" x 4.82" |
|
Gross weight |
13.71 lbs |
|
Net weight |
10.03 lbs |
Downloads
Manuals
Datasheets
RS232
Basic user manuals
CAD
Datasheets
Software: Logo capture tool.zip
Distance calculator
Distance Calculator
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Optoma ZH406
Optoma ZH406
Optoma ZH406
This product is designed to be compact, lightweight and require very little maintenance.
Introducing the Optoma ZH406 - a remarkable projector that is perfect for any room. With its razor-sharp, 1080p projection and a powerful laser light source, you can brighten up your space with up to 4,500 lumens of light. The laser light source also ensures up to 30,000 hours of low-cost and virtually maintenance-free operation, eliminating the need for frequent lamp and filter replacements.
This projector is designed with versatility in mind, featuring a compact size, low weight, and quiet operation, making it ideal for classrooms, meeting rooms, board rooms, and digital signage. Additionally, it offers four corner correction, 360° and portrait mode operation, enabling flexible installations to suit your unique needs.
The Optoma ZH406 also boasts multiple connectivity options, including HDMI and VGA inputs, which allow you to connect to high-quality 4K HDR digital video or legacy analog video sources. Furthermore, LAN and RS-232 enable control via Crestron, Extron, AMX, or Telnet. The projector also features stereo speakers with 15W per channel, providing rich audio for all-in-one applications.
Features
DuraCore
Optoma's DuraCore technology lets the product have a long lifespan. It's because of the advanced cooling system for the laser diode and a design that keeps dust away.
IP6X Airtight optical engine
The device has undergone independent testing and has been certified to meet IEC standard 60529, with an IP6X rating for dust resistance. Its exceptional dust protection and superior brightness provide industry-leading durability, making it suitable for continuous, maintenance-free use in demanding environments.
Full HD 1080p
With 1080p resolution, you can enjoy crisp and clear images from high-definition sources without the need for downscaling or compression. This makes it ideal for viewing Blu-ray movies, watching HD television programming, and playing video games.
HDR compatible
Optoma HDR compatible projectors are designed to deliver a more immersive viewing experience by utilizing HDR meta data. With these projectors, you will be able to see a greater level of detail and texture in the images on the screen. The objects will appear more lifelike and solid, and the added detail will create a greater sense of depth, making it feel like you are looking through a window.
Superior contrast
Experience a more dynamic and detailed image with Optoma DLP projectors, which feature high contrast technology. These projectors offer brighter whites and deeper blacks than many comparable options, bringing your images to life and making text appear sharp and clear. This makes them well-suited for a wide range of applications, including business and education.
Amazing color
Optoma projectors offer versatile and consistent color performance, making them suitable for any type of content and setting. Whether you need accurate sRGB colors for natural-looking images or bold and punchy hues for presentations, our projectors have a display mode that will meet your specific needs. These features make Optoma projectors an ideal choice for a variety of graphic and video presentations.
Vertical Lens Shift
Experience a world of versatility with the Optoma ZH406 projector. Enjoy maximum flexibility with the vertical lens shift, allowing you to install the projector in any position and to choose from a wide range of screen sizes. Feel confident that you can get the best possible viewing experience, every time.
Four corner correction
To make your image look straight and square you can use the keystone adjustment. This adjustment allows you to change the shape of the image by adjusting each corner of it. This is useful when you want to put many pictures on top of each other, or if you want to project the image on a wall that is not straight. Also it is helpful when you want to project your image on a wall at an angle.
Auto keystone
Auto Keystone automatically fixes the distorted shape of the image when the projector is not directly in front of the screen, resulting in a straight and aligned image*.
*Auto keystone only adjusts the image in the vertical plane.
Portrait projection
This feature is perfect for digital signage, as it allows you to rotate your projector by 90 degrees and project a portrait-oriented image instead of landscape.
360 projection*
With this feature, you can project the images in any direction around the projector, as it allows a full 360-degree rotation along the horizontal axis.*
*For more information please refer to the user manual
Control
This projector comes with a variety of options that allow you to remotely control and monitor the projector from a distance.
• RS232
Optoma projectors are equipped with a comprehensive collection of RS232 commands, which makes it easy to operate and control them using any type of control system.
• AMX compatible
The projector is designed with a dynamic discovery protocol that enables simple installation when used in conjunction with AMX control systems.
• Crestron RoomView
The RoomView® software compatibility allows you to remotely power on/off, monitor, manage and control up to 250 projectors simultaneously from any computer. This feature provides you with a convenient and efficient way to manage multiple projectors in a large facility, such as a school or a corporate office.
• Extron IPLink compatible
This feature enables straightforward installation when using with Extron control systems, this allow the user to integrate the projector with other devices or systems that are under the Extron control.
PJLink
The projector has a built-in system called PJLink which makes it easy to connect and control it with other systems that are compatible. This feature allows you to control the projector from a distance using special software and systems.
Telnet
This model can be controlled through Telnet, making it compatible and easy to install with Telnet-enabled control systems.
Full 3D
The Optoma projector can showcase true 3D imagery from a wide range of sources, including 3D graphics cards, 3D broadcasting and the newest generation of 3D media servers.
Integrated speaker
Exceptional sound quality is delivered through the powerful built-in speaker, eliminating the need for costly external speakers and simplifying the setup process.
USB-Power
Power an HDMI dongle, such as the Google Chromecast, using the USB-A port.
AV mute
Maintain control over your presentation with AV mute feature, which allows you to blank the screen and direct your audience's attention away from it when not in use.
Quick resume
With this feature enabled, the projector will automatically turn back on in the event of an accidental shut-off.
Auto power off
An "auto power off" feature is available in the projector that aims to save energy by turning it off automatically if the projector remains unused for a certain period of time.
Direct power on
Instant start-up is enabled in the projector, enabling it to turn on automatically as soon as power is supplied, eliminating the need to manually activate it via the remote control or keypad. This feature is particularly useful in rooms where a central power switch is present.
Direct power off
Get faster power-down times with Optoma ZH406! Forget about waiting for your projector to cool down before turning it off - now you can conveniently power it off immediately or directly at the main power source. Enjoy fast and efficient cooling while saving energy with this smart and powerful projector. Make your movie nights, and presentations, and work more efficiently with Optoma ZH406 today!
24/7 operation
Optoma projectors have been engineered to run continuously for 24 hours while being positioned in their standard orientation. This feature makes them ideal for applications where extended usage is necessary. Note that these projectors are subject to 24-hour terms and conditions.
The Optoma projector is designed for 24/7 operation, and the standard lamp warranty applies. However, the projector warranty is based on typical business hours of usage. To ensure optimal performance, Optoma advises turning off the projector or placing it in standby mode for 30 minutes every 24 hours in order to extend the life of the lamp.
Accessories
2 Year Projector parts and labor | 5-year or 12000 hour light source
Optoma 3 Year Limited Projector Extended Warranty
Optoma 5 Year Limited Projector Extended Warranty
OCM815B
OCM815W
OCM818B-RU
Compatible models
Optoma Management Suite
Optoma Management Suite Cloud
Case studies
Optoma has once again succeeded in capturing the attention of audiences with its record-breaking holographic cinema experience.
For additional information, please click the link: https://www.optomausa.com/case-studies/optoma-once-again-captivates-audiences-with-the-worlds-largest-holographic-cinema
Specification
Display/image
|
Display technology |
DLP™ |
|
Resolution |
1080p Full HD (1920x1080) |
|
Brightness |
4,500 lumens |
|
Contrast ratio |
300,000:1 |
|
Native aspect ratio |
16:9 |
|
Aspect ratio - compatible |
4:3 |
|
Keystone correction - horizontal |
+/-30° |
|
Keystone correction - vertical |
+/-30° |
|
Has vertical auto keystone correction |
Yes |
|
Displayable colors (millions) |
1073.4 |
|
Horizontal scan rate |
15.375 ~ 91.146 Khz |
|
Vertical scan rate |
50 ~ 85 Hz (120Hz for 3D)Hz |
|
Uniformity |
80% |
|
Screen size |
20.2" ~ 320.4" diagonal |
Lamp info
|
Light source type |
Laser |
|
LASER life |
30,000 hours |
Optical
|
Throw ratio |
1.4:1 ~ 2.24:1 |
|
Projection distance |
39.37" - 393.7" |
|
Zoom |
1.6 |
|
Zoom type |
Manual |
|
Focal length (mm) |
20.91mm~32.62mm/0.823"~1.284" |
|
Lens shift |
Vertical: +/-16% |
|
Native offset |
100% |
|
Lens shift |
Yes |
Connectivity
|
Connections |
Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 2 x Audio 3.5mm, 1 x Mic 3.5mm, 1 x Composite video |
|
Outputs 1 x VGA, 1 x Audio 3.5mm, 1 x USB-A power 1.5A |
|
|
Control 1 x RS232, 1 x RJ45, 1 x 12V trigger, 1 x micro USB service, 1 x 3D sync |
General
|
Noise level (typical) |
30dB |
|
Noise level (max) |
32dB |
|
PC compatibility |
UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
|
2D compatibility |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz) |
|
3D compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
|
3D |
Full 3D |
|
Security |
Security bar, Kensington Lock, Password protected interface |
|
IP rating |
IP6X |
|
OSD / display languages |
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
|
24/7 operation |
Yes |
|
Operating conditions |
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85% |
|
Remote control |
Backlit ProAV remote |
|
Heat dissipation |
918BTU/hour |
|
Speaker count |
2 |
|
Watts per speaker |
10W |
|
In the box |
AC power cord |
|
Optional wireless models |
UHDCast Pro, QuickCast Bundle, QuickCast starter kit |
Networking
|
LAN - control |
Yes |
Power
|
Power supply |
100V ~ 240V, 50-60Hz |
|
Power consumption (standby) |
<0.5W |
|
Power consumption (min) |
206W |
|
Power consumption (max) |
269W |
Weight and dimensions
|
Dimensions (W x D x H) |
13.27" x 10.43" x 4.82" |
|
Gross weight |
13.71 lbs |
|
Net weight |
10.03 lbs |
Downloads
Manuals
Datasheets
RS232
Basic user manuals
CAD
Datasheets
Software: Logo capture tool.zip
Distance calculator
Distance Calculator
Original: $2,549.00
-65%$2,549.00
$892.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description

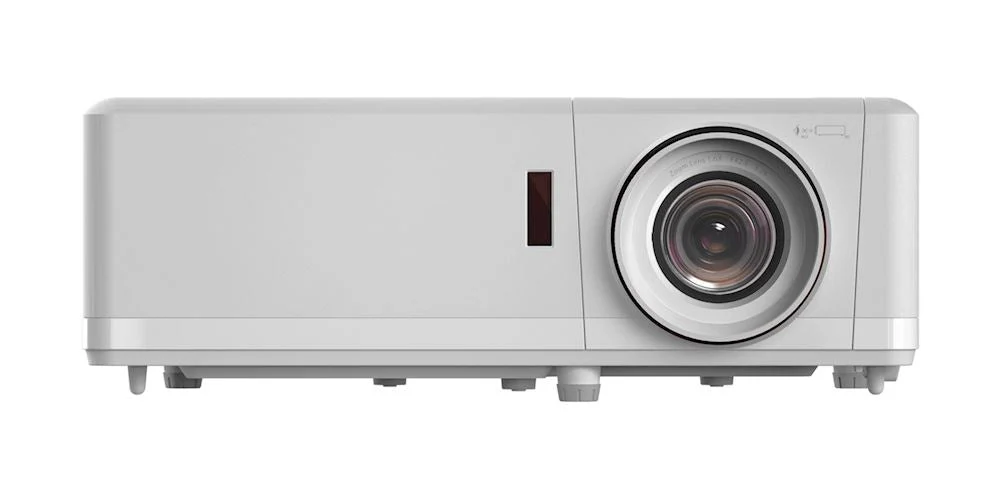

Optoma ZH406
This product is designed to be compact, lightweight and require very little maintenance.
Introducing the Optoma ZH406 - a remarkable projector that is perfect for any room. With its razor-sharp, 1080p projection and a powerful laser light source, you can brighten up your space with up to 4,500 lumens of light. The laser light source also ensures up to 30,000 hours of low-cost and virtually maintenance-free operation, eliminating the need for frequent lamp and filter replacements.
This projector is designed with versatility in mind, featuring a compact size, low weight, and quiet operation, making it ideal for classrooms, meeting rooms, board rooms, and digital signage. Additionally, it offers four corner correction, 360° and portrait mode operation, enabling flexible installations to suit your unique needs.
The Optoma ZH406 also boasts multiple connectivity options, including HDMI and VGA inputs, which allow you to connect to high-quality 4K HDR digital video or legacy analog video sources. Furthermore, LAN and RS-232 enable control via Crestron, Extron, AMX, or Telnet. The projector also features stereo speakers with 15W per channel, providing rich audio for all-in-one applications.
Features
DuraCore
Optoma's DuraCore technology lets the product have a long lifespan. It's because of the advanced cooling system for the laser diode and a design that keeps dust away.
IP6X Airtight optical engine
The device has undergone independent testing and has been certified to meet IEC standard 60529, with an IP6X rating for dust resistance. Its exceptional dust protection and superior brightness provide industry-leading durability, making it suitable for continuous, maintenance-free use in demanding environments.
Full HD 1080p
With 1080p resolution, you can enjoy crisp and clear images from high-definition sources without the need for downscaling or compression. This makes it ideal for viewing Blu-ray movies, watching HD television programming, and playing video games.
HDR compatible
Optoma HDR compatible projectors are designed to deliver a more immersive viewing experience by utilizing HDR meta data. With these projectors, you will be able to see a greater level of detail and texture in the images on the screen. The objects will appear more lifelike and solid, and the added detail will create a greater sense of depth, making it feel like you are looking through a window.
Superior contrast
Experience a more dynamic and detailed image with Optoma DLP projectors, which feature high contrast technology. These projectors offer brighter whites and deeper blacks than many comparable options, bringing your images to life and making text appear sharp and clear. This makes them well-suited for a wide range of applications, including business and education.
Amazing color
Optoma projectors offer versatile and consistent color performance, making them suitable for any type of content and setting. Whether you need accurate sRGB colors for natural-looking images or bold and punchy hues for presentations, our projectors have a display mode that will meet your specific needs. These features make Optoma projectors an ideal choice for a variety of graphic and video presentations.
Vertical Lens Shift
Experience a world of versatility with the Optoma ZH406 projector. Enjoy maximum flexibility with the vertical lens shift, allowing you to install the projector in any position and to choose from a wide range of screen sizes. Feel confident that you can get the best possible viewing experience, every time.
Four corner correction
To make your image look straight and square you can use the keystone adjustment. This adjustment allows you to change the shape of the image by adjusting each corner of it. This is useful when you want to put many pictures on top of each other, or if you want to project the image on a wall that is not straight. Also it is helpful when you want to project your image on a wall at an angle.
Auto keystone
Auto Keystone automatically fixes the distorted shape of the image when the projector is not directly in front of the screen, resulting in a straight and aligned image*.
*Auto keystone only adjusts the image in the vertical plane.
Portrait projection
This feature is perfect for digital signage, as it allows you to rotate your projector by 90 degrees and project a portrait-oriented image instead of landscape.
360 projection*
With this feature, you can project the images in any direction around the projector, as it allows a full 360-degree rotation along the horizontal axis.*
*For more information please refer to the user manual
Control
This projector comes with a variety of options that allow you to remotely control and monitor the projector from a distance.
• RS232
Optoma projectors are equipped with a comprehensive collection of RS232 commands, which makes it easy to operate and control them using any type of control system.
• AMX compatible
The projector is designed with a dynamic discovery protocol that enables simple installation when used in conjunction with AMX control systems.
• Crestron RoomView
The RoomView® software compatibility allows you to remotely power on/off, monitor, manage and control up to 250 projectors simultaneously from any computer. This feature provides you with a convenient and efficient way to manage multiple projectors in a large facility, such as a school or a corporate office.
• Extron IPLink compatible
This feature enables straightforward installation when using with Extron control systems, this allow the user to integrate the projector with other devices or systems that are under the Extron control.
PJLink
The projector has a built-in system called PJLink which makes it easy to connect and control it with other systems that are compatible. This feature allows you to control the projector from a distance using special software and systems.
Telnet
This model can be controlled through Telnet, making it compatible and easy to install with Telnet-enabled control systems.
Full 3D
The Optoma projector can showcase true 3D imagery from a wide range of sources, including 3D graphics cards, 3D broadcasting and the newest generation of 3D media servers.
Integrated speaker
Exceptional sound quality is delivered through the powerful built-in speaker, eliminating the need for costly external speakers and simplifying the setup process.
USB-Power
Power an HDMI dongle, such as the Google Chromecast, using the USB-A port.
AV mute
Maintain control over your presentation with AV mute feature, which allows you to blank the screen and direct your audience's attention away from it when not in use.
Quick resume
With this feature enabled, the projector will automatically turn back on in the event of an accidental shut-off.
Auto power off
An "auto power off" feature is available in the projector that aims to save energy by turning it off automatically if the projector remains unused for a certain period of time.
Direct power on
Instant start-up is enabled in the projector, enabling it to turn on automatically as soon as power is supplied, eliminating the need to manually activate it via the remote control or keypad. This feature is particularly useful in rooms where a central power switch is present.
Direct power off
Get faster power-down times with Optoma ZH406! Forget about waiting for your projector to cool down before turning it off - now you can conveniently power it off immediately or directly at the main power source. Enjoy fast and efficient cooling while saving energy with this smart and powerful projector. Make your movie nights, and presentations, and work more efficiently with Optoma ZH406 today!
24/7 operation
Optoma projectors have been engineered to run continuously for 24 hours while being positioned in their standard orientation. This feature makes them ideal for applications where extended usage is necessary. Note that these projectors are subject to 24-hour terms and conditions.
The Optoma projector is designed for 24/7 operation, and the standard lamp warranty applies. However, the projector warranty is based on typical business hours of usage. To ensure optimal performance, Optoma advises turning off the projector or placing it in standby mode for 30 minutes every 24 hours in order to extend the life of the lamp.
Accessories
2 Year Projector parts and labor | 5-year or 12000 hour light source
Optoma 3 Year Limited Projector Extended Warranty
Optoma 5 Year Limited Projector Extended Warranty
OCM815B
OCM815W
OCM818B-RU
Compatible models
Optoma Management Suite
Optoma Management Suite Cloud
Case studies
Optoma has once again succeeded in capturing the attention of audiences with its record-breaking holographic cinema experience.
For additional information, please click the link: https://www.optomausa.com/case-studies/optoma-once-again-captivates-audiences-with-the-worlds-largest-holographic-cinema
Specification
Display/image
|
Display technology |
DLP™ |
|
Resolution |
1080p Full HD (1920x1080) |
|
Brightness |
4,500 lumens |
|
Contrast ratio |
300,000:1 |
|
Native aspect ratio |
16:9 |
|
Aspect ratio - compatible |
4:3 |
|
Keystone correction - horizontal |
+/-30° |
|
Keystone correction - vertical |
+/-30° |
|
Has vertical auto keystone correction |
Yes |
|
Displayable colors (millions) |
1073.4 |
|
Horizontal scan rate |
15.375 ~ 91.146 Khz |
|
Vertical scan rate |
50 ~ 85 Hz (120Hz for 3D)Hz |
|
Uniformity |
80% |
|
Screen size |
20.2" ~ 320.4" diagonal |
Lamp info
|
Light source type |
Laser |
|
LASER life |
30,000 hours |
Optical
|
Throw ratio |
1.4:1 ~ 2.24:1 |
|
Projection distance |
39.37" - 393.7" |
|
Zoom |
1.6 |
|
Zoom type |
Manual |
|
Focal length (mm) |
20.91mm~32.62mm/0.823"~1.284" |
|
Lens shift |
Vertical: +/-16% |
|
Native offset |
100% |
|
Lens shift |
Yes |
Connectivity
|
Connections |
Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 2 x Audio 3.5mm, 1 x Mic 3.5mm, 1 x Composite video |
|
Outputs 1 x VGA, 1 x Audio 3.5mm, 1 x USB-A power 1.5A |
|
|
Control 1 x RS232, 1 x RJ45, 1 x 12V trigger, 1 x micro USB service, 1 x 3D sync |
General
|
Noise level (typical) |
30dB |
|
Noise level (max) |
32dB |
|
PC compatibility |
UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
|
2D compatibility |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz) |
|
3D compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
|
3D |
Full 3D |
|
Security |
Security bar, Kensington Lock, Password protected interface |
|
IP rating |
IP6X |
|
OSD / display languages |
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
|
24/7 operation |
Yes |
|
Operating conditions |
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85% |
|
Remote control |
Backlit ProAV remote |
|
Heat dissipation |
918BTU/hour |
|
Speaker count |
2 |
|
Watts per speaker |
10W |
|
In the box |
AC power cord |
|
Optional wireless models |
UHDCast Pro, QuickCast Bundle, QuickCast starter kit |
Networking
|
LAN - control |
Yes |
Power
|
Power supply |
100V ~ 240V, 50-60Hz |
|
Power consumption (standby) |
<0.5W |
|
Power consumption (min) |
206W |
|
Power consumption (max) |
269W |
Weight and dimensions
|
Dimensions (W x D x H) |
13.27" x 10.43" x 4.82" |
|
Gross weight |
13.71 lbs |
|
Net weight |
10.03 lbs |
Downloads
Manuals
Datasheets
RS232
Basic user manuals
CAD
Datasheets
Software: Logo capture tool.zip
Distance calculator
Distance Calculator
