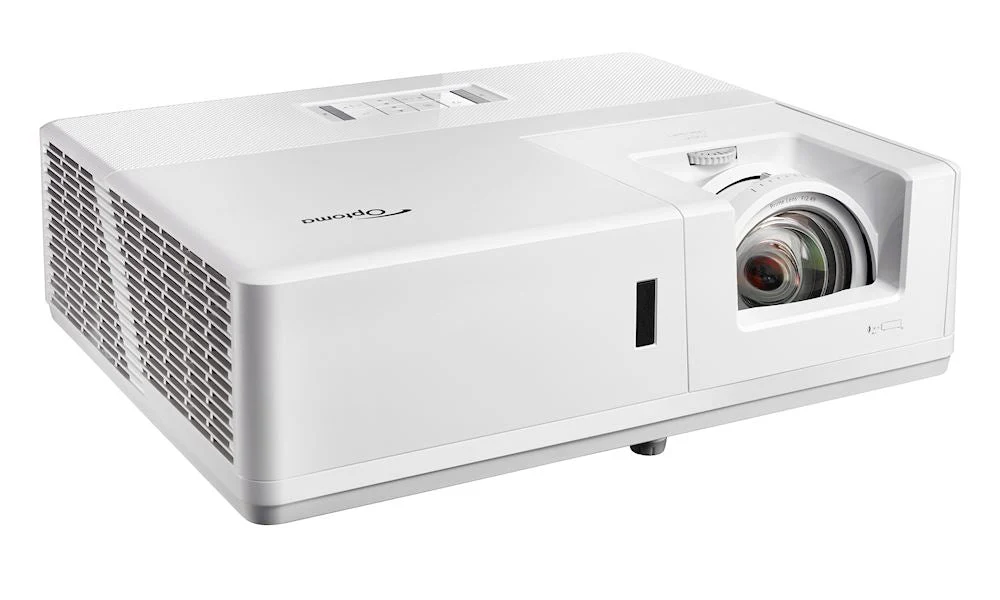

The ZU606TST-W, the smallest projector in its class, boasts an impressive package of features. It offers a remarkable 6,000 lumens of high brightness, 4K and HDR compatibility, and incorporates long-life laser technology, a 0.79:1 throw ratio, vertical lens shift, and 10W speakers for minimal maintenance requirements.

Versatile and well-suited for various applications, the ZU606TST-W excels in delivering clean and vibrant images, making it a prime choice for extensive settings like expansive venues, educational institutions, lecture halls, museums, and places of worship.

Incorporating the added convenience of HDBaseT and LAN for enhanced control, this projector stands as an economical and dependable fit-and-forget solution.

• 6,000 lumens
• WUXGA (1920 x 1200)
• 0.79:1 throw ratio
• 4K HDR input, HDBaseT



Optoma ProScene ZU606TST-W 3D Ready Short Throw DLP Projector - 16:10 - White

1920 x 1200 - Front, Ceiling, Rear - 1080p - 20000 Hour Normal Mode - 30000 Hour Economy Mode - WUXGA - 300,000:1 - 6000 lm - HDMI - USB - 3 Year Warranty

Features

• Bright WUXGA short throw laser projector - 6,000 lumens
• 30,000 hours maintenance-free laser light source at full brightness
• 4K and HDR compatible
• HDBaseT connectivity



HDR compatible

Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life-like and the extra detail creates a greater sense of depth. It’s like looking through a window.



DuraCore

Industry leading long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.



HDBaseT™

Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.



IP6X Airtight optical engine

Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.



Quick resume

This feature allows the projector to be instantly powered on again, if it is accidentally switched off.



Vertical Lens Shift

Simplify installation with vertical lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.



PJLink

PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.



Integrated speaker

A built-in speaker offers excellent audio support and an easy setup without the need for costly external speakers



Portrait projection

Ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image.



MHL

Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos and share photos on the big screen.



Telnet

This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.



Superior contrast

Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.



Four corner correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.



Auto keystone

Auto keystone automatically adjusts the trapezoid effect to create a perfectly aligned image when a projector is off-axis, or the desired projection surface is not perfectly flat.

*Auto keystone only adjusts the image in the vertical plane.

Control

Featuring a wide range of options you can control and monitor the projector remotely.

• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

• Crestron RoomView
Using the compatible RoomView^® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

• Extron IPLink compatible
Allows for easy installation with Extron control systems



USB-Power

Use the USB-A port to power an HDMI dongle, such as Google Chromecast.



Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.



Integrated speaker

A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.



USB-Power

Use the USB-Power to power an HDMI dongle.



AV mute

Stay in control of your presentation with AV mute. Direct your audience's attention away from the screen by blanking the image when not needed.



Auto power off

There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used



Direct power on

The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.



Direct power off

Power off your projector immediately or directly at the main power source. This means you don’t have to wait for the projector to cool down before turning it off.



24/7 operation

Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.



Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles.



Accessories

• Warranty - 3 Year Projector parts and labor ^| 5-year or 12000 hour light source
• Warranty - Optoma 5 Year Limited ProAV Projector Extended Warranty
• QuickCast Pro 4K Kit
• OCM815B
• OCM815W
• OCM818B-RU
• OWM3000ST



Compatible models





Specification

Display/image

Display technology	DLP™
Resolution	WUXGA (1920x1200)
Brightness	6,000 lumens
Contrast ratio	300,000:1
Native aspect ratio	16:10
Aspect ratio - compatible	4:3,16:9,16:10
Keystone correction - horizontal	+/-30°
Keystone correction - vertical	+/-30°
Has vertical auto keystone correction	Yes
Displayable colors (millions)	1073.4
Horizontal scan rate	15.375~91.146 Khz
Vertical scan rate	24~ 85 Hz (120Hz for 3D)Hz
Uniformity	85%
Screen size	29.38" ~ 305.6" diagonal



Lamp info

Light source type	Laser
LASER life	30,000 hours



Optical

Throw ratio	0.79:1
Projection distance	19.69" - 204.72"
Zoom type	Fixed
Focal length (mm)	11.66mm/0.459"
Lens shift	Vertical -100 ~ 120%
Native offset	100%
Lens shift	Yes



Connectivity

Connections

Inputs 1 x HDMI 1.4a 3D support, 1 x HDMI 1.4a 3D support + MHL, 2 x VGA, 1 x Composite video, 1 x Mic 3.5mm, 1 x Audio 3.5mm, 1 x HDBaseT, 1 x S-Video Outputs 1 x VGA, 1 x USB-A power 1.5A, 1 x Audio 3.5mm Control 1 x RS232, 1 x 12V trigger, 1 x RJ45



General

Noise level (typical)	33dB
Noise level (max)	38dB
PC compatibility	UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility	NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz), 2160p(24/50/60Hz)
3D compatibility	Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D	Full 3D
Security	Security bar, Kensington Lock, Password protected interface
IP rating	IP6x
OSD / display languages	25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation	Yes
Operating conditions	5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
Remote control	Backlit ProAV remote
Heat dissipation	1,328BTU/hour
Speaker count	2
Watts per speaker	10W
In the box	AC power cord Remote control 2x AAA batteries Basic user manual
Optional wireless models	HDCast Pro, QuickCast Bundle, QuickCast starter kit



Networking

LAN - control	Yes
LAN	Yes



Power

Power supply	100V ~ 240V ± 10%, 50-60Hz
Power consumption (standby)	<0.5W
Power consumption (max)	389W



Weight and dimensions

Dimensions (W x D x H)	14.72" x 11.89" x 4.61"
Gross weight	17.2 lbs
Net weight	12.13 lbs
